Product details


« Back to Listing


Door Contact


Brand Name: Vision
Product Identifier: ZD2112JP-5
Product Version: HW: 5 FW: 23.18
Z-Wave Certification Number: ZC10-17125897
Z-Wave Certification Date: 11/7/2017
Use In: Japan
Z-Wave Protocol Implementation Conformance Statement:   View    Download

The ZD2112-5 Door and Window sensor is used in any Z-Wave network to detect the opening or closing of a door or window. Special Design can fit most of door/window frame. The primary sensing element is a magnetic reed switch, the ZD2112-5 is supplied with the sensor, sensor mounting bracket and the trigger magnet. An additional set of sensor inputs are provided through a 2 position screw terminal and can be used to expand the sensor capability to multiple inputs. The ZD2112-5 is powered by 2 x AAA Battery (supplied with unit, battery life is more than 2 years) and is intended for indoor use only. The ZD2102-5 features tamper proof switch, low battery warning and can be firmware updated over the air.

Product Features:   View Features
Additional Special Features:
Z-Wave Plus Version: 1
Security S2 Classes: S2 Authenticated, S2 Unauthenticated
SmartStart Compatible: Yes
Manufacturer Provided Product Manual: Download
Association Capabilities:   View Associations
Z-Wave hardware platform: ZM5202
Z-Wave version: 6.81.00
Z-Wave library type: Enhanced 232 Slave
Z-Wave Device Type: Notification Sensor
Z-Wave Role Type: Reporting Sleeping Slave
Product Type ID: 0x2001
Product ID: 0x01A3
Network Management Instructions:   View Network Management Info
Command Classes: View Command Classes
Associated Categories:   Sensors
Download Product Data in XML Format: Download

See also:


1 / 2

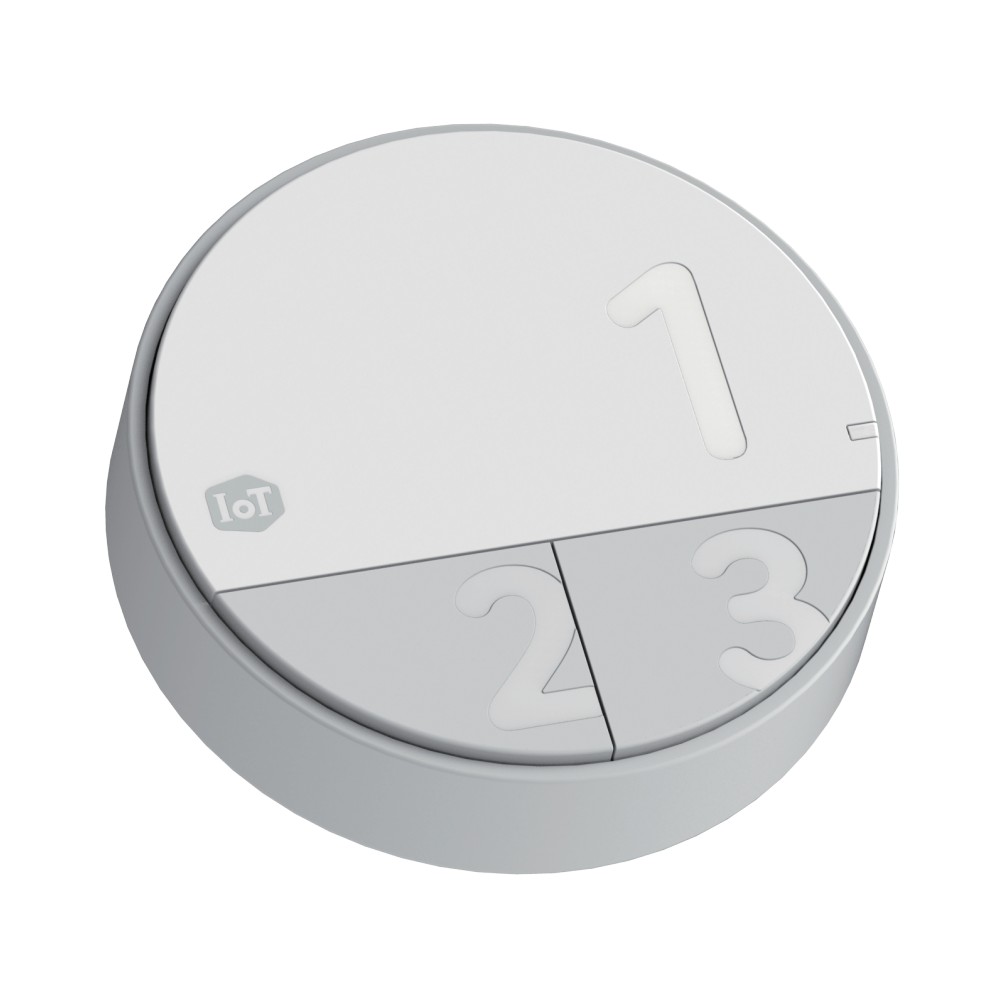

Product Picture
