Door/Window Sensor

Product Identifier: 7A-SS-VE-H0
Product Version: HW: 32 FW: 1.08
Z-Wave Certification Number: ZC10-18036058
Z-Wave Certification Date: 3/12/2018
Use In: U.S. / Canada / Mexico
Z-Wave Protocol Implementation Conformance Statement:   View    Download

The LEEDARSON Door/Window Sensor is a wireless sensor that is powered by a CR2 battery. The door/window sensor lets you know when a door or window is opened, or closed, and can trigger different actions in response to that open action or close action. This sensor uses the Z-Wave communication module to connect with Z-Wave Gateway. This device can be adapted to use in the EU(868.42Mhz) and US. The door/window sensor supports the Over The Air (OTA) feature for the product’s firmware upgrade. If you want your Door/Window Sensor to be a security device that uses secure/encrypted messages to communicate in a Z-Wave network, then a security enabled Z-Wave controller/gateway is needed.

Product Features:   View Features
Z-Wave Plus Version: 1
Security S2 Classes: S2 Authenticated, S2 Unauthenticated
SmartStart Compatible: No
Manufacturer Provided Product Manual: Download
Association Capabilities:   View Associations
Configuration Capabilities:   View Configuration Parameters
Z-Wave hardware platform: ZM5101
Z-Wave version: 6.71.01
Z-Wave library type: Enhanced 232 Slave
Z-Wave Device Type: Notification Sensor
Z-Wave Role Type: Reporting Sleeping Slave
Product Type ID: 0x0200
Product ID: 0x0008
Network Management Instructions:   View Network Management Info
Command Classes: View Command Classes
Associated Categories:   Sensors
Download Product Data in XML Format: Download

See also:

1 / 2

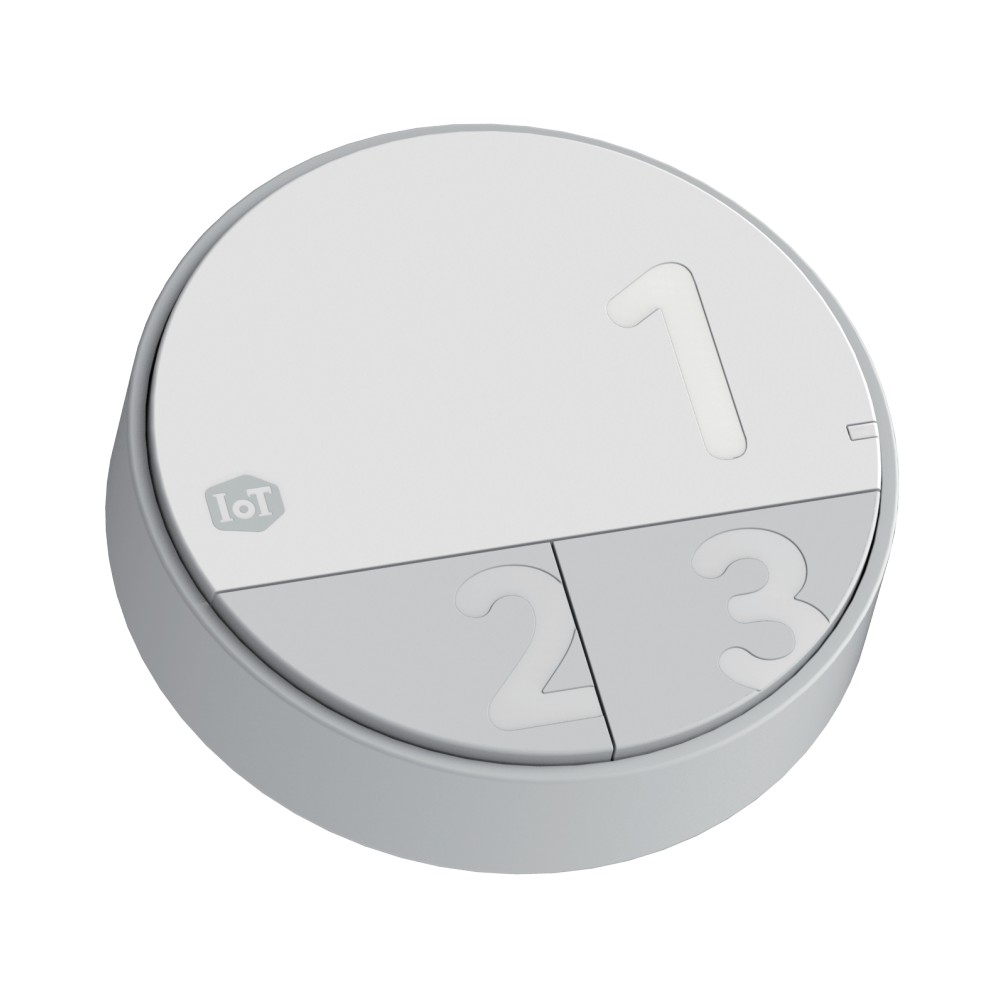

Product Picture
