Z-Wave Products

There are over 4059 interoperable Z-Wave products throughout the world, and over 94 million Z-Wave products have been sold since our beginnings in 2001. All of them work together regardless of brand, because they're all based on the common Z - Wave standard.Browse our Product Finder to see what Z -Wave can do for you.

Product details


« Back to Listing


RGBW DIMMER ZEN31


Brand Name: Zooz
Product Identifier: ZEN31
Product Line: Lighting
Product Version: HW: 2 FW: 5.00:05.00:01.00
Z-Wave Certification Number: ZC10-19126818
Z-Wave Certification Date: 12/9/2019
Use In: U.S. / Canada / Mexico
Z-Wave Protocol Implementation Conformance Statement:   View    Download

FEATURES:
- Manual or Z-Wave on/off, brightness, and RGBW color control
- Perfect for programming your existing RGBW LED strip
- Energy monitoring in live mode and over time
- Double tap to full brightness feature + optional scene control
- Remembers and restores on/off status after power failure
- Built-in Z-Wave Plus signal repeater to extend network range
- S2 security protocol and AES-128 bank-grade encryption

SPECIFICATIONS:
- Model Number: ZEN31
- Z-Wave Signal Frequency: 908.42 MHz
- Power: 12 / 24 V DC (Do NOT connect to 120 V AC high-voltage power!)
- Maximum Load: 10 A total between all channels (6 A per channel max); 120 W total when powered by 12 V DC / 240 W total when powered by 24 V DC
- Range: Up to 100 feet line of sight
- Operating Temperature: 32-104° F (0-40° C)
- Installation and Use: Indoor only
- Dimensions: 1.67” x 1.5” x 0.69”

Product Features:   View Features
Z-Wave Plus Version: 1
SmartStart Compatible: Yes
Manufacturer Provided Product Manual: Download
Association Capabilities:   View Associations
Configuration Capabilities:   View Configuration Parameters
Z-Wave hardware platform: ZM5101
Z-Wave version: 6.81.03
Z-Wave library type: Enhanced 232 Slave
Z-Wave Device Type: Multilevel Switch - Color Tunable Multilevel
Z-Wave Role Type: Always On Slave
Product Type ID: 0x0902
Product ID: 0x2000
Network Management Instructions:   View Network Management Info
Command Classes: View Command Classes
Associated Categories:   Dimming Lighting Devices    All Lighting Devices
Download Product Data in XML Format: Download

See also:


1 / 2

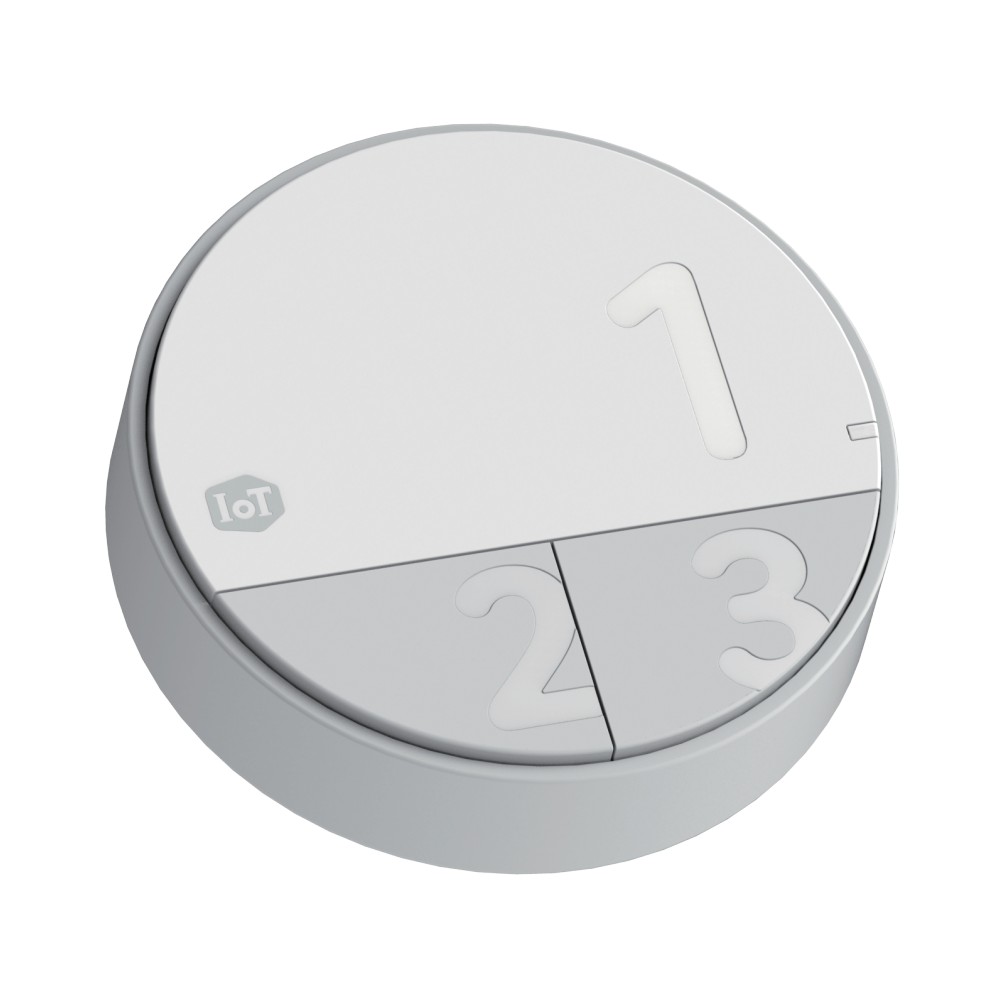

Product Image
