Scenes Controller


Brand Name: Zooz
Product Identifier: ZEN32
Product Line: Line A
Product Version: HW: 1 FW: 1.00
Z-Wave Certification Number: ZC12-21030205
Z-Wave Certification Date: 3/23/2021
Use In: U.S. / Canada / Mexico
Z-Wave Protocol Implementation Conformance Statement:   View    Download

FEATURES:
- Switch button: 15 A relay for Z-Wave on/off control
- 4 remote control buttons: trigger scenes and control other
devices in your Z-Wave network from this switch
- NEW 700 series Z-Wave chip for better range and faster control
- Direct 3-Way: works with regular on/off switches in a 3-way
- Scene control: trigger actions with multi-tap (select hubs only)
- Smart bulb mode: disable relay and control the light via Z-Wave
- Adjustable LED indicator in 4 colors and 3 brightness levels
- S2 Security and SmartStart for easier inclusion

SPECS:
- Model Number: ZEN32
- Z-Wave Signal Frequency: 908.42 MHz
- Power: 120 VAC, 60 Hz
- Maximum Load: 150W LED, 960W Incandescent, 1800W (15A)
Resistive, 3A motor (DON’T use with receptacles)
- Range: Up to 500 feet line of sight
- Operating Temperature: 32-104° F (0-40° C)
- Installation and Use: Indoor only

Product Features:   View Features
Other Special Features:
Z-Wave Plus Version: 2
Security S2 Classes: S2 Authenticated, S2 Unauthenticated
SmartStart Compatible: Yes
Manufacturer Provided Product Manual: Download
Association Capabilities:   View Associations
Configuration Capabilities:   View Configuration Parameters
Z-Wave hardware platform: ZGM130
Z-Wave version: 7.13.6
Z-Wave library type: Enhanced 232 Slave
Z-Wave Device Type: Binary Switch
Z-Wave Role Type: Always On Slave
Product Type ID: 0xBB00
Product ID: 0xBB08
Network Management Instructions:   View Network Management Info
Command Classes: View Command Classes
Associated Categories:   On/Off Switches/Devices    All Lighting Devices
Download Product Data in XML Format: Download

See also:


1 / 2

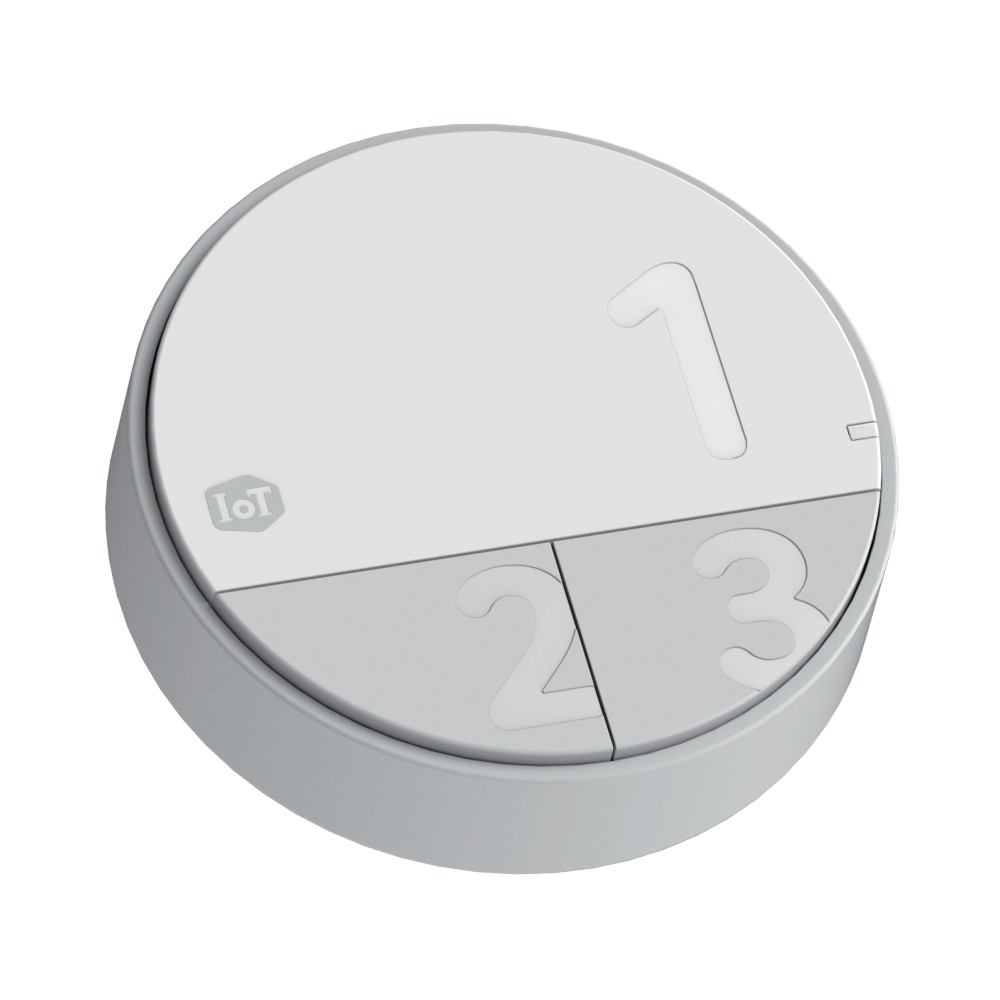

Product Image
