Product Recognition | |
|---|
Certification Number | ZC10-21057025 |
|---|

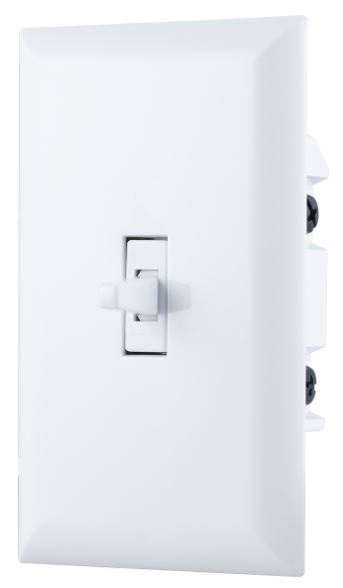

Name | 0-10V In-Wall Smart Dimmer (ICP) (120/277) |
|---|
Short Description | 0-10V In-Wall Toggle Smart Dimmer with QuickFit and SimpleWire enhancements. This device includes low voltage wiring designs for use with 0-10V commercial lighting. All of this is coupled with Z-Wave S2 and SmartStart allows for effortless installation while being safer than ever! |
|---|
Long Description | 0-10V In-Wall Toggle Smart Dimmer with QuickFit and SimpleWire enhancements. Revolutionary QuickFit design features a housing depth that is up to 20 percent smaller than the previous Z-Wave models. This reduced size coupled with the elimination of heat taps provides a better fit in older style boxes and multi-gang configurations. SimpleWire technology allows line and load to automatically be configured with auto-sensing line-load terminals. This device includes low voltage wiring designs for use with 0-10V commercial lighting. All of this is coupled with Z-Wave S2 and SmartStart allows for effortless installation while being safer than ever! |
|---|
Brand | Jasco |
|---|
Product Identifier | 43107 / ZW3015 |
|---|
Product Line | Wireless Lighting Control |
|---|
OEM Version | HW: 255 FW: 5.54 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.82.00 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Light Dimmer Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0063 |
|---|
Product Type ID | 0x4944 |
|---|
Product ID | 0x3332 |
|---|
User Icon | 0x0600 |
|---|
Installer Icon | 0x0604 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, Dimming Lighting Devices, On/Off Switches/Devices |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_APPLICATION_STATUS | Application Status | 0x22 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_SWITCH_MULTILEVEL_V4 | Switch Multilevel V4 | 0x26 | 4 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_CENTRAL_SCENE_V3 | Central Scene V3 | 0x5B | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | |
|
|---|
Features | Feature | Values |
|---|
Switch Type | | Z-Wave Scene Type | | Neutral Wire Required | | Switch Load Capacity Volt-Ampere | Value |
|---|
960VA(120VAC)/ 1385VA(277VAC) |
| Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
1 | 5 | 0 | Lifeline | Association Group 1 supports Lifeline, Multi-level Switch report | 2 | 5 | 0 | Single Press | Association Group 2 supports Basic Set and is controlled with the local load | 3 | 5 | 0 | Double Press | Association Group 3 supports Basic Set and is controlled by double pressing the ON or OFF button |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Flag Advanced | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
3 | LED Indication | Adjust the LED status to default, invert, always OFF or always ON | 1 | Yes | 1 | 0 | 3 | 0 | From | To | Description |
|---|
0 | 0 | Device is ON, LED is OFF; device is Off, LED is ON | 1 | 1 | Device is ON, LED is ON; device is Off, LED is OFF | 2 | 2 | LED always off | 3 | 3 | LED always ON |
| 6 | Dim Rate | Adjust the speed at which the ramps to a specific value other than 0 and FF | 1 | | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | Dim up/down the light to the specified level quickly by command except value 0 and FF | 1 | 1 | Dim up/down the light to the specified level slowly by command except value 0 and FF |
| 31 | Maximum Brightness Threshold | Set the maximum brightness level | 1 | Yes | 1 | 0 | 99 | 99 | From | To | Description |
|---|
0 | 99 | Set the maximum brightness threshold when manually or remotely controlled |
|
|
|---|
Texts | ID | Description | Value |
|---|
2 | Classic Exclusion | 1. Follow the instructions for your Z-Wave certified controller to remove a device from the Z-Wave network.
2. Once the controller is ready to remove your device, press up and release the toggle. | 5 | Factory Reset Procedure | Quickly press ON (up) button three times then immediately press the OFF (down) button three times. | 8 | Where to find S2 DSK on product | The controller’s app will indicate if it discovers the switch. If prompted by the controller to enter the S2 security code, refer to the QR code/security number on the side of the box or the QR code label on the product (see Figure 1). | 1 | Classic Inclusion | 1. Follow the instructions for your Z-Wave certified controller to add a device to the Z-Wave network.
2. Once the controller is ready to add your device, press up and release the toggle.
3. The controller’s app will indicate if it discovers the switch. If prompted by the controller to enter the S2 security code, refer to the QR code/security number on the side of the box or the QR code label on the product (see Figure 1). Enter the 5-digit code |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
