Certification Number | ZC10-19046452 |
|---|

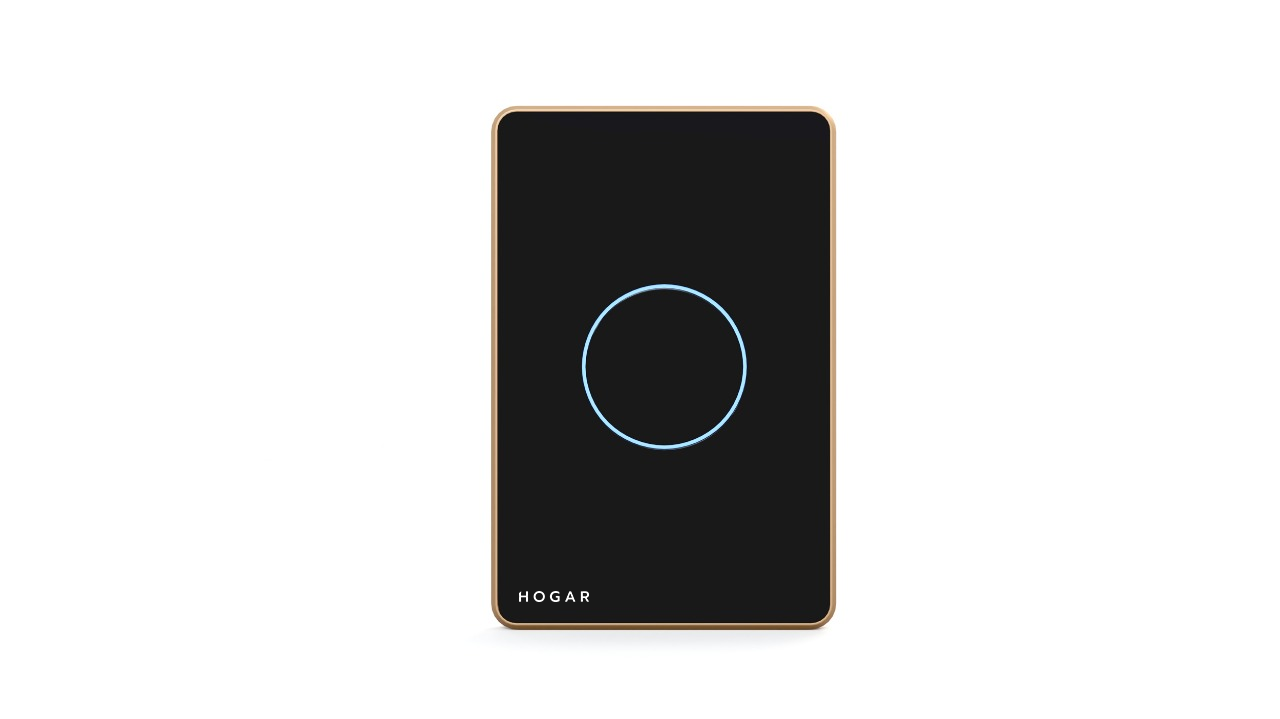

Name | 1 Touch Panel Dimmer |
|---|
Short Description | The Hogar 1 Touch Panel Dimmer is perfect for anywhere you would like to switch the light on or off with the added advantage of pressing it for longer and dimming the light from 100 % to 10% or vice versa. The smart touch dimmer is compatible with all types of incandescent bulbs and dimmable LEDs. |
|---|
Long Description | Featuring a stunning glass face with an advanced capacitive touch sensor, all you need to do is just use a finger for full dimming control and for turning your lights on and off. Tap the back-lit touch button on the panel to switch on or off, and long-press the same button to smoothly dim the lights. This 1 Touch Panel Dimmer ensures that the brightness intensity set is achieved without any loss.
The Hogar 1 Touch Panel Dimmer can operate either independently or as a part of the Hogar smart home automation system, and even with any other certified Z-Wave home automation system. It is an extremely easy-to-use panel that installs in a standard US 2 gang box. Its operating capabilities include a bi-stable mode, a relay mode or touch pulse mode for scene control with a maximum load current of 3 amp. It communicates with the Hogar smart home automation system using the Z-Wave wireless communication protocol. |
|---|
Brand | Hogar Controls |
|---|
Product Identifier | HTP-1SD |
|---|
OEM Version | HW: 255 FW: 2.50 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.81.01 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Light Dimmer Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0293 |
|---|
Product Type ID | 0x0003 |
|---|
Product ID | 0x4410 |
|---|
User Icon | 0x1CF1 |
|---|
Installer Icon | 0x1CF1 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, Dimming Lighting Devices |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SWITCH_MULTILEVEL | Switch Multilevel | 0x26 | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Switch Load Capacity Watts | | Firmware Updatable | Value |
|---|
Updatable by Professional/Technician |
| Neutral Wire Required | | Electric Load Type | Value |
|---|
Dimmable LED | Dimmable Fluorescent | Dimmable MLV (Magnetic) | Dimmable ELV (Magnetic) |
| Switch Load Capacity Current | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 3 | 0 | Name: Lifeline
Command:
- Device Reset Locally Notification
- Switch MultiLevel Report |
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | 1. Put the controller into INCLUSION mode. Follow the instructions provided by the controller manufacturer.
2. Touch and hold at the centre of touch area for more than 5 seconds. Indication LEDs blinks blue. At this point release the key, the touch dimmer switch start inclusion process. | 5 | Factory Reset | 1. Press the config button 5 time, Indication LEDs lights will blinks red in color, touch dimmer switch will start local reset. Touch dimmer switch will erase network inclusion state after local reset.
Please use this procedure only when the network primary controller is missing or otherwise inoperable. | 2 | Exclusion | 1. Put the controller into EXCLUSION mode. Follow the instructions provided by the controller manufacturer.
2. Touch and hold at the centre of touch area for more than 5 seconds. Indication LEDs blinks blue. At this point release the key, the touch dimmer switch start exclusion
process. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
