| Product Recognition | — |
|---|
| Certification Number | ZC08-09090029 |
|---|

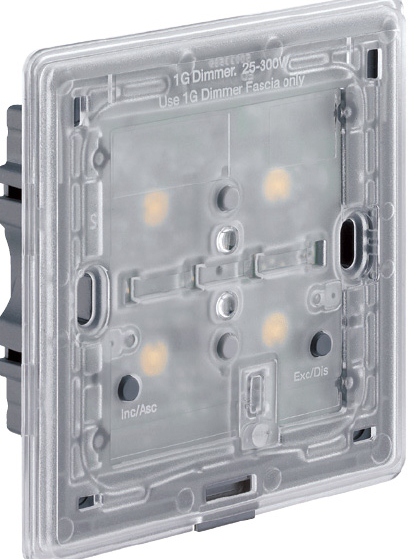

| Name | 1G 300W Dimmer |
|---|
| Long Description | This product is mains powered and used to control an externally connected lighting load (up to 300W). The device features a single rocker on the front for controlling the state of the load.
LDM31S LDM32S LDM61S 1 Gang 300W Dimmer, 868.4MHz, Singapore
RF Range up to 75m (open field)
Can control up to 5 devices
Can control either a group or a scene
Pre programmed with HOLIDAY MODE function
Mains powered
STANDARD CARTON QUANTITY: 1
Suitable for use with the following load types and maximum load ratings only.
Load Type 1G 300W Dimmer
GLS 25-300W
Tungsten filament 25-300W
Tungsten halogen 25-300W
12V ELV Tungsten halogen with wirewound or electronic transformers 35-300W |
|---|
| Brand | MK Electric |
|---|
| Product Identifier | LDM31S |
|---|
| OEM Version | A |
|---|
| Hardware Platform | ZW0301 |
|---|
| Z-Wave Version | 5.02 (PATCH 3) |
|---|
| Library Type | SLAVE_ROUTING |
|---|
| Device Type | Not Z-Wave Plus |
|---|
| Manufacturer ID | 0x0040 |
|---|
| Product Type ID | 0x0004 |
|---|
| Product ID | 0x0101 |
|---|
| Frequency Plans | KR: 920.90MHz, 921.70MHz, 923.10MHz |
|---|
| Categories | All Lighting Devices, Dimming Lighting Devices |
|---|
| Countries / Regions | Singapore |
|---|
| Controlled Command Classes | | Identifier | Name | Key | Version |
|---|
| COMMAND_CLASS_MANUFACTURER_PROPRIETARY | Manufacturer Proprietary | 0x91 | 1 | | COMMAND_CLASS_MULTI_CHANNEL | Multi-Channel V1 | 0x60 | 0 | | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | | COMMAND_CLASS_MULTI_INSTANCE | Multi-Instance | 0x60 | 1 | | COMMAND_CLASS_MULTI_CHANNEL_V2 | Multi-Channel V2 | 0x60 | 2 | | COMMAND_CLASS_MARK | Mark | 0xEF | 1 |
|
|---|
| Documents | |
|---|
