Product Recognition	—
Certification Number	ZC08-10010010

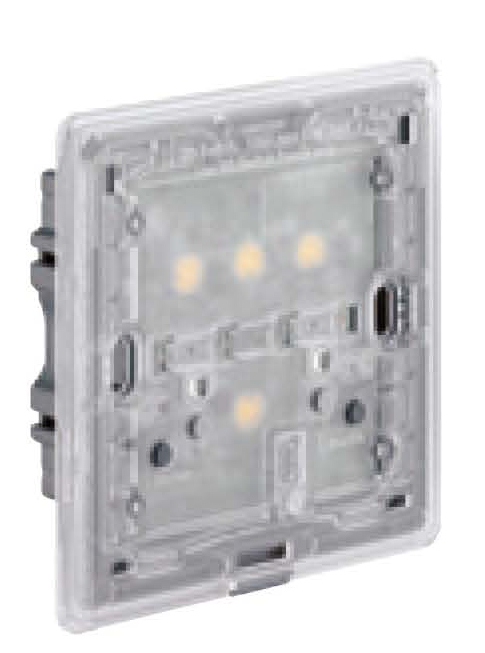

Name	1G Switch (10AX)
Long Description	This product is mains powered and used to control a single externally connected load (up to 10AX rating). The device features a switch on the front for toggling the state of the loads.1 and 2 Gang versions available Up to 75m RF range (open field) Can only control a group Can control to up to 5 devices in total Maximum of 5 devices per control channel Mains-powered astral holiday mode occupation simulation Use astral switch fascias 1 GANG 10AX SWITCH MODULE Select the appropriate 1 Gang or 2 Gang Switch Fascia for your Switch Controller Module. Suitable for use with the following load types and maximum load ratings only. GLS / Tungsten filament 25 - 2400W Tungsten halogen 25 - 2000W Fluorescent tubes with ferro-magnetic ballast and power factor correction 18 - 1800W Maximum load capacitance 140μF Fluorescent tubes with electronic ballast* (eg 30 x 18W tubes/ballasts) 18 - 540W Compact fluorescent (low energy) lamps* 25 - 750W ELV Tungsten halogen ferro-magnetic or electronic transformers* 25 - 1500VA
Brand	MK Electric
Product Identifier	LSM11I
OEM Version	A/D
Hardware Platform	ZM3102
Z-Wave Version	5.02 (PATCH 3)
Library Type	SLAVE_ROUTING
Device Type	Not Z-Wave Plus
Manufacturer ID	0x0040
Product Type ID	0x0905
Product ID	0x0101
Frequency Plans	IN: 865.20MHz
Categories	All Lighting Devices, On/Off Switches/Devices
Countries / Regions	India
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_MANUFACTURER_PROPRIETARY Manufacturer Proprietary 0x91 1 COMMAND_CLASS_MULTI_CHANNEL Multi-Channel V1 0x60 0 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_MULTI_CHANNEL_V2 Multi-Channel V2 0x60 2
