ZC08-09090020

1G Switch

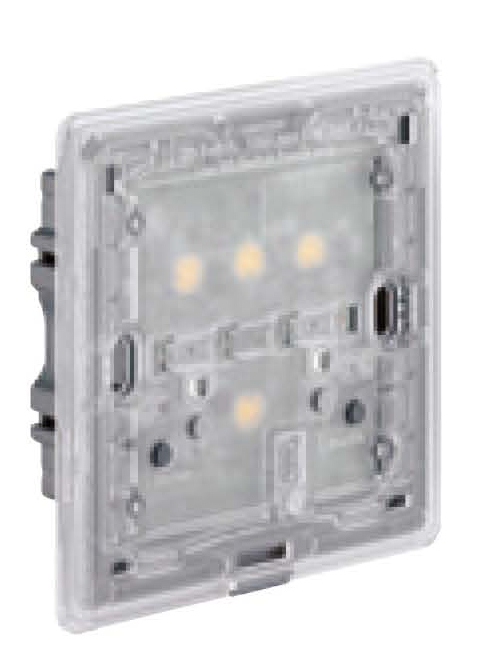

This product is mains powered and used to control an externally connected load (up to 10AX rating). The device features a switch on the front for toggling the state of the load. It is also possible to associate other devices with the switchANG 10AX SWITCH MODULE Select the appropriate 1 Gang or 2 Gang Switch Fascia for your Switch Controller Module. Suitable for use with the following load types and maximum load ratings only.1 and 2 Gang versions available Up to 75m RF range (open field) Can only control a group Can control to up to 5 devices in total Maximum of 5 devices per control channel Mains-powered astral holiday mode occupation simulation Use astral switch fascias GLS / Tungsten filament 25 - 2400W Tungsten halogen 25 - 2000W Fluorescent tubes with ferro-magnetic ballast and power factor correction 18 - 1800W Maximum load capacitance 140μF Fluorescent tubes with electronic ballast* (eg 30 x 18W tubes/ballasts) 18 - 540W Compact fluorescent (low energy) lamps* 25 - 750W ELV Tungsten halogen ferro-magnetic or electronic transformers* 25 - 1500VA

MK Electric

LSM11S

A

ZW0301

5.02 (PATCH 3)

SLAVE_ROUTING

Not Z-Wave Plus

0x0040

0x0005

0x0101

KR: 920.90MHz, 921.70MHz, 923.10MHz

All Lighting Devices, On/Off Switches/Devices

Singapore

40
