Product Recognition | — |
|---|---|
Certification Number | ZC08-09090022 |

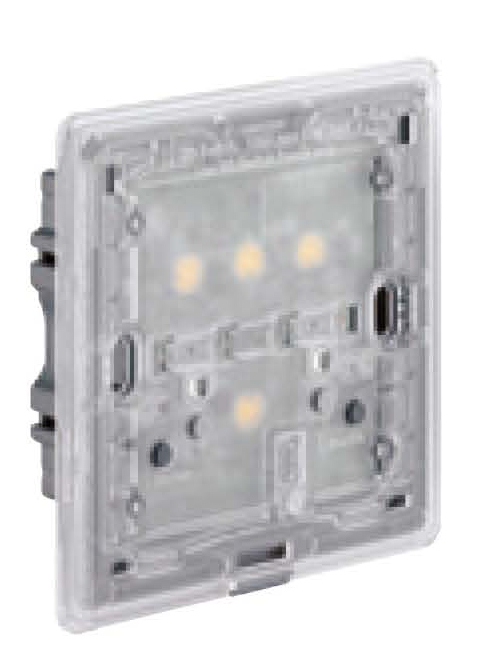

Name | 1G Switch |
Long Description | This product is mains powered and used to control an externally connected load (up to 10AX rating). The device features a switch on the front for toggling the state of the load. It is also possible to associate other1 and 2 Gang versions available Up to 75m RF range (open field) Can only control a group Can control to up to 5 devices in total Maximum of 5 devices per control channel Mains-powered astral holiday mode occupation simulation Use astral switch fascias devices with the 1 GANG 10AX SWITCH MODULE
Select the appropriate 1 Gang or 2 Gang Switch Fascia for your Switch Controller Module. Suitable for use with the following load types and maximum load ratings only.
GLS / Tungsten filament 25 - 2400W
Tungsten halogen 25 - 2000W
Fluorescent tubes with ferro-magnetic ballast and power factor correction 18 - 1800W
Maximum load capacitance 140μF
Fluorescent tubes with electronic ballast*
(eg 30 x 18W tubes/ballasts) 18 - 540W
Compact fluorescent (low energy) lamps* 25 - 750W
ELV Tungsten halogen ferro-magnetic or electronic transformers* 25 - 1500VA
switch. |
Brand | MK Electric |
Product Identifier | LSM11H |
OEM Version | A |
Hardware Platform | ZW0301 |
Z-Wave Version | 5.02 (PATCH 3) |
Library Type | SLAVE_ROUTING |
Device Type | Not Z-Wave Plus |
Manufacturer ID | 0x0040 |
Product Type ID | 0x0305 |
Product ID | 0x0101 |
Frequency Plans | HK: 919.80MHz, 919.80MHz |
Categories | All Lighting Devices, On/Off Switches/Devices, Lighting Accessories |
Countries / Regions | Hong Kong |
Controlled Command Classes | |
Documents | |
Radio Range Z-Wave (m) | 40 |
