COMMAND_CLASS_CONFIGURATION_V4

Configuration V4

0x70

4

COMMAND_CLASS_POWERLEVEL

Powerlevel

0x73

1

COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3

Multi-Channel Association V3

0x8E

3

COMMAND_CLASS_INDICATOR_V3

Indicator V3

0x87

3

COMMAND_CLASS_BATTERY

Battery

0x80

1

COMMAND_CLASS_SECURITY

Security S0

0x98

1

COMMAND_CLASS_TRANSPORT_SERVICE_V2

Transport Service V2

0x55

2

COMMAND_CLASS_WAKE_UP_V2

Wake Up V2

0x84

2

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Device Reset Locally

0x5A

1

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Z-Wave Plus Info V2

0x5E

2

COMMAND_CLASS_ASSOCIATION_V2

Association V2

0x85

2

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5

Firmware Update Meta-Data V5

0x7A

5

COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3

Association Group Information V3

0x59

3

COMMAND_CLASS_NOTIFICATION_V8

Notification V8

0x71

8

COMMAND_CLASS_SECURITY_2

Security S2

0x9F

1

COMMAND_CLASS_VERSION_V3

Version V3

0x86

3

COMMAND_CLASS_SUPERVISION

Supervision

0x6C

1

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Manufacturer Specific V2

0x72

2

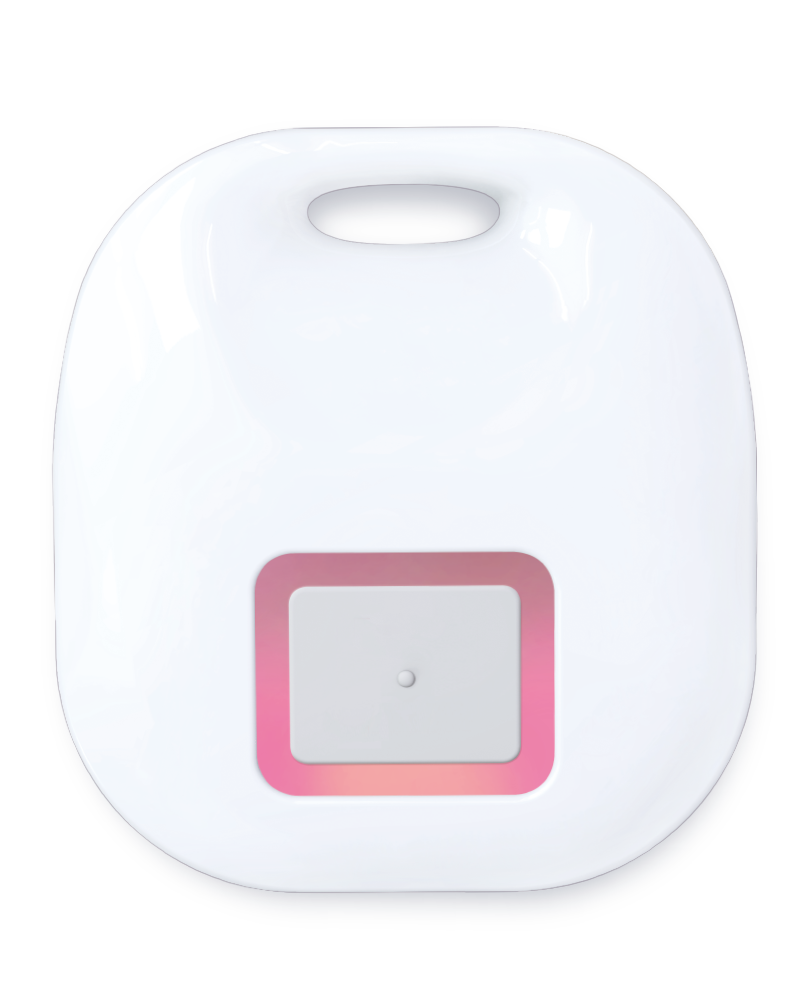

Manual_Primary_Lang

Product Manual

Battery Quantity

Battery Type

Color

Firmware Updatable

1

5

0

Lifeline

0x0001

* Group 1 = Lifeline

1

The Synchronic Interval Time

Define the synchronic interval time between arrival sensor and the gateway, the basic interval time is 16 seconds and the default value is "4" (64seconds=4x16seconds) 1 ~ 127 (unsigned decimal) Seconds (default: 4 (=16seconds x 4))

0

1

1

127

4

2

Classic Exclusion

For “Exclusion” from (removing from) a network: Put the Z-Wave™ Interface Controller into “exclusion” mode, and following its instruction to delete the ZA1502-7 from your controller. Quick press the button of ZA1502-7 5 times to be excluded, the Red/Green LED will flash 5 times quickly after successful exclusion. Note: All user and network settings will be cleared and the device reset to factory defaults when the device is excluded.

4

Wake-Up Procedure

Wake Up Notification: Press the button of ZA1502-7 2 times will active the “Wake Up Mode” for receiving all the command class from the controller. The ZA1502-7 will go to sleep mode without receiving any Z-Wave command till 10 seconds. It will proceed all the commands after sending the “Wake Up Notification”

6

Other Special Features

Auto Wake Up, Battery Capacity Detection, Explorer Frame & OTA

8

Where to find S2 DSK on product

The DSK label will on the backside of ZA1502-7, Scan the DSK label to access the SmartStart if gateway 's UI supports SmartStart. (Remark: The QR code is for use with Z-Wave SmartStart by using “DSK,” “Device Specific Key,” “PIN,” or “PIN code,” etc.)

1

Classic Inclusion

For “Inclusion” in (adding to) a network: Put the Z-Wave™ Interface Controller into “inclusion” mode, and following its instruction to add the ZA1502-7 to your controller. To get in the “inclusion” mode, quick press the button of ZA1502-7 5 times for sending the NIF, the Red/Green LED will flash 5 times quickly before the learning process for showing the sensor has not been included. After sending NIF, Z-Wave will send the auto inclusion, the Red/Green LED will flash 1 second after successful inclusion; otherwise, ZA1502-7 will go to sleep after 30 seconds. The red LED will be flashing while the inclusion is proceeding.

5

Factory Reset Procedure

Factory Default Reset: Quick press the button of ZA1502-7 4 times and hold the button around 5 seconds until the Red LED is on to send the “Device Reset Locally Notification” command and reset to the factory default. (Remark: This is to be used only in the case of primary controller being inoperable or otherwise unavailable.)

System

Heartbeat

Emergency Alarm

Contact medical service

Clock

Timer ended
