Product Recognition | |
|---|
Certification Number | ZC12-21070255 |
|---|
Name | 2 Wire Dimmer |
|---|

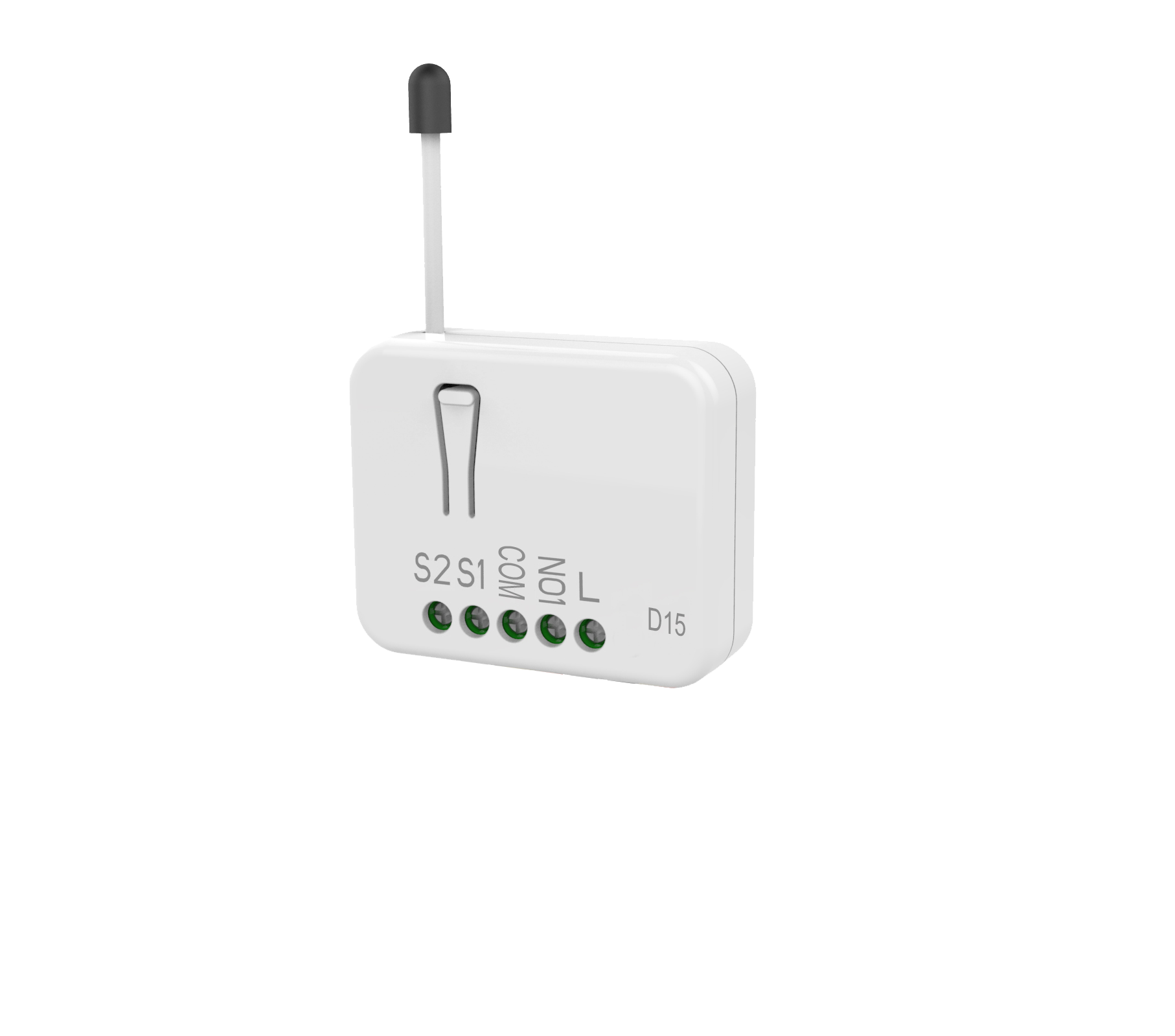

Short Description | PAD15 is a 2 Wire dimmer.
It only needs to connect two wires, single wire (L) and load (NO1). |
|---|
Long Description | The device should only need two wires for dimming, easy to
install.
This device is a security enabled Z-Wave Plus™ product that
uses encrypted Z-Wave Plus™ messages to communicate to
other security enabled Z-Wave Plus™ products. Z-Wave™
enabled devices displaying the Z-Wave™ logo can also be used
with this device regardless of the manufacturer, and this device
can also be used in other manufacturer’s Z-Wave™ enabled
networks. |
|---|
Brand | Philio |
|---|
Product Identifier | PAD15-IN |
|---|
Product Line | Philio Z-wave Products |
|---|
OEM Version | HW: 1 FW: 1.01 |
|---|
Hardware Platform | ZGM130 |
|---|
Z-Wave Version | 7.13.5 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Multilevel Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x013C |
|---|
Product Type ID | 0x0005 |
|---|
Product ID | 0x007e |
|---|
User Icon | 0x0600 |
|---|
Installer Icon | 0x0600 |
|---|
Frequency Plans | IN: 865.20MHz |
|---|
Categories | All Lighting Devices, Dimming Lighting Devices |
|---|
Countries / Regions | India |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta-Data V5 | 0x7A | 5 | COMMAND_CLASS_SWITCH_MULTILEVEL_V4 | Switch Multilevel V4 | 0x26 | 4 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information V3 | 0x59 | 3 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual in English | |
|
|---|
Features | Feature | Values |
|---|
Color | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
1 | 5 | 0 | Lifeline | 1. Grouping 1 Lifeline (Maximum 5 nodes). 2. MULTILEVEL_SWITCH_REPORT When “on” or “o ” state has been changed, it will send Multilevel Switch
Report to the nodes of Grouping 1. 3. NOTIFICATION_REPORT When overload occurred. 4. DEVICE_RESET_LOCALLY_NOTIFICATION When PAD15 is
reset manually, it will send DEVICE_RESET_LOCALLY_NOTIFICATION to the nodes of group 1. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
3 | RF report set | To set if device send Multilevel Switch report to gateway when dimming finished.
Setting value:
1: report ON
0: report OFF | 1 | 1 | 0 | 1 | 1 | From | To | Description |
|---|
0 | 0 | 0: report OFF | 1 | 1 | 1: report ON |
| 1 | Switch set | To select connected switch function.
Setting value:
0: Only S1 is effective
1: Both S1 and S2 are effective.
2: S1 dimmer up
S2 dimmer down | 1 | 1 | 0 | 2 | 1 | From | To | Description |
|---|
2 | 2 | 2: S1 dimmer up S2 dimmer down | 1 | 1 | 1: Both S1 and S2 are e ective. | 0 | 0 | 0: Only S1 is e ective |
| 2 | Power-on recovery status set | To set dimmer level when AC power on.
Setting value:
0: OFF-0%
1: ON-last level
2: ON-100% | 1 | 1 | 0 | 2 | 0 | From | To | Description |
|---|
0 | 0 | 0: OFF-0% | 1 | 1 | 1: ON-last level | 2 | 2 | 2: ON-100% |
| 4 | Maximum level | To set dimming level maximum value. Dimming level will not over the setting value.
Setting value:
Cannot be lower than the Minimum level | 1 | 1 | 1 | 99 | 99 | From | To | Description |
|---|
1 | 99 | 1~99 : 1% ~ 99% |
| 5 | Minimum level | To set dimming level minimum value. Dimming level will directly go to 0% when dimming value is lower than the setting value.
Setting value:
Cannot be higher than the Maximum level | 1 | 1 | 0 | 98 | 0 | From | To | Description |
|---|
0 | 98 | 0~98 : 0% ~ 98% |
| 6 | Basic duration set | Unit: second
To set dimming finished duration time when physical switch used.
Ex: When setting is 2, it will take 2 seconds from switch on action to dimming finished. | 1 | 1 | 0 | 127 | 2 | From | To | Description |
|---|
0 | 127 | Unit: second ,0 ~127second |
|
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | 1. The product has a DSK string. Key in the first five digits to initiate the SmartStart process, or scan QR code.
Ex: DSK: 18112-24021- 48001-62259-57092-27453-08187-47408
2. SmartStart enabled products can be added into a Z-Wave™ network by scanning the Z-Wave™ QR Code on the product, with a controller providing SmartStart inclusion. No further action is required and the SmartStart
product will be added automatically to the closest network within 10 minutes of being switched on.
Notice:
The QR Code can be foundon the
device PAD15 or in the box. | 1 | Classic Inclusion | Add(Classic Inclusion) : 1. Put your Z-Wave™ controller into inclusion mode by following the instructions
provided by the controller manufacturer. 2. Press the include button three times within 3 seconds to enter
inclusion mode. | 2 | Classic Exclusion | Remove (Exclusion) 1. Put your Z-Wave™ controller into exclusion mode by following the instructions
provided by the controller manufacturer. 2. Press the include button three times within 3 seconds to enter
exclusion mode. 3. Node ID will be excluded. | 5 | Factory Reset Procedure | Reset : 1. Press the include button four times within 3 seconds and hold on the button press without
releasing. 2. Keep pressing the button for 3 seconds then LED will be o ,release the button within 2 seconds.
3. Device has been reset. ※Function Reset : Please use this procedure only when the network primary
controller is missing or otherwise inoperable. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Power Management | Over-load status: Over-load detected |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
