| Product Recognition | — |
|---|
| Certification Number | ZC08-09090028 |
|---|

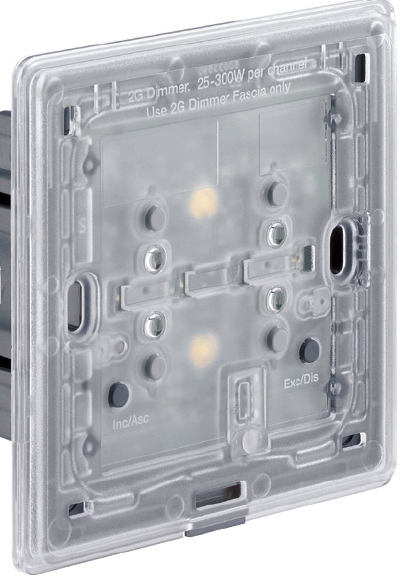

| Name | 2G 300W Dimmer |
|---|
| Long Description | This product is mains powered and used to control two externally connected lighting loads (up to 300W each). The device features 2 rockers on the front for controlling the state of each of the loads. It is also possible to associate other devices.2 GANG 300W DIMMER MODULE
RF Range up to 75m (open field)
Can control up to 5 devices
Can control either a group or a scene
Pre programmed with HOLIDAY MODE function
Mains powered
STANDARD CARTON QUANTITY: 1
Suitable for use with the following load types and maximum load ratings only.
Load Type 2G 300W Dimmer
GLS 25-300W per channel
Tungsten filament 25-300W per channel
Tungsten halogen 25-300W per channel
12V ELV Tungsten halogen with wirewound or electronic transformers 35-300W per channel |
|---|
| Brand | MK Electric |
|---|
| Product Identifier | LDM32H |
|---|
| OEM Version | A |
|---|
| Hardware Platform | ZW0301 |
|---|
| Z-Wave Version | 5.02 (PATCH 3) |
|---|
| Library Type | SLAVE_ROUTING |
|---|
| Device Type | Not Z-Wave Plus |
|---|
| Manufacturer ID | 0x0040 |
|---|
| Product Type ID | 0x0304 |
|---|
| Product ID | 0x0102 |
|---|
| Frequency Plans | HK: 919.80MHz, 919.80MHz |
|---|
| Categories | All Lighting Devices, Dimming Lighting Devices |
|---|
| Countries / Regions | Hong Kong |
|---|
| Controlled Command Classes | | Identifier | Name | Key | Version |
|---|
| COMMAND_CLASS_MANUFACTURER_PROPRIETARY | Manufacturer Proprietary | 0x91 | 1 | | COMMAND_CLASS_MULTI_CHANNEL | Multi-Channel V1 | 0x60 | 0 | | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | | COMMAND_CLASS_MULTI_INSTANCE | Multi-Instance | 0x60 | 1 | | COMMAND_CLASS_MULTI_CHANNEL_V2 | Multi-Channel V2 | 0x60 | 2 | | COMMAND_CLASS_MARK | Mark | 0xEF | 1 |
|
|---|
| Documents | |
|---|
