Product Recognition	—
Certification Number	ZC08-09090027

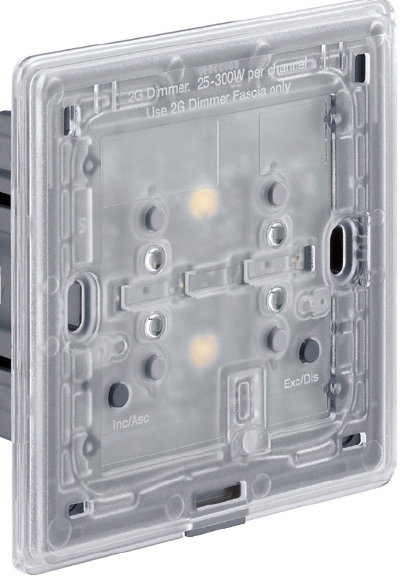

Name	2G 300W Dimmer
Long Description	This product is mains powered and used to control two externally connected lighting loads (up to 300W each). The device features 2 rockers on the front for controlling the state of each of the loads. It is also possible to associate other devices.2 GANG 300W DIMMER MODULE LDM31M 1 Gang 300W Dimmer, 868.1MHz, Malaysia RF Range up to 75m (open field) Can control up to 5 devices Can control either a group or a scene Pre programmed with HOLIDAY MODE function Mains powered STANDARD CARTON QUANTITY: 1 Suitable for use with the following load types and maximum load ratings only. Load Type 2G 300W Dimmer GLS 25-300W per channel Tungsten filament 25-300W per channel Tungsten halogen 25-300W per channel 12V ELV Tungsten halogen with wirewound or electronic transformers 35-300W per channel
Brand	MK Electric
Product Identifier	LDM32M
OEM Version	A
Hardware Platform	ZW0301
Z-Wave Version	5.02 (PATCH 3)
Library Type	SLAVE_ROUTING
Device Type	Not Z-Wave Plus
Manufacturer ID	0x0040
Product Type ID	0x0804
Product ID	0x0102
Frequency Plans	ANZ: 919.80MHz, 921.40MHz
Categories	All Lighting Devices, Dimming Lighting Devices
Countries / Regions	Malaysia
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_MANUFACTURER_PROPRIETARY Manufacturer Proprietary 0x91 1 COMMAND_CLASS_MULTI_CHANNEL Multi-Channel V1 0x60 0 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_MULTI_INSTANCE Multi-Instance 0x60 1 COMMAND_CLASS_MULTI_CHANNEL_V2 Multi-Channel V2 0x60 2
