Product Recognition	—
Certification Number	ZC08-10010005

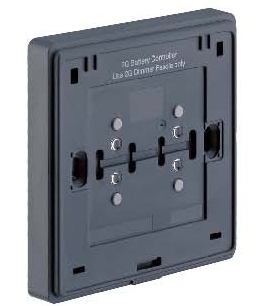

Name	2G Battery Controller
Long Description	2G Battery Controller.2 GANG BATTERY CONTROLLER Fully portable, can be used from any location in the system Can be selected as the system's Primary Controller RF Range up to 75m (open field) Can control up to 64 devices in total Pre programmed with ALL OFF function and HOLIDAY MODE function Low battery indicator Long battery life of tp to 2 years (under normal operating conditions) STANDARD CARTON QUANTITY: 1 Supplied with wall and back box mounting brackets, batteries and all required fixings. Operating Frequency 865.2 MHz Select the appropriate 2 Gang Dimmer Fascia for your Battery Controller Module.
Brand	MK Electric
Product Identifier	LIB2I
OEM Version	LIB2I A/E
Hardware Platform	ZM3102
Z-Wave Version	5.02 (PATCH 3)
Library Type	CONTROLLER_PORTABLE
Device Type	Not Z-Wave Plus
Manufacturer ID	0x0040
Product Type ID	0x0902
Product ID	0x0102
Frequency Plans	IN: 865.20MHz
Categories	All Lighting Devices, Lighting Accessories
Countries / Regions	India
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_ASSOCIATION Association 0x85 1 COMMAND_CLASS_SWITCH_MULTILEVEL Switch Multilevel 0x26 1 COMMAND_CLASS_MANUFACTURER_PROPRIETARY Manufacturer Proprietary 0x91 1 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION Multi-Channel Association V1 0x8E 0 COMMAND_CLASS_MULTI_CHANNEL Multi-Channel V1 0x60 0 COMMAND_CLASS_SWITCH_ALL Switch All 0x27 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_SWITCH_MULTILEVEL_V2 Switch Multilevel V2 0x26 2 COMMAND_CLASS_MULTI_CHANNEL_V2 Multi-Channel V2 0x60 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_MANUFACTURER_SPECIFIC Manufacturer Specific 0x72 1 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V2 Multi Channel Association V2 0x8E 2
