Product Recognition	—
Certification Number	ZC08-09090026

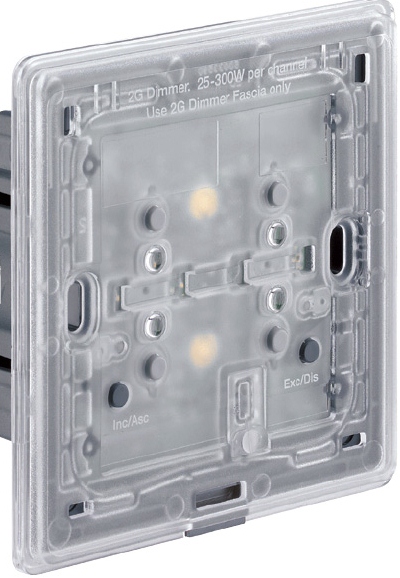

Name	2G Dimmer 300w
Long Description	This product is mains powered and used to control two externally connected lighting loads (up to 300W each). The device features 2 rockers on the front for controlling the state o2 GANG 300W DIMMER MODULE1 and 2 Gang versions available Up to 75m RF range (open field) Can control either a group or scene Can control to up to 5 devices in total Maximum of 5 devices per control channel Mains-powered astral holiday mode occupation simulation Use astral dimmer fascias RF Range up to 75m (open field) Can control up to 5 devices Can control either a group or a scene Pre programmed with HOLIDAY MODE function Mains powered STANDARD CARTON QUANTITY: 1 Suitable for use with the following load types and maximum load ratings only. Load Type 2G 300W Dimmer GLS 25-300W per channel Tungsten filament 25-300W per channel Tungsten halogen 25-300W per channel 12V ELV Tungsten halogen with wirewound or electronic transformers 35-300W per channelf each of the loads. It is also possible to associate other devices
Brand	MK Electric
Product Identifier	LDM32S
OEM Version	A
Hardware Platform	ZW0301
Z-Wave Version	5.02 (PATCH 3)
Library Type	SLAVE_ROUTING
Device Type	Not Z-Wave Plus
Manufacturer ID	0x0040
Product Type ID	0x0004
Product ID	0x0102
Frequency Plans	KR: 920.90MHz, 921.70MHz, 923.10MHz
Categories	All Lighting Devices, Dimming Lighting Devices
Countries / Regions	Singapore
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_MANUFACTURER_PROPRIETARY Manufacturer Proprietary 0x91 1 COMMAND_CLASS_MULTI_CHANNEL Multi-Channel V1 0x60 0 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_MULTI_INSTANCE Multi-Instance 0x60 1 COMMAND_CLASS_MULTI_CHANNEL_V2 Multi-Channel V2 0x60 2
