Product Recognition
Certification Number	ZC10-16015004
Name	2GIG GC3
Short Description	The 2GIG GC3 is the premium security and automation panel in the 2GIG product family, designed to enhance your lifestyle and protect your home and small business.

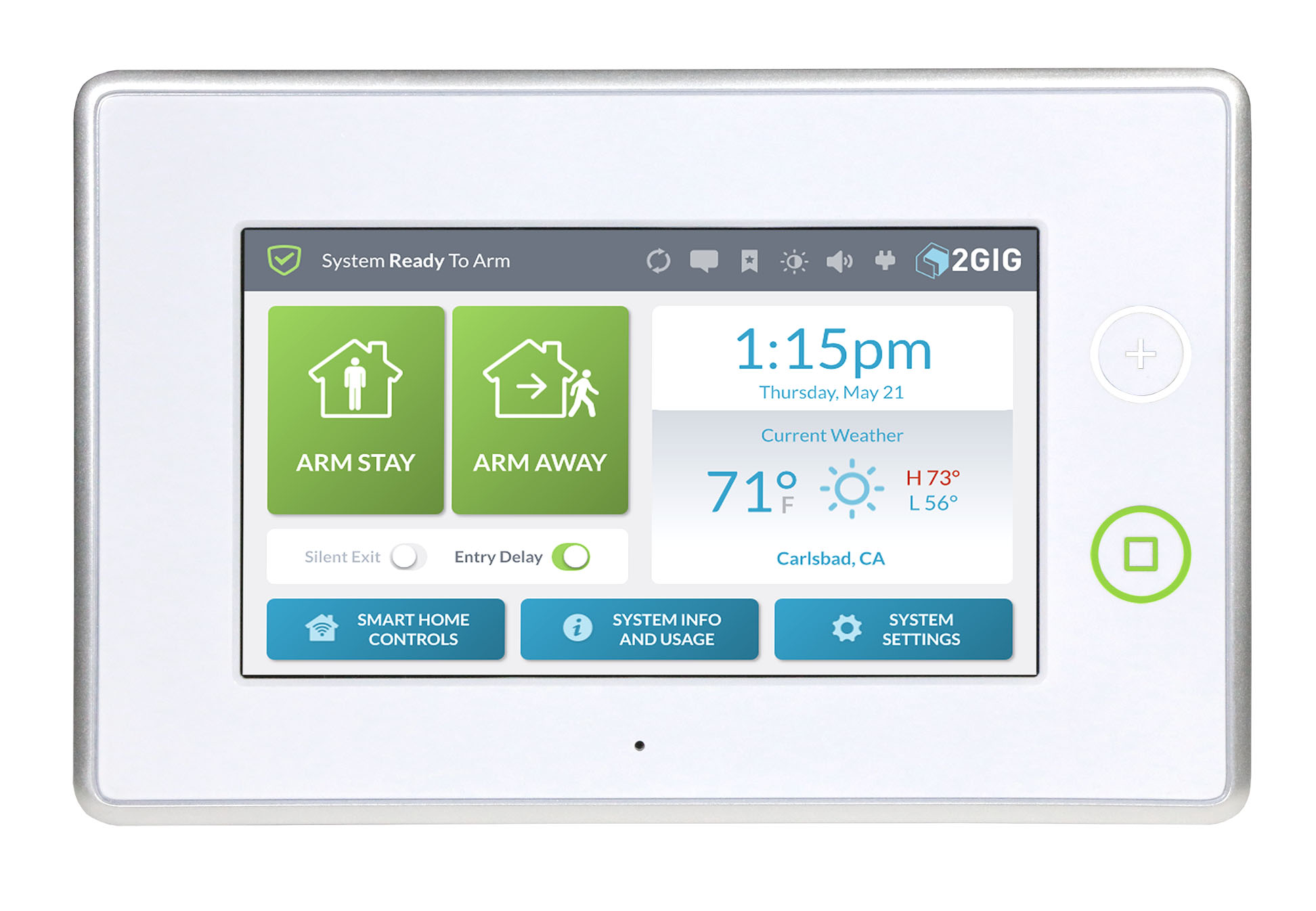

Long Description	The GC3 is the most capable and robust system that 2GIG has ever made. With a 7” color, capacitive touch screen and a full upgrade to the user-interface, GC3 installation time is 30% faster and more accurate, too. UI features include single screen zone programming, elimination of unnecessary or redundant steps, One-Touch Arming, and easy-to-see Status. These features, along with many others, make GC3 the easiest, most intuitive experience of any security system in the industry. Smart Home Control has been at the heart of all 2GIG panels since the very beginning. The new GC3 panel makes working with smart home devices simpler than ever before. Programming new smart home devices is a snap. Each GC3 comes equipped with a Z-Wave module making it ready to be the heart of Smart Home right out of the box.
Brand	2GIG
Product Identifier	2GIG-GC3-345
OEM Version	HW: 0 FW: 4.05:02.00
Hardware Platform	ZM5304
Z-Wave Version	6.51.06
Library Type	CONTROLLER_STATIC
Device Type	Central Controller
Role Type	ROLE_TYPE_CONTROLLER_CENTRAL_STATIC
Manufacturer ID	0x009B
Product Type ID	0x4350
Product ID	0x3330
User Icon	0x0100
Installer Icon	0x0100
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Controllers, Gateway Controller, Security Systems
Countries / Regions	United States of America
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_ASSOCIATION_GROUP_INFORMATION Association Group Information V1 0x59 0 COMMAND_CLASS_SWITCH_BINARY_V2 Switch Binary V2 0x25 2 COMMAND_CLASS_THERMOSTAT_OPERATING_STATE_V2 Thermostat Operating State V2 0x42 2 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi-Channel Association V3 0x8E 3 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_SWITCH_MULTILEVEL_V2 Switch Multilevel V2 0x26 2 COMMAND_CLASS_THERMOSTAT_FAN_MODE_V2 Thermostat Fan Mode V2 0x44 2 COMMAND_CLASS_THERMOSTAT_FAN_STATE_V2 Thermostat Fan State V2 0x45 2 COMMAND_CLASS_THERMOSTAT_SETPOINT_V2 Thermostat Setpoint V2 0x43 2 COMMAND_CLASS_WAKE_UP_V2 Wake Up V2 0x84 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_MULTI_CHANNEL_V4 Multi-Channel V4 0x60 4 COMMAND_CLASS_DOOR_LOCK_LOGGING Door Lock Logging 0x4C 1 COMMAND_CLASS_DOOR_LOCK_V3 Door Lock V3 0x62 3 COMMAND_CLASS_ANTITHEFT_V2 Anti-Theft V2 0x5D 2
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual GC3 User Manual.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Z-Wave Plus Lifeline
Texts	ID Description Value 24 Controller Exclusion From the Home Screen enter System Settings using the Master Code. Tap on Smart Home Settings and then tap on the Remove Devices tile. This will put the GC3 panel into exclusion mode. Trigger device to be revmoved following the device's instructions. The system will give a notification when the device has been removed. 23 Controller Inclusion From the Home Screen enter System Settings using the Master Code. Tap on Smart Home Settings and then tap on the Add Devices tile. This will put the GC3 panel into listening mode. Trigger device to be added following the device's instructions. The system will give a notification when the device has been added. 5 Factory Reset From the GC3 Home Screen enter System Settings using the Master Code. Tap on Smart Home Settings and then tap on the Advanced Settings tile. Tap on the Reset Controller tile. The system will present a confirmation. Tap the confirmation. The system will reset the GC3 Z-Wave network. Use this procedure only in the event that the network primary controller is missing or otherwise inoperable. 3 Learn Mode (adding another controller) Place the primary controller into inclusion mode. From the GC3 Home Screen enter System Settings using the Master Code. Tap on Smart Home Settings and then tap on the Advanced Settings tile. Tap on the Controller Learn tile to put the GC3 into learn mode. With the primary controller in inclusion mode, the GC3 will be added to the network.
Supports NWI	Yes
Supports Explorer Frames	Yes
