| Product Recognition | |
|---|
| Certification Number | ZC10-16055079 |
|---|

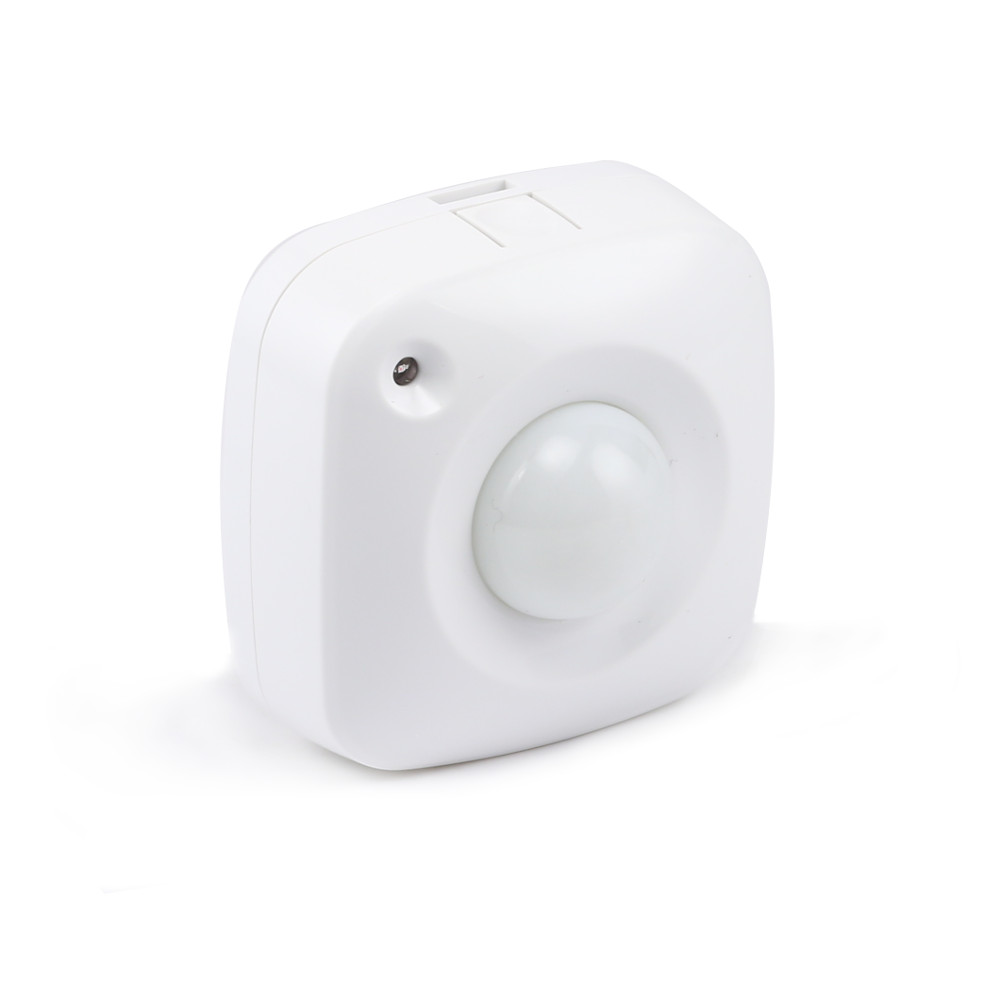

| Name | 4-in-1 Sensor |
|---|
| Short Description | Enjoy 4 smart sensors in 1 compact device. Monitor motion, temperature, humidity, and light level.
The Zooz 4-in-1 sensor is packed with advanced features:
- 7 levels of motion sensitivity to choose from
- 3 modes for motion / temp led indicator notifications
- Built-in tamper protection
- Low battery alerts |
|---|
| Long Description | Enjoy 4 smart sensors in 1 compact device. Monitor motion, temperature, humidity, and light level.
This is a secure device using 128-bit signal encryption. It requires a security enabled gateway controller for full functionality.
The Zooz 4-in-1 sensor is packed with advanced features:
- 7 levels of motion sensitivity to choose from
- 3 modes for motion / temp led indicator notifications
- Built-in tamper protection
- Low battery alerts
- Z-Wave Plus with improved 500 series chip for faster and safer wireless communication
Z-Wave Frequency: 908.42 MHz (US)
Power: 2 AAA batteries
Wireless Range: Up to 100 feet line of sight
Operating Temperature: 5° - 104°F
Installation: Indoor Use Only
1 Year Warranty |
|---|
| Brand | Zooz |
|---|
| Product Identifier | ZSE40 |
|---|
| OEM Version | HW: 1 FW: 5.01:10.01 |
|---|
| Hardware Platform | ZM5202 |
|---|
| Z-Wave Version | 6.51.06 |
|---|
| Library Type | SLAVE_ENHANCED_232 |
|---|
| Device Type | Notification Sensor |
|---|
| Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
| Manufacturer ID | 0x027A |
|---|
| Product Type ID | 0x2021 |
|---|
| Product ID | 0x2101 |
|---|
| User Icon | 0x0C07 |
|---|
| Installer Icon | 0x0C07 |
|---|
| Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
| Categories | Sensors |
|---|
| Countries / Regions | United States of America |
|---|
| Controlled Command Classes | | Identifier | Name | Key | Version |
|---|
| COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
| Documents | |
|---|
| Features | | Feature | Values |
|---|
| Sensors | | Value |
|---|
| Motion/No Motion (Binary) | | Air Temperature | | Luminance | | Humidity |
| | Battery Quantity | | | Battery Type | |
|
|---|
| Association Groups | | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
| 1 | 5 | 0 | Lifeline
COMMAND_CLASS_BASIC_SET
COMMAND_CLASS_BATTERY_REPORT
COMMAND_CLASS_DEVICE_RESET_LOCALLY_NOTIFICATION
COMMAND_CLASS_NOTIFICATION_REPORT
COMMAND_CLASS_SENSOR_MULTILEVEL_V7
|
|
|---|
| Texts | | ID | Description | Value |
|---|
| 1 | Inclusion | To add the ZSE40 to the Z-Wave network (inclusion), place the Z-Wave primary controller into inclusion mode. Press the Program Switch of ZSE40 for sending the NIF. After sending NIF, Z-Wave will send the auto inclusion, otherwise, ZSE40 will go to sleep after 20 seconds. | | 2 | Exclusion | To remove theZSE40 from the Z-Wave network (exclusion), place the Z-Wave primary controller into “exclusion” mode and follow its instruction to delete the ZSE40 to the controller. Press the Program Switch of ZSE40 once to be excluded. | | 5 | Factory Reset | Remove cover to trigged tamper switch, LED flash once & send out Alarm Report. Press Program Switch 10 times within 10 seconds, ZSE40 will send the “Device Reset Locally Notification” command and reset to the factory default. (Remark: This is to be used only in the case of primary controller being inoperable or otherwise unavailable.) | | 4 | Device Wake-Up | Use “Wake Up” command to set up the awaking time (from 10 minutes to 1 week) and send the wake up notification to controller |
|
|---|
| Supported Multilevel Sensors | | Multilevel Sensor Type |
|---|
| Air temperature | | 0x02 | | Illuminance | | Humidity |
|
|---|
| Supports NWI | Yes |
|---|
| Supports Explorer Frames | Yes |
|---|
