| Product Recognition | — |
|---|
| Certification Number | ZC08-09060011 |
|---|

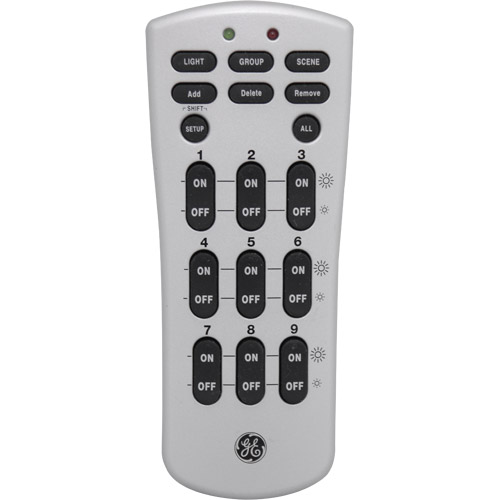

| Name | 45600 / URC8900BG0-R (Jasco Basic Z-Wave Remote) |
|---|
| Long Description | Jasco Basic Z-Wave Remote The GE Remote turns on/off and adjusts the brightness level of Z-Wave enabled lights, as well as operates the on/off functions of Z-Wave enabled small appliances. Users create and manage custom lighting schemes by controlling up to 18 individual lights, 18 groups, and 18 scenes. The compact, ergonomic remote features LED lights to provide users with visual feedback of completed commands. |
|---|
| Brand | Jasco Products Company |
|---|
| Product Identifier | 45600 |
|---|
| OEM Version | 1.09 |
|---|
| Hardware Platform | ZM2102 |
|---|
| Z-Wave Version | 4.28 |
|---|
| Library Type | CONTROLLER_PORTABLE |
|---|
| Device Type | Not Z-Wave Plus |
|---|
| Manufacturer ID | 0x0020 |
|---|
| Product Type ID | 0x8007 |
|---|
| Product ID | 0x1390 |
|---|
| Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
| Categories | All Controllers, Handheld Controller |
|---|
| Countries / Regions | United States of America |
|---|
| Controlled Command Classes | | Identifier | Name | Key | Version |
|---|
| COMMAND_CLASS_SWITCH_MULTILEVEL | Switch Multilevel | 0x26 | 1 | | COMMAND_CLASS_SWITCH_ALL | Switch All | 0x27 | 1 | | COMMAND_CLASS_CONTROLLER_REPLICATION | Controller Replication | 0x21 | 1 | | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
