Product Recognition | |
|---|
Certification Number | ZC10-17075680 |
|---|

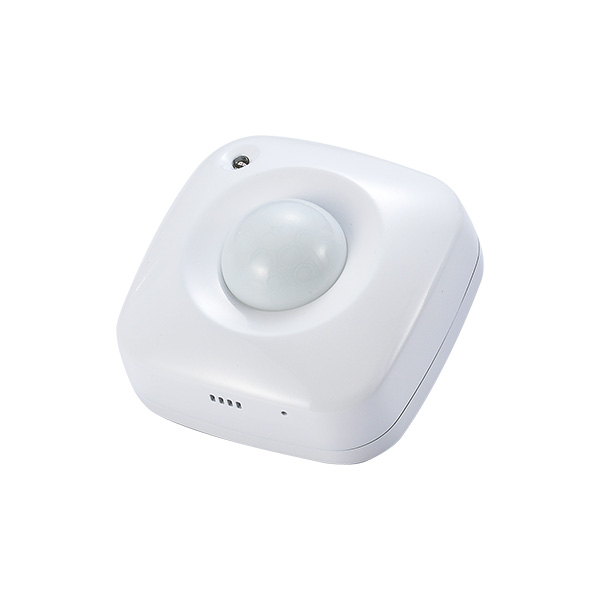

Name | 4in1 PIR Sensor |
|---|
Short Description | This sensor monitors movement, and send Z-Wave TM signal when movement is detected inside the building. With Temperature, Humidity & Light sensor built inside, it will send the signal out when temperature, humidity & Lightness changed. |
|---|
Long Description | * Includes Motion, Temperature, Humidity, and Light sensor
* 360 degree detection (suitable for ceiling fixture)
* Compact Size: 59*59*41mm
* 2*AAA Battery
* Low Battery Detection
* LED Status Indicator
* 100feet line of sight |
|---|
Brand | Vision |
|---|
Product Identifier | ZP3111JP-5 |
|---|
OEM Version | HW: 5 FW: 5.01:10.01 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.06 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x0109 |
|---|
Product Type ID | 0x2021 |
|---|
Product ID | 0x2101 |
|---|
User Icon | 0x0C07 |
|---|
Installer Icon | 0x0C07 |
|---|
Frequency Plans | JP: 922.50MHz, 923.90MHz, 926.30MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | Japan |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_SENSOR_MULTILEVEL_V7 | Sensor Multilevel V7 | 0x31 | 7 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 | Firmware Update Meta-Data V2 | 0x7A | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_NOTIFICATION_V4 | Notification V4 | 0x71 | 4 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Supported Notification Types | | Battery Type | | Color | | Communications Protocol | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Sensors | Value |
|---|
Motion/No Motion (Binary) |
| Battery Quantity | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Lifeline
COMMAND_CLASS_BASIC_SET
COMMAND_CLASS_BATTERY_REPORT
COMMAND_CLASS_DEVICE_RESET_LOCALLY_NOTIFICATION
COMMAND_CLASS_NOTIFICATION_REPORT
COMMAND_CLASS_SENSOR_MULTILEVEL_V7
|
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Temperature Unit Selection | 0x00 = °C 0x01 = °F | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 1 | Choose °F |
| 2 | Auto Temperature Report Interval | 1~50 (Set up from 0.1°C~5°C) | 0 | 1 | 0 | 0 | 10 | From | To | Description |
|---|
1 | 50 | Auto Temperature Interval from 0.1°C~5°C |
| 3 | Auto Humidity Report Interval | 1~50 (Set up from 1%~50%) | 0 | 1 | 0 | 0 | 10 | From | To | Description |
|---|
1 | 50 | Auto Humidity Report Interval from 1% ~ 50% |
| 4 | Auto Light Report Interval | 0,5~50 (Set up from 0 for Off or 5%~50%) | 0 | 1 | 0 | 0 | 10 | From | To | Description |
|---|
0 | 50 | Auto Light Report Interval from off or 5%~50% |
| 5 | Motion Re-triggering Duration | 1 ~ 255 (unsigned decimal) Minutes (default: 3 minutes) | 0 | 1 | 0 | 0 | 3 | From | To | Description |
|---|
1 | 255 | Motion Re-triggering Duration (in minute) |
| 6 | Motion Sensitivity | 1 ~ 7 (default: 4) | 0 | 1 | 0 | 0 | 4 | From | To | Description |
|---|
1 | 7 | Motion Sensitivity |
| 7 | LED Flash Mode Selection | 1 ~ 3 (Mode 1 ~ Mode 3) Mode 1 LED Turn Off (Both Temp./PIR Trigger) Mode 2 Temp. (Breathing Light Mode) PIR (Quick Flash) Mode 3 LED Quick Flash (Temp./PIR Trigger) | 0 | 1 | 0 | 0 | 3 | From | To | Description |
|---|
1 | 3 | LED Flash Mode Selection |
|
|
|---|
Texts | ID | Description | Value |
|---|
4 | Device Wake-Up | Use “Wake Up” command to set up the awaking time (from 10 minutes to 1 week) and send the wake up notification to controller | 2 | Exclusion | To remove the ZP3111 from the Z-Wave network (exclusion), place the Z-Wave primary controller into “exclusion” mode, and following its instruction to delete the ZP3111 to the controller. Press the Program Switch of ZP3111 once to be excluded. | 1 | Inclusion | To add the ZP3111 to the Z-Wave network (inclusion), place the Z-Wave primary controller into inclusion mode. Press the Program Switch of ZP3111 for sending the NIF. After sending NIF, Z-Wave will send the auto inclusion, otherwise, ZP3111 will go to sleep after 20 seconds. | 5 | Factory Reset | Remove cover to trigged tamper switch, LED flash once & send out Alarm Report. Press Program Switch 10 times within 10 seconds, ZP3111 will send the “Device Reset Locally Notification” command and reset to the factory default. (Remark: This is to be used only in the case of primary controller being inoperable or otherwise unavailable.) |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Access Control | (Refer to parameters): State idle |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
General purpose |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
