Product Recognition
Certification Number	ZC10-15120012

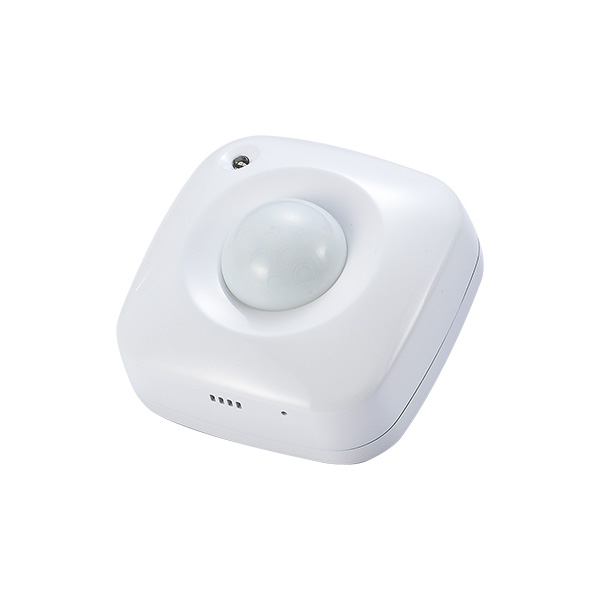

Name	4in1 PIR Sensor
Short Description	This sensor monitors movement, and send Z-Wave TM signal when movement is detected inside the building. With Temperature, Humidity & Light sensor built inside, it will send the signal out when temperature, humidity & Lightness changed.
Long Description	* Includes Motion, Temperature, Humidity, and Light sensor * 360 degree detection (suitable for ceiling fixture) * Compact Size: 59*59*41mm * 2*AAA Battery * Low Battery Detection * LED Status Indicator * 100feet line of sight
Brand	Vision
Product Identifier	ZP3111EU-5
OEM Version	02
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	Notification Sensor
Role Type	ROLE_TYPE_SLAVE_SLEEPING_REPORTING
Manufacturer ID	0x0109
Product Type ID	0x2021
Product ID	0x2101
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	Sensors
Countries / Regions	European Union
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual ZP3111-5_R0_20151113 - VISION.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Lifeline COMMAND_CLASS_BASIC_SET COMMAND_CLASS_BATTERY_REPORT COMMAND_CLASS_DEVICE_RESET_LOCALLY_NOTIFICATION COMMAND_CLASS_NOTIFICATION_REPORT COMMAND_CLASS_SENSOR_MULTILEVEL_V7
Texts	ID Description Value 1 Inclusion To add the ZP3111 to theZ-Wave network (inclusion), place the Z-Wave primary controller into inclusion mode. Press the Program Switch of ZP3111 for sending the NIF. After sending NIF, Z-Wave will send the auto inclusion, otherwise, ZP3111 will go to sleep after 20 seconds. 2 Exclusion To remove the ZP3111 from the Z-Wave network (exclusion), place the Z-Wave primary controller into “exclusion” mode, and following its instruction to delete the ZP3111 to the controller. Press the Program Switch of ZP3111 once to be excluded. 4 Device Wake-Up Use “Wake Up” command to set up the awaking time (from 10 minutes to 1 week) and send the wake up notification to controller 5 Factory Reset Remove cover to trigged tamper switch, LED flash once & send out Alarm Report. Press Program Switch 10 times within 10 seconds, ZP3111 will send the “Device Reset Locally Notification” command and reset to the factory default. (Remark: This is to be used only in the case of primary controller being inoperable or otherwise unavailable.)
Supports NWI	Yes
Supports Explorer Frames	Yes
