| Product Recognition | |
|---|
| Certification Number | ZC10-16020005 |
|---|

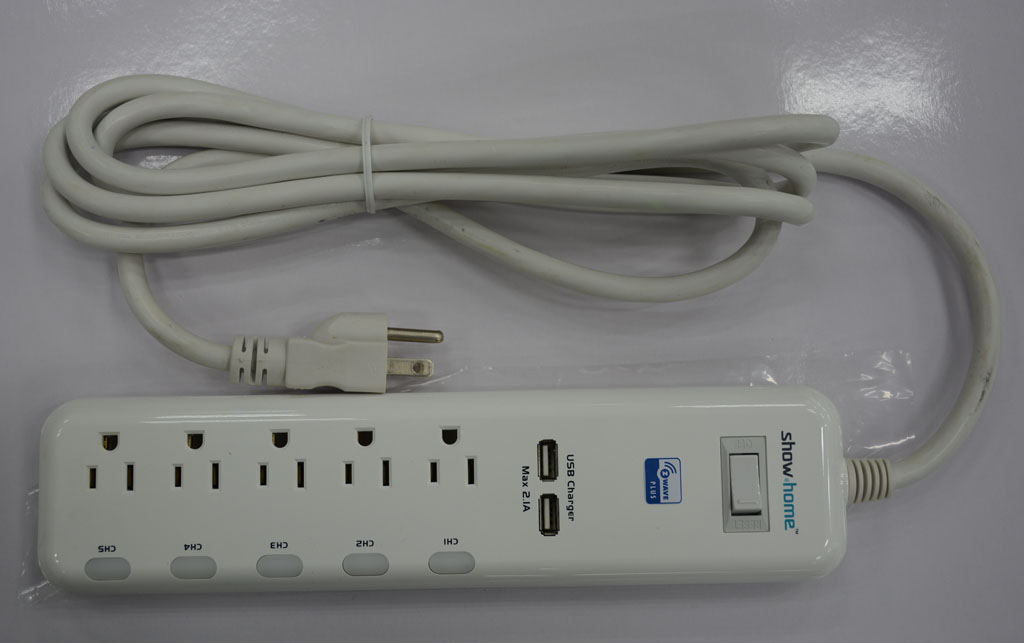

| Name | 5 Outlet Power Strip with USB charger |
|---|
| Short Description | Five Outlet power strip and supply two USB 5V/2.1A charger |
|---|
| Long Description | The 5 outlets power strip provides five Z-Wave outlets for remote controlled by controller through Z-Wave gateway for internet of thing service and can be configured in Z-Wave sensor network, if Z-Wave certified controller features remote access, you can now control five outlets from your mobile phone each one. Five outlets can
manual On/Off the same time by push button. The two USB ports provide 5V/2.1A charging power for MP3/ mobile phone.etc.. |
|---|
| Brand | show home |
|---|
| Product Identifier | ZW 1505 |
|---|
| OEM Version | 01 |
|---|
| Hardware Platform | ZM5202 |
|---|
| Z-Wave Version | 6.51.06 |
|---|
| Library Type | SLAVE_ROUTING |
|---|
| Device Type | Power Strip |
|---|
| Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
| Manufacturer ID | 0x015D |
|---|
| Product Type ID | 0x0651 |
|---|
| Product ID | 0xF51C |
|---|
| Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
| Categories | All Lighting Devices, On/Off Switches/Devices |
|---|
| Countries / Regions | United States of America |
|---|
| Documents | |
|---|
| Association Groups | | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
| 1 | 5 | 0 | Z-Wave Plus Lifeline |
|
|---|
| Texts | | ID | Description | Value |
|---|
| 2 | Exclusion | 1. Follow the instructions for your Z-Wave certified controller to exclude a device
from the Z-Wave network.
2. Once the controller is ready to Exclude your device, press up and release the toggle
to exclude it from the network. | | 1 | Inclusion | 1. Follow the instructions for your Z-Wave certified controller to include a device to
the Z-Wave network.
2. Once the controller is ready to include your device, press up and release the toggle
to include it in the network.
3. Once your controller has confirmed that the device has been included, refresh the
Z-Wave network to optimize performance.
4. The device is associated in the same group when it included in setting process.
Now you can control your Z-Wave device according to groups, scenes, schedules and automation programmed. | | 5 | Factory Reset | 1. Press and hold the top button for at least 3 seconds while you plug the smart
switch into a receptacle.
2. Use this procedure only in the event that the network primary controller is missing
or otherwise inoperable. |
|
|---|
| Supports NWI | Yes |
|---|
| Supports Explorer Frames | Yes |
|---|
