Product Recognition | |
|---|---|
Certification Number | ZC10-22087116 |

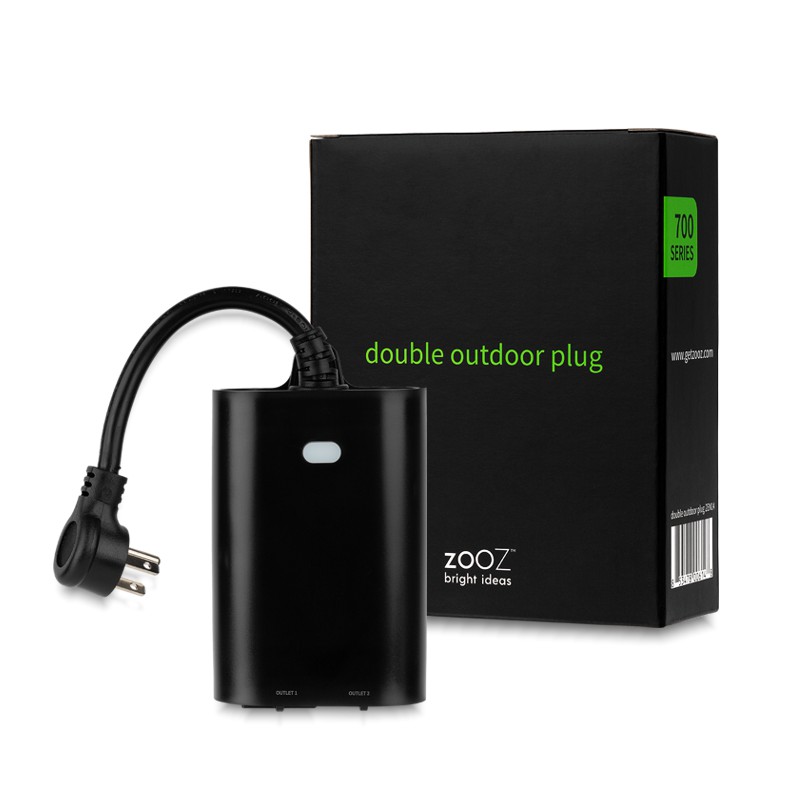

Name | 700 Series Outdoor Double Plug |
Short Description | On/off Z-Wave™ control for 2 independent devices |
Long Description | FEATURES:
- Z-Wave™ on/off control of 2 individual loads
- IP65 rated for outdoor use
- Easy set-up and angled plug for better outlet fit
- S2 security and Z-Wave™ Plus technology
- Supports OTA firmware updates
- ETL listed for compliance with North American safety standards
SPECS:
- Z-Wave™ Frequency: 908.42 MHz (US)
- Power: 120 VAC, 60 Hz
- Maximum Loads: 960W incandescent, 150W LED bulbs, 15A resistive, 1/3 HP fan motors combined between 2 outlets
- Z-Wave™ Range: Up to 300 feet line of sight
- Dimensions: 5" tall, 3.5" wide, 1.75" deep
- Cord Length: 6.5"
- Operating Temperature: 32-104° F (0-40° C)
- Installation: Indoor or outdoor use, IP65 rated |
Brand | Zooz |
Product Identifier | ZEN14 |
Product Line | Plugs |
OEM Version | HW: 255 FW: 1.01 |
Hardware Platform | ZM5202 |
Z-Wave Version | 6.71.01 |
Library Type | SLAVE_ENHANCED_232 |
Device Type | On/Off Power Switch |
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
Manufacturer ID | 0x027A |
Product Type ID | 0x7000 |
Product ID | 0xB003 |
User Icon | 0x0700 |
Installer Icon | 0x0701 |
Frequency Plans | US: 916.00MHz, 908.40MHz |
Categories | All Lighting Devices, On/Off Switches/Devices |
Countries / Regions | United States of America |
Supported Command Classes | |
Controlled Command Classes | |
S2 Classes | S2_UNAUTHENTICATED |
Documents | |
Features | |
Association Groups | |
Configuration Parameters | |
Texts | |
Supported Notification Types | |
Supports NWI | Yes |
Supports Explorer Frames | Yes |
Radio Range Z-Wave (m) | 40 |
