Product Recognition

Certification Number

ZC10-22087117

Name

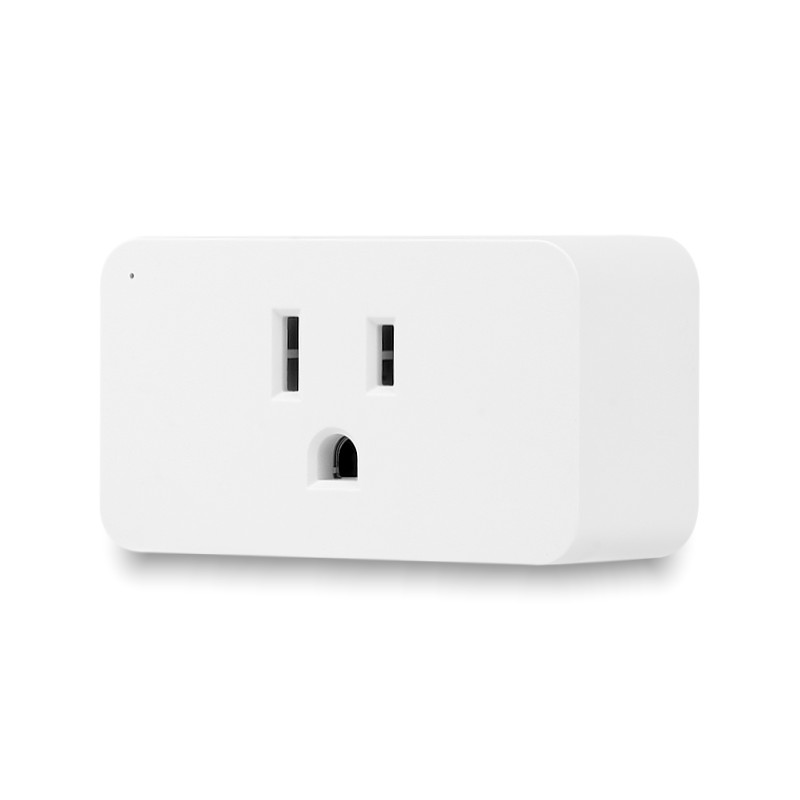

700 Series SMART PLUG

Short Description

On/off Z-Wave™ control for floor lamps & small appliances with energy monitoring.

Long Description

FEATURES: - Reliable Z-Wave™ control of lamps and small appliances - Energy monitoring to help you manage power use - Quick set-up: just plug it into a grounded receptacle - Extra small, doesn’t block the other outlet - The latest S2 security and Z-Wave Plus™ technology - Supports OTA ﬁrmware updates - ETL listed for safety standards SPECS: - Z-Wave™ Frequency: 908.42 MHz (US) - Power: 120 VAC, 60 Hz - Maximum Loads: 960W incandescent, 150W LED bulbs, 15A resistive, 1/2 HP fan motors - Z-Wave Range: Up to 300 feet line of sight - Dimensions: 1.5" tall, 2.6" wide, 1.14" deep - Operating Temperature: 32-104° F (0-40° C) - Installation: Indoor use only

Brand

Zooz

Product Identifier

ZEN04

Product Line

Plugs

OEM Version

HW: 255 FW: 1.00

Hardware Platform

ZM5202

Z-Wave Version

6.71.03

Library Type

SLAVE_ENHANCED_232

Device Type

On/Off Power Switch

Role Type

ROLE_TYPE_SLAVE_ALWAYS_ON

Manufacturer ID

0x027A

Product Type ID

0x7000

Product ID

0xB002

User Icon

0x0701

Installer Icon

0x0700

Frequency Plans

US: 916.00MHz, 908.40MHz

Categories

Energy Meters, All Lighting Devices, On/Off Switches/Devices

Countries / Regions

United States of America

Supported Command Classes

Controlled Command Classes

S2 Classes

S2_UNAUTHENTICATED

Documents

Features

Association Groups

Configuration Parameters

Parameter Number

Name

Description

Format

Size

Min Value

Max Value

Default Value

Parameter Values

Brightness of LED indicator

Choose which brightness level you want the LED indicator to be at. This setting can also be changed by pressing the Z-Wave button 8 times quickly (it will cycle through the values). You should see the LED flash green two times to confirm a successful brightness change.

From	To	Description
0	0	High
1	1	Medium
2	2	Low

Auto-off Timer

Use this parameter to set the auto turn-off timer: the time after which you want the Smart Plug to automatically turn off once it has been turned on. The number entered as value corresponds to the number of minutes.

65535

From	To	Description
1	65535	minutes

On/Off Status Recovery After Power Failure

Choose the recovery state for your Smart Plug if power outage occurs.

From	To	Description
0	0	Smart Plug remembers the status prior to power outage and turns back to it
1	1	Smart Plug automatically turns OFF once power is restored (it ignores the status prior to power outage)
2	2	Smart Plug automatically turns ON once power is restored (it ignores the status prior to the power outage)

Auto-on Timer

Use this parameter to set the auto turn-on timer: the time after which you want the Smart Plug to automatically turn on once it has been turned off. The number entered as value corresponds to the number of minutes.

65535

From	To	Description
0	65535	Minutes

LED Indicator

Decide how the LED indicator behaves depending on the on/off status of the plug.

From	To	Description
1	1	LED indicator is on when the plug is off, LED indicator is off when the plug is on
2	2	LED indicator is always off
3	3	LED indicator is always on
0	0	LED indicator is on when the plug is on, LED indicator is off when the plug is off (default)

Power Wattage Reporting Frequency

The number entered as value corresponds to the number of minutes. So if 5 is entered by default, the Smart Plug will report power consumption (Wattage) every 5 minutes.

65535

From	To	Description
1	65535	minutes

Power Wattage Reporting Threshold

From	To	Description
5	50	Watts

Energy Reporting Threshold

Choose how you want your Smart Plug to report energy use (kWh) to your hub. The number entered as value corresponds to the number of kWh the appliance needs to go over for the change to be reported.

100

From	To	Description
1	100	1 = 0.01 kWh ; 100 = 1kWh

Electrical Current Reporting Threshold

Choose how you want your Smart Plug to report electrical current (Amps) to your hub. The number entered as value corresponds to the number of Amps the appliance needs to go over for the change to be reported. Value 1 equals 0.1 A and value 10 equals 1 A.

From	To	Description
1	10	1 = 0.1A and 10 = 1A

Texts

Supported / Controlled Meter Types

Supported Notification Types

Supports NWI

Yes

Supports Explorer Frames

Yes
