Product Recognition | |
|---|
Certification Number | ZC12-21050227 |
|---|

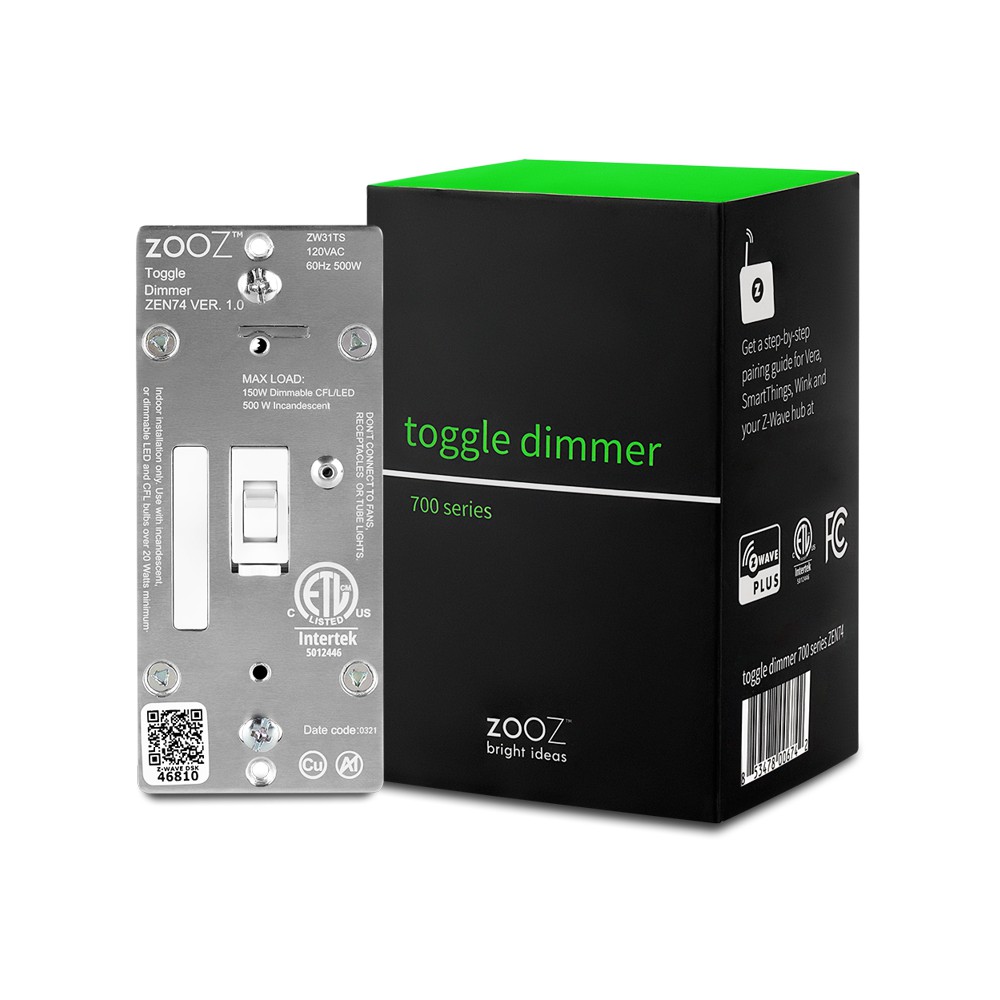

Name | 700 Toggle Dimmer |
|---|
Short Description | Toggle Style S2 Dimmer with Simple Direct 3-Way Solution |
|---|
Long Description | FEATURES:
- Manual or Z-Wave on/off and brightness control
- NEW: 700 series Z-Wave chip for better range and faster control
- Simple Direct 3-Way: connect with existing on/off switches in 3-
way, 4-way, and 5-way set-ups, no add-on needed
- Scene control: trigger actions with multi-tap (select hubs only)
- Smart bulb mode: disable relay and control the light via Z-Wave
- Night light mode: press down when off to turn lights on to 20%
- Multi-color LED indicator for easy pairing and troubleshooting
- Works with LED and incandescent bulbs (don’t use with tubes)
SPECS:
- Model Number: ZEN74 VER. 1.0
- Z-Wave Signal Frequency: 908.42 MHz
- Power: 120 VAC, 60 Hz
- Maximum Load: 100 W LED, 300 W incandescent; DON’T use
with fans, switches receptacles, or tube lights
- Range: Up to 500 feet line of sight
- Operating Temperature: 32-104 F (0-40 C)
- Installation and Use: Indoor only |
|---|
Brand | Zooz |
|---|
Product Identifier | ZEN74 |
|---|
Product Line | Line A |
|---|
OEM Version | HW: 1 FW: 1.00 |
|---|
Hardware Platform | ZGM130 |
|---|
Z-Wave Version | 7.13.6 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Multilevel Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x027A |
|---|
Product Type ID | 0x7000 |
|---|
Product ID | 0xA004 |
|---|
User Icon | 0x0604 |
|---|
Installer Icon | 0x0600 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, Dimming Lighting Devices |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_ASSOCIATION_V3 | Association V3 | | 0 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta-Data V5 | 0x7A | 5 | COMMAND_CLASS_SWITCH_MULTILEVEL_V4 | Switch Multilevel V4 | 0x26 | 4 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information V3 | 0x59 | 3 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_CENTRAL_SCENE_V3 | Central Scene V3 | 0x5B | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual in English | |
|
|---|
Features | Feature | Values |
|---|
Neutral Wire Required | | Switch Load Capacity Watts | | Color | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Z-Wave Scene Type | | Electric Load Type | Value |
|---|
Incandescent | Dimmable LED | Dimmable MLV (Magnetic) | Dimmable ELV (Magnetic) |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
1 | 3 | 0 | Lifeline | Lifeline communication with the hub sending basic report. | 2 | 5 | 0 | Group 2 | Basic set communication for on/off control devices in Group 2. | 3 | 5 | 0 | Group 3 | Multilevel communication for dimming/brightness control devices in Group 3.
|
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
3 | Auto Turn-Off Timer | Use this parameter to enable or disable the auto turn-off timer function (the time after which you want the switch to automatically turn off once it has been turned on). | 2 | 4 | 0 | 65535 | 0 | From | To | Description |
|---|
0 | 0 | timer disabled | 1 | 65535 | minutes |
| 1 | On/Off Toggle Orientation | Choose if you want to turn the light on or turn the light off when you toggle up the switch. | 2 | 1 | 0 | 2 | 0 | From | To | Description |
|---|
0 | 0 | Toggle up turns the light on, toggle down turns it off (default) | 1 | 1 | Toggle up turns the light off, toggle down turns it on | 2 | 2 | Toggle any direction to turn the light on/off (change state). |
| 9 | Ramp Rate Control | Adjust the ramp rate for your dimmer (fade-in / fade-out effect for on / off operation). Values correspond to the number of seconds it take for the dimmer to reach full brightness or turn off when operated manually. | 2 | 1 | 0 | 99 | 1 | From | To | Description |
|---|
1 | 99 | seconds | 0 | 0 | instant on/off |
| 5 | Auto Turn-On Timer | Use this parameter to enable or disable the auto turn-on timer function (the time after which you want the switch to automatically turn on once it has been turned off). | 2 | 4 | 0 | 65535 | 0 | From | To | Description |
|---|
0 | 0 | timer disabled | 1 | 65535 | minutes |
| 8 | On Off Status After Power Failure | Set the on off status for the switch after power failure. | 2 | 1 | 0 | 2 | 2 | From | To | Description |
|---|
2 | 2 | remembers and restores on/off status after power failure (default) | 0 | 0 | forced to OFF (regardless of state prior to power outage); | 1 | 1 | forced to ON (regardless of state prior to power outage) |
| 10 | Minimum Brightness | Set the minimum brightness level (in %) for your dimmer. You won’t be able to dim the light below the set value. | 2 | 1 | 1 | 99 | 1 | From | To | Description |
|---|
1 | 99 | % brightness |
| 11 | Maximum Brightness | Set the maximum brightness level (in %) for your dimmer. You won’t be able to add brightness to the light beyond the set value. Note: if Parameter 12 is set to value 0, Parameter 11 is automatically disabled. | 2 | 1 | 0 | 99 | 99 | From | To | Description |
|---|
1 | 99 | % brightness | 0 | 0 | instant on/off |
| 25 | Single Tap Behavior | Choose what you'd like the dimmer to do when you tap the toggle up once. | 2 | 1 | 0 | 3 | 0 | From | To | Description |
|---|
0 | 0 | the light will turn on to the last brightness level (default) | 1 | 1 | the light will turn on to the custom brightness level set in parameter 18 | 2 | 2 | the light will turn on to the maximum brightness level set in Parameter 11 | 3 | 3 | the light will turn on to full brightness. |
|
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | This device is equipped with a unique authentication code for trusted wireless communication. Find the full DSK key for the device on the QR sticker located on the green inner box the product came in. | 1 | Classic Inclusion | INCLUSION
1. Initiate inclusion (pairing) in the app (or web interface).
2. TAP UP 3 TIMES QUICKLY if using traditional Z-Wave inclusion.
3. The LED indicator will blink blue to signal communication and turn green for 3 seconds if inclusion is successful or turn red for 3 seconds if the pairing attempt fails. | 2 | Classic Exclusion | EXCLUSION
1. Bring your Z-Wave gateway (hub) close to the switch if possible
2. Put the Z-Wave hub into exclusion mode (not sure how to do that? ask@getzooz.com)
3. Toggle the switch down 3 times quickly (the LED indicator will start blinking blue)
4. Your hub will confirm exclusion, the LED indicator on the switch will turn green for 3 seconds, and the device will disappear from your controller's device list | 5 | Factory Reset Procedure | If your primary controller is missing or inoperable, you may need to reset the device to factory settings. To reset the switch, press and hold the toggle down for 10 seconds until the LED indicator starts blinking. Release toggle, and immediately after, toggle the switch down 5 times to complete the reset. The LED indicator will flash blue 3 times and turn red for 3 seconds to confirm successful reset. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
