Product Recognition | |
|---|
Certification Number | ZC10-20096971 |
|---|
Name | 9 in 1 MULTI-SENSOR |
|---|
Short Description | MCOHome A8-9 is a Z-Wave™ enabled multiple environmental monitoring sensor. |
|---|

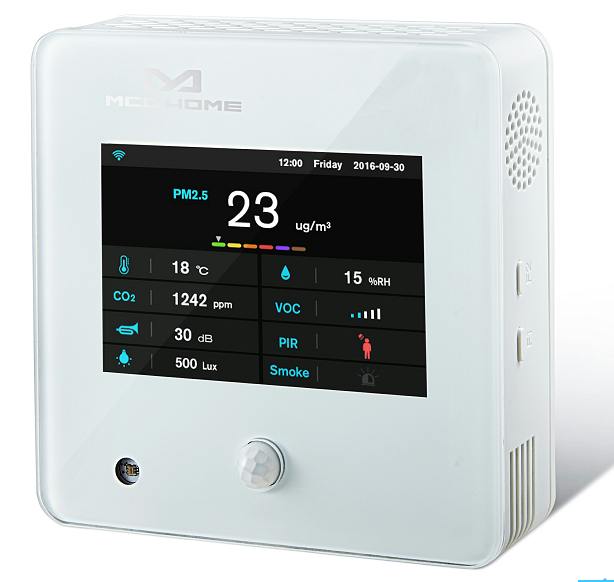

Long Description | MCOHome A8-9 is a Z-Wave™ enabled multiple environmental monitoring sensor, with 3.5 inch TFT clear display and compliant to Z-Wave Plus™ standard. It is built in with Temperature, Humidity, PM2.5, CO2, VOC, PIR, illumination, Noise, Smoke sensor. Device can be added into any Z-Wave™ network, and is compatible with any other Z-Wave™ certified devices. |
|---|
Brand | MCO Home |
|---|
Product Identifier | A8-9 |
|---|
Product Line | AIR QUALITY SENSOR |
|---|
OEM Version | HW: 255 FW: 6.00 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.71.03 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x015F |
|---|
Product Type ID | 0xA803 |
|---|
Product ID | 0x135A |
|---|
User Icon | 0x0DFF |
|---|
Installer Icon | 0x0D00 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_SENSOR_MULTILEVEL_V10 | Sensor Multilevel V10 | 0x31 | 10 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | |
|
|---|
Features | |
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Profile | Description |
|---|
1 | 1 | 0 | Lifeline | 0x0001 | Device supports 1 association group, Association Group 1 is the Lifeline group |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
6 | Parameter 6 | This is the Lux Delta Level which determines when to report the current Illumination value. | 1 | 2 | 0 | 32767 | 0 | From | To | Description |
|---|
0 | 32767 | Value=0 indicates Turn off report , value>=1 indicates to report current Illumination value when change >n*1 Lux |
| 1 | Parameter 1 | This is the PM2.5 Delta Level which determine when to report the current PM2.5 value. | 1 | 1 | 0 | 127 | 0 | From | To | Description |
|---|
0 | 127 | Value=0 indicates Turn off report , value>=1 indicates to report current PM2.5 value when change > n * 1ug/m3 |
| 9 | Parameter 9 | This is the Smoke Delta Level which determines when to report the current Smoke value. | 1 | 1 | 0 | 1 | 1 | From | To | Description |
|---|
0 | 1 | Value=0 indicates Turn off report , value=1 indicates report change |
| 3 | Parameter 3 | This is the temperature Delta Level which determines when to report the current temperature value. | 1 | 1 | 0 | 127 | 0 | From | To | Description |
|---|
0 | 127 | Value=0 indicates Turn off report , value>=1 indicates to report current temperature value when change > n * 0.5℃ |
| 7 | Parameter 7 | This is the dB Delta Level which determines when to report the current Noise value. | 1 | 1 | 0 | 127 | 0 | From | To | Description |
|---|
0 | 127 | Value=0 indicates Turn off report , value>=1 indicates to report current Noise value when change >n*1 dB |
| 4 | Parameter 4 | This is the humidity Delta Level which determines when to report the current humidity value. | 1 | 1 | 0 | 127 | 0 | From | To | Description |
|---|
0 | 127 | Value=0 indicates Turn off report , value>=1 indicates to report current humidity value when change >n% |
| 8 | Parameter 8 | This is the PIR Delta Level which determines when to report the current PIR value. | 1 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 1 | Value=0 indicates Turn off report , value=1 indicates report change |
| 5 | Parameter 5 | This is the VOC Delta Level which determines when to report the current VOC value. | 1 | 1 | 0 | 127 | 0 | From | To | Description |
|---|
0 | 127 | Value=0 indicates Turn off report , value>=1-127*5ppb Report change |
| 2 | Parameter 2 | This is the CO2 Delta Level which determines when to report the current CO2 value. | 1 | 1 | 0 | 127 | 0 | From | To | Description |
|---|
0 | 127 | Value=0 indicates Turn off report , value>=1 indicates to report current CO2 value when change > n * 5ppm |
|
|
|---|
Texts | ID | Description | Value |
|---|
2 | Classic Exclusion | Activate Remove mode in the gateway. When device is powered on, hold F1 to choose interface for Remove Z-Wave network. Click F2 five times until double curved arrow icon turns blue. Hold F2 and the device enters into learning mode, then Wifi icon turns blue and the device is removed from Z-Wave network. | 5 | Factory Reset Procedure | 1, Press & hold F1 to enter Z-Wave setting interface, then press & hold F1 again to enter parameters setting interface;2, Press & hold F2 to enter setting interface and select “default”;3, Click F2 3 times and displays “OFF”-->“ON”-->“OK”-->“OFF”, factory setting is restored.Please use this procedure only when the network primary controller is missing or otherwise inoperable. | 1 | Classic Inclusion | Activate Add mode in the gateway. When device is powered on, hold F1 to choose interface for Add Z-Wave network. Click F2 five times until double curved arrow icon turns blue. Hold F2 and the device enters into learning mode, then Wifi icon turns blue and the device is added into Z-Wave network. |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Illuminance | Humidity | Carbon dioxide CO2-level | Moisture | Particulate Matter 2.5 |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
