Product Recognition
Certification Number	ZC10-17045536

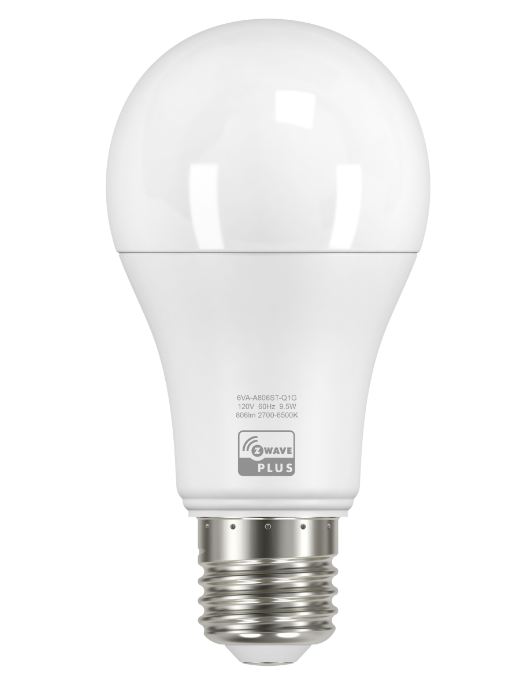

Name	A19 LED BULB RGBW
Short Description	The Leedarson RGBW bulb is based on Z-Wave protocol, realizing basic function of on/of/dim/tunable white, and having capability allows combinations of 16 million colors.
Long Description	Our RGBW bulb has three functional categories: Good, Better and Best. Good is your basic On, Off and Dim. Using your app and controller/gateway, you can turn your lights on, off and dim them down to 5% brightness from anywhere in the world, using your smartphone. At 2700K and 800 lumens, it is a true 60W equivalent. At Better, this is where the innovative technology takes over. You get your basic On, Off and Dim, but now you have the ability to tune the white color from a warm 1800K to a cool 6500K. The ability to tune the white is what we call Tunable White, or TW. The last functional category is Best. With Best, not only do you get On, Off, Dim, and Tunable White, but now we add the colors of Red, Green and Blue. This lighting is what we call RGBW. With Leedarson’s RGBW bulbs, you will get full, saturated colors that are true Reds, true Greens and true Blues. Having this capability allows combinations of 16 Million colors. With all of our lighting, and the app that supports it, you can group lights together, set different lighting scenes for different groups and set schdules to autotmatically turns lights, and groups, on and off. Automatically turning your lights on and off when you’re away, gives the impression you are actually home and this will help deter unwanted entry.
Brand	LEEDARSON
Product Identifier	6VA-A806ST-Q1G
OEM Version	HW: 0 FW: 2.00
Hardware Platform	ZM5101
Z-Wave Version	6.51.09
Library Type	SLAVE_ENHANCED_232
Device Type	Light Dimmer Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0300
Product Type ID	0x0003
Product ID	0x0006
User Icon	0x0600
Installer Icon	0x0600
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Lighting Devices, Dimming Lighting Devices
Countries / Regions	United States of America
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_SWITCH_MULTILEVEL Switch Multilevel 0x26 1 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_SWITCH_ALL Switch All 0x27 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_SWITCH_MULTILEVEL_V2 Switch Multilevel V2 0x26 2 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_SWITCH_COLOR Switch Color 0x33 1 COMMAND_CLASS_CONFIGURATION_V2 Configuration V2 0x70 2 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 Firmware Update Meta-Data V2 0x7A 2 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual User Guide.pdf
Features	Feature Values Firmware Updatable Value Updatable by Manufacturer Communications Protocol Value Manufacturer Proprietary Protocol
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 Z-Wave Plus Lifeline
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 1 get the temperature of NTC. It was used to get the temperature of NTC. 0 1 0 0 0 255 reset Reset to factory configuration and removed the Z-wave network. Reset Configuration parameter to default value. 0 4 0 0 0 From To Description -2004318072 -2004318072 Reset to factory configuration and removed the Z-Wave network. -2013265920 -2013265920 Reset Configuration parameter to default value.
Texts	ID Description Value 2 Exclusion 1. Screw the RGBW bulb into a standard E26 socket. 2. Turn on the bulb with your wall switch to apply power to the bulb. a) If you’re not using a wall switch, then use your alternate method to apply power to the bulb. 3. Activate the “included/excluded” mode on your Z-wave controller or gateway. a) This may also be done through your associated app, if your ecosystem has that capability. 4. Toggle the wall-switch, from OFF, then to ON. a) Or use your alternate method to toggle power from OFF, then to ON. 5. The LED bulb will flash once if it has been successfully “included/ excluded” into your Z-Wave network. Note: If you are using 3rdparty Z-Wave Controller or Gateway, please refer to 3rdParty’s instruction on how to add a new device to your network. Note 2: If the bulb will not join the network after repeated attempts, please use the Factory Reset procedures to clear the bulb’s settings. 1 Inclusion 1. Screw the RGBW bulb into a standard E26 socket. 2. Turn on the bulb with your wall switch to apply power to the bulb. a) If you’re not using a wall switch, then use your alternate method to apply power to the bulb. 3. Activate the “included/excluded” mode on your Z-wave controller or gateway. a) This may also be done through your associated app, if your ecosystem has that capability. 4. Toggle the wall-switch, from OFF, then to ON. a) Or use your alternate method to toggle power from OFF, then to ON. 5. The LED bulb will flash once if it has been successfully “included/ excluded” into your Z-Wave network. Note: If you are using 3rdparty Z-Wave Controller or Gateway, please refer to 3rdParty’s instruction on how to add a new device to your network. Note 2: If the bulb will not join the network after repeated attempts, please use the Factory Reset procedures to clear the bulb’s settings. 5 Factory Reset Physically switch the bulb on and off six (6) times for intervals of 0.5-2 seconds. After the 6th time, the bulb will flash twice indicating that it’s successfully reset. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
Supports NWI	Yes
Supports Explorer Frames	Yes
