Product Recognition | |
|---|
Certification Number | ZC10-18056115 |
|---|

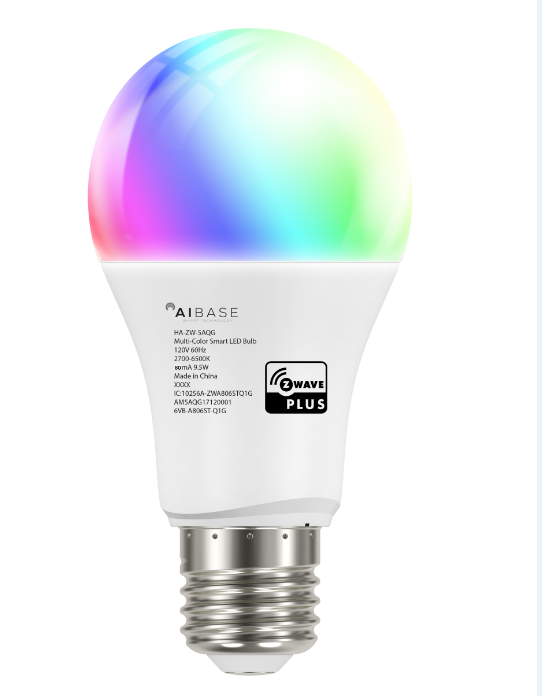

Name | A19 LED BULB RGBW |
|---|
Short Description | ✓ Standard form factor and appearance of the light bulb with 800 lm output
✓ RGBW: dimmable from 5% to 100%, tunable from 1800K to 6500K, and 16 million colors
✓ Possible to be included in groups, scenes, or schedules
✓ Suitable for indoor lighting: Corridors, Bedroom, Living Room, etc. |
|---|
Long Description | AIBASE RGBW Bulb is a switch multilevel device based on Z-Wave enhanced 232 slave libraryof V6.51.09.
RGBW Bulb has 5 main color channels available for you to adjust: Warm white , Cold white,Red,Green and Blue. RGBW Bulb can be included and operated in any Z‐Wave network with other Z‐Wave certifieddevices from other manufacturers and/or other applications. All non‐battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.
The RGBW Bulb is a security Z-Wave device(S0), so a security enabled controller is needed for take full advantage of all functionally for the LED Bulb. It also supports the Over The Air (OTA) feature for the product’s firmware upgrade. |
|---|
Brand | Aibase |
|---|
Product Identifier | HA-ZW-5AQG |
|---|
OEM Version | HW: 0 FW: 2.00 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.51.09 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Light Dimmer Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0384 |
|---|
Product Type ID | 0x0003 |
|---|
Product ID | 0x0003 |
|---|
User Icon | 0x0600 |
|---|
Installer Icon | 0x0600 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, Dimming Lighting Devices |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_SWITCH_ALL | Switch All | 0x27 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_SWITCH_MULTILEVEL_V2 | Switch Multilevel V2 | 0x26 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_SWITCH_COLOR | Switch Color | 0x33 | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 | Firmware Update Meta-Data V2 | 0x7A | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Communications Protocol | Value |
|---|
Manufacturer Proprietary Protocol |
| Firmware Updatable | Value |
|---|
Updatable by Manufacturer |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 1 | 0 | Z-Wave Plus Lifeline
1. When the state of the LED Bulb is changed, Sending Switch Multilevel Report to the associated nodes.
2. Sending Device Reset Locally CC to the associated nodes.
|
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | It is used to get the internal temperture of the bulb. | It is used to get the internal temperture of the bulb. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
-128 | 127 | It is used to get the internal temperture of the bulb. |
| 255 | Resetting | This parameter is used to Reset to factory configuration and remove the node from the Z-Wave network, or to Reset Configuration parameter to their default value. | 0 | 4 | 0 | 0 | 0 | From | To | Description |
|---|
-2004318072 | -2004318072 | Reset to factory configuration and removed the node from the Z-Wave network. | -2013265920 | -2013265920 | Reset Configuration parameter to default value. |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | Add for inclusion:
a) Set the Z-Wave network main controller into adding mode.
b) Power cycle once for the led bulb(OFF->ON).The led bulb will flash once when it has been include into the network. | 2 | Exclusion | Remove for exclusion：
a) Set the Z-Wave network main controller into removing mode.
b) Power cycle once for the led bulb(OFF->ON).Then the led bulb will flash once then dim to 5%,when it has been excluded outside the network. | 5 | Factory Reset | Reset the device :
Led bulb re-power 6 times (between 0.5-2 seconds each time); If the 6th power on, the led bulb flashes twice (first time: red to green to blue gradient transition, second time: 2700K), which means that the resetting is successful.
NOTE:
Using this action in case of the primary controller is missing or inoperable. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
