Product Recognition | |
|---|
Certification Number | ZC10-18106286 |
|---|

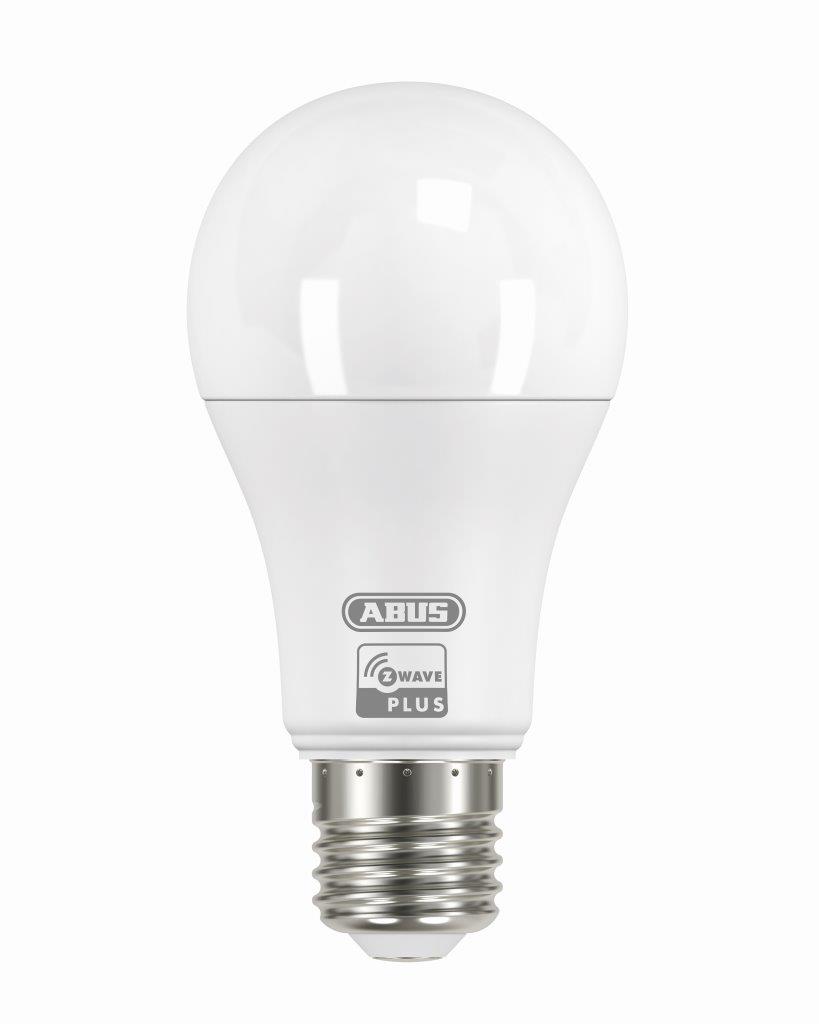

Name | ABUS Z-Wave LED/RGBW Lampe |
|---|
Short Description | The ABUS Z-Wave LED/RGBW Light Bulb is dimmable, provides configurable light colour (RGBW) and light temperature (warm white / cold white). |
|---|
Long Description | The ABUS Z-Wave LED/RGBW Light Bulb is dimmable, provides configurable light colour (RGBW) and light temperature (warm white / cold white). The Bulb fits into any E27 socket and includes a repeater function for extending the range of the Z-Wave radio signal. |
|---|
Brand | ABUS |
|---|
Product Identifier | SHLM10000 |
|---|
OEM Version | HW: 255 FW: 2.23 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.51.09 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Light Dimmer Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0403 |
|---|
Product Type ID | 0x0003 |
|---|
Product ID | 0x0001 |
|---|
User Icon | 0x0600 |
|---|
Installer Icon | 0x0600 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | All Lighting Devices, Dimming Lighting Devices |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_SWITCH_ALL | Switch All | 0x27 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_SWITCH_MULTILEVEL_V2 | Switch Multilevel V2 | 0x26 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_SWITCH_COLOR | Switch Color | 0x33 | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 | Firmware Update Meta-Data V2 | 0x7A | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Communications Protocol | Value |
|---|
Manufacturer Proprietary Protocol |
| Firmware Updatable | Value |
|---|
Updatable by Manufacturer |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 1 | 0 | Z-Wave Plus Lifeline |
|
|---|
Configuration Parameters | Parameter Number | Name | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
255 | reset | 0 | 4 | 0 | 0 | 0 | From | To | Description |
|---|
-2004318072 | 0 | Reset to factory configuration and removed the Z-Wave network | -2013265920 | 0 | Reset Configuration parameter to default value. |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | A.) Screw the LED bulb into a standard E27 socket.
B.) Click the + (Add) button in your Z-Wave App and follow the further instructions
C.) Turn the light-switch on. The App will show if the Add device process was successful and the LED-bulb will flash once. Repeat the inclusion process from step B if it was not successful. | 2 | Exclusion | A.) Click the - (Remove) button in your Z-Wave App and follow the further instructions.
B.) Switch the LED bulb on. The App will show if the Remove device process was successful. The LED bulb will flash once and then dim to 5%. Repeat the exclusion process from step A if it was not successful. | 5 | Factory Reset | 1. Switch the Power supply oft he LED bulb ON and OFF 6 times in a row. (Interval of 0.5 to 2 seconds)
2. When switched on for the 7th time, the LED bulb flashes twice indicating successful reset to factory settings.
Note:
1, This procedure should only be used if the primary gateway is not capable of acting.
2, If the multi-sensor is set to the factory setting, the status is set to ""not included"", the association settings and possible configurations are reset to default. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
