Product Recognition | |
|---|---|
Certification Number | ZC10-18116297 |

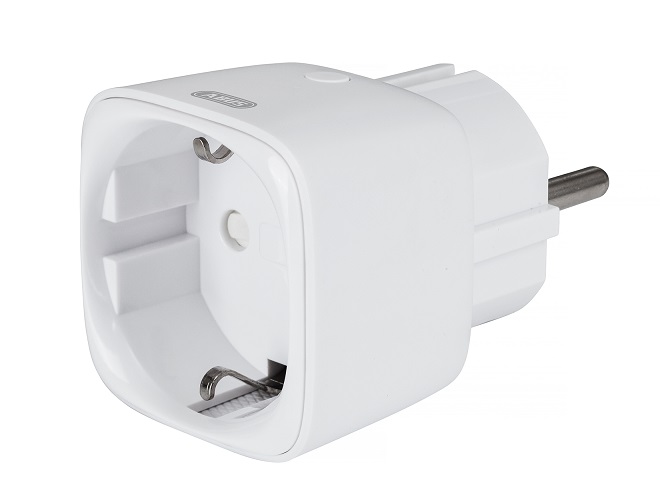

Name | ABUS Z-Wave Wireless-Socket |
Short Description | The ABUS Z-Wave Wireless Socket is a compact plug adapter for switching connected devices and power metering. |
Long Description | the ABUS Z-Wave Wireless Socket is a compact plug adapter for switching connected devices and power metering. It includes a repeater function for extending the range of the Z-Wave radio signal. The Socket can be triggered remotely via the contected Gateway or by a button on the device. |
Brand | ABUS |
Product Identifier | SHHA10000 |
OEM Version | HW: 1 FW: 2.12 |
Hardware Platform | ZM5101 |
Z-Wave Version | 6.71.01 |
Library Type | SLAVE_ENHANCED_232 |
Device Type | On/Off Power Switch |
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
Manufacturer ID | 0x0403 |
Product Type ID | 0x0003 |
Product ID | 0x0003 |
User Icon | 0x0701 |
Installer Icon | 0x0701 |
Frequency Plans | EU: 869.85MHz, 868.40MHz |
Categories | All Lighting Devices, On/Off Switches/Devices |
Countries / Regions | European Union |
Supported Command Classes | |
S2 Classes | S2_UNAUTHENTICATED |
Documents | |
Features | |
Association Groups | |
Configuration Parameters | |
Texts | |
Supported / Controlled Meter Types | |
Supports NWI | Yes |
Supports Explorer Frames | Yes |
Radio Range Z-Wave (m) | 40 |
