Product Recognition
Certification Number	ZC10-16125364

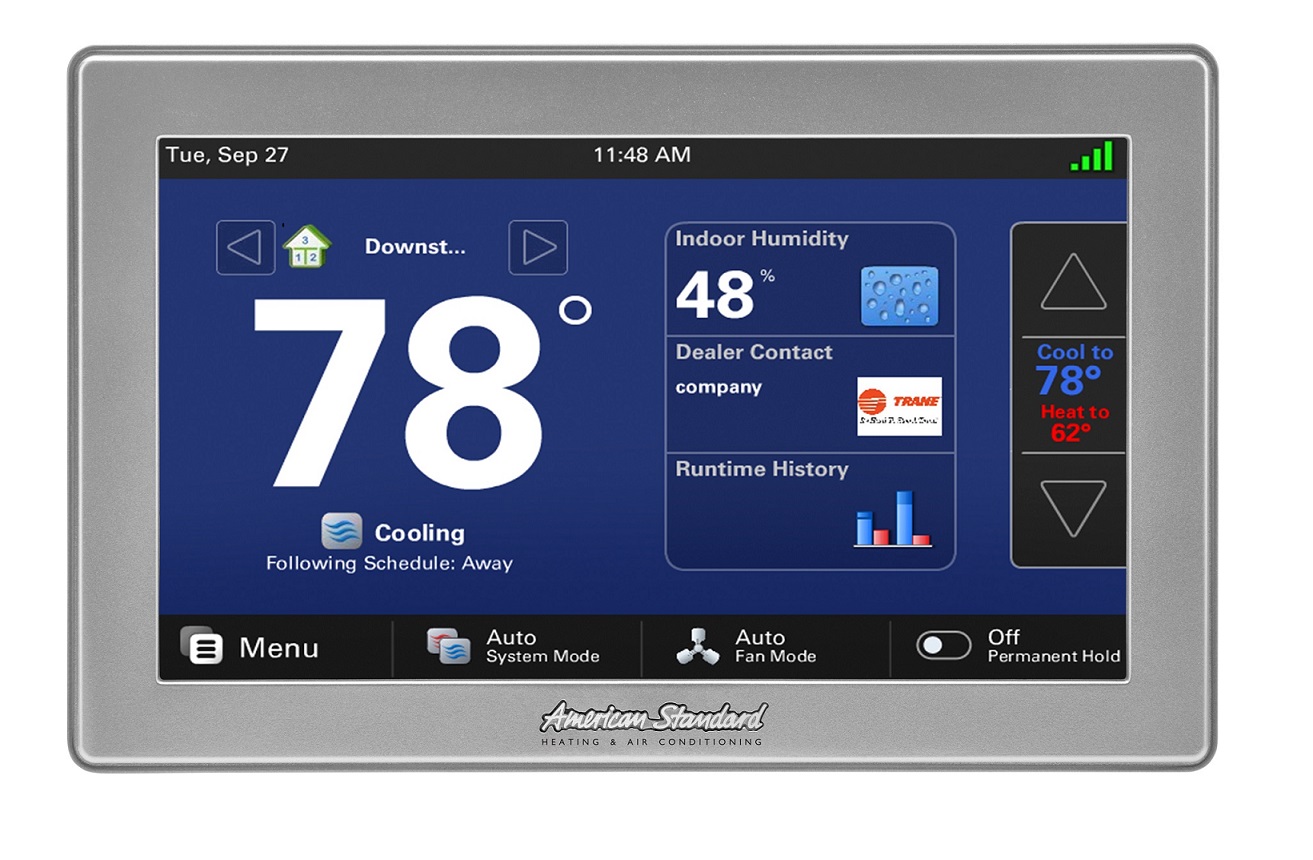

Name	AccuLink II Platinum 1050
Short Description	Embedded within the Platinum 1050 comfort control is a secure Z-Wave Plus Central Static Controller designed to enable remote control of a Z-Wave network from the Nexia Home Intelligence web portal.
Long Description	When enrolled to a Nexia Home Intelligence account, the Platinum 1050 is a Z-Wave Plus security-enabled device that can serve as a central hub for an entire network of home automation devices, including all non-battery powered devices that will act as repeaters on your network. Your Platinum 1050 can also display local weather conditions, five-day forecasts and National Weather Service warnings and alerts.
Brand	American Standard
Product Identifier	AZON1050AC52ZAA
OEM Version	HW: 1 FW: 22.12:22.12
Hardware Platform	ZM5202
Z-Wave Version	6.51.08
Library Type	CONTROLLER_STATIC
Device Type	Central Controller
Role Type	ROLE_TYPE_CONTROLLER_CENTRAL_STATIC
Manufacturer ID	0x008B
Product Type ID	0x4141
Product ID	0x3530
User Icon	0x0100
Installer Icon	0x0100
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Controllers, Gateway Controller
Countries / Regions	United States of America
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_CONTROLLER_REPLICATION Controller Replication 0x21 1 COMMAND_CLASS_APPLICATION_STATUS Application Status 0x22 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_SENSOR_BINARY Sensor Binary 0x30 1 COMMAND_CLASS_SENSOR_MULTILEVEL_V5 Sensor Multilevel V5 0x31 5 COMMAND_CLASS_DOOR_LOCK Door Lock 0x62 1 COMMAND_CLASS_THERMOSTAT_FAN_MODE_V4 Thermostat Fan Mode V4 0x44 4 COMMAND_CLASS_THERMOSTAT_OPERATING_STATE_V2 Thermostat Operating State V2 0x42 2 COMMAND_CLASS_USER_CODE User Code 0x63 1 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi-Channel Association V3 0x8E 3 COMMAND_CLASS_CLOCK Clock 0x81 1 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_THERMOSTAT_MODE Thermostat Mode 0x40 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_HAIL Hail 0x82 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_CENTRAL_SCENE Central Scene 0x5B 1 COMMAND_CLASS_NOTIFICATION_V3 Notification V3 0x71 3 COMMAND_CLASS_THERMOSTAT_SETPOINT_V2 Thermostat Setpoint V2 0x43 2 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_WAKE_UP_V2 Wake Up V2 0x84 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_SWITCH_MULTILEVEL_V3 Switch Multilevel V3 0x26 3 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_MULTI_CHANNEL_V4 Multi-Channel V4 0x60 4 COMMAND_CLASS_METER Meter 0x32 1 COMMAND_CLASS_SCREEN_MD Screen Meta-Data 0x92 1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 Firmware Update Meta-Data V2 0x7A 2 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2 COMMAND_CLASS_MULTI_CMD Multi-Command 0x8F 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual AmStd_12-5062-01_final.pdf
Features	Feature Values Color Value Silver Communications Protocol Value Z-Wave Serial API Firmware Updatable Value Updatable by Consumer via Internet
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Z-Wave Plus Lifeline. A Device Reset Locally Notification is sent to associated nodes when the bridge is factory reset.
Texts	ID Description Value 23 Controller Inclusion From the HOME Screen, press MENU on the control, then press NEXIA. Next press ADD DEVICE and follow the device manufacturer's instructions for setting the Z-Wave device into learn mode. You will have four minutes to set the device into learn mode after pressing the ADD DEVICE button. 24 Controller Exclusion From the HOME Screen, press MENU on the control, then press NEXIA. Next press REMOVE DEVICE and follow the device manufacturer's instructions for setting the Z-Wave device into learn mode. You will have four minutes to set the device into learn mode after pressing the REMOVE DEVICE button. 5 Factory Reset From the HOME Screen, press MENU on the control, then press NEXIA. Press ADVANCED, then FACTORY RESET. If this bridge is being used as a secondary or inclusion controller in the network, please reset this bridge only in the event that the primary controller is missing or otherwise inoperable. 3 Learn Mode (adding another controller) Follow the device manufacturer's instructions of your primary controller for putting the controller into inclusion mode. From the HOME Screen, press MENU on the control, then press NEXIA. Press ADVANCED, then LEARN. Your XL1050 will be added to the network of your primary controller.
Supports NWI	Yes
Supports Explorer Frames	Yes
