Product Recognition | |
|---|---|
Certification Number | ZC10-19016350 |

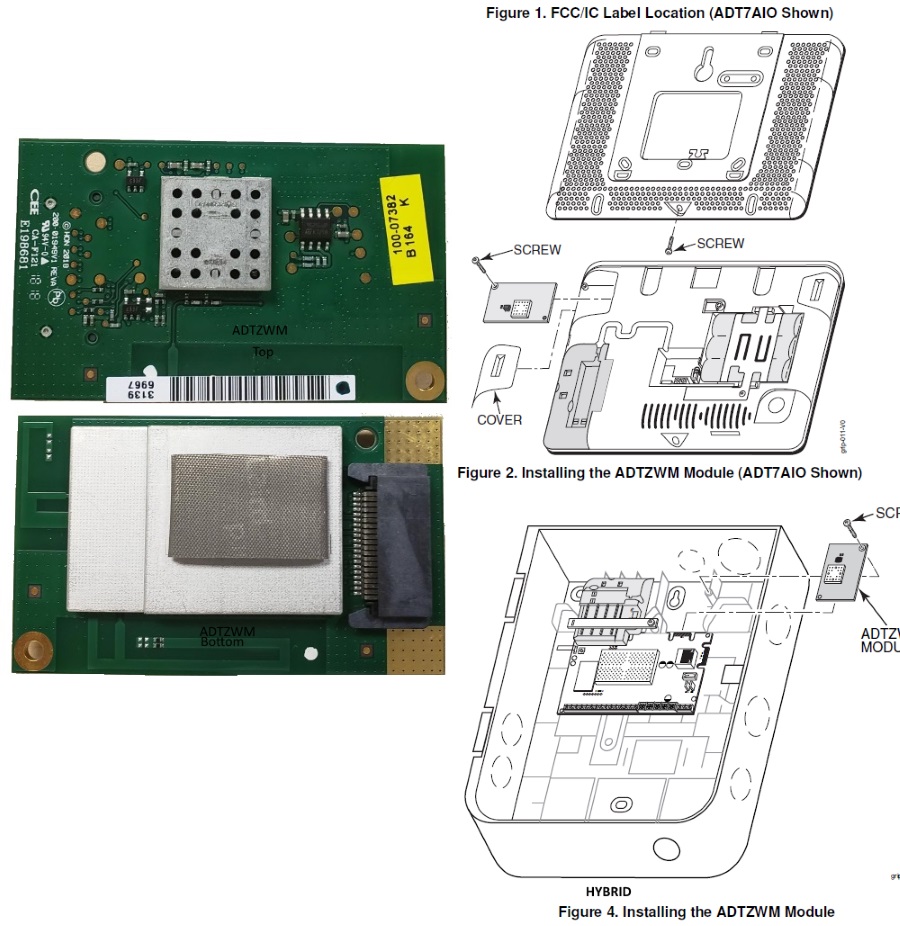

Name | ADTZWM - Wi-Fi® and Z-Wave® Module for Command |
Short Description | The ADT Command portfolio with modular Z-Wave home automation support. |
Long Description | The ADT Command portfolio is a series of panels that provides an integrated solution for fire/security monitoring in addition to home automation. The panel portfolio is easy to use, it comes in various panel form factors such as Self Contained and Hybrid, the system is optimized for use with home automation. The panels supports a range of wireless devices via SIX, WiFi and Z-Wave. Installers set up and configure the panel through a smartphone app and cloud-based portal. End users also interact with the system using an intuitive smartphone app or optional touchscreen/push-button keypad. |
Brand | ADT Security Services Inc. |
Product Identifier | ADTZWM for Command |
OEM Version | HW: 88 FW: 5.14:03.16 |
Hardware Platform | ZM5202 |
Z-Wave Version | 6.81.00 |
Library Type | CONTROLLER_STATIC |
Device Type | Central Controller |
Role Type | ROLE_TYPE_CONTROLLER_CENTRAL_STATIC |
Manufacturer ID | 0x0094 |
Product Type ID | 0x000B |
Product ID | 0x010B |
User Icon | 0x0500 |
Installer Icon | 0x0500 |
Frequency Plans | US: 916.00MHz, 908.40MHz |
Categories | Security Systems |
Countries / Regions | United States of America |
Supported Command Classes | |
Controlled Command Classes | |
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED, S2_ACCESS_CONTROL |
Documents | |
Features | |
Association Groups | |
Texts | |
Supports NWI | Yes |
Supports Explorer Frames | Yes |
Radio Range Z-Wave (m) | 40 |
