Product Recognition
Certification Number	ZC10-17045531

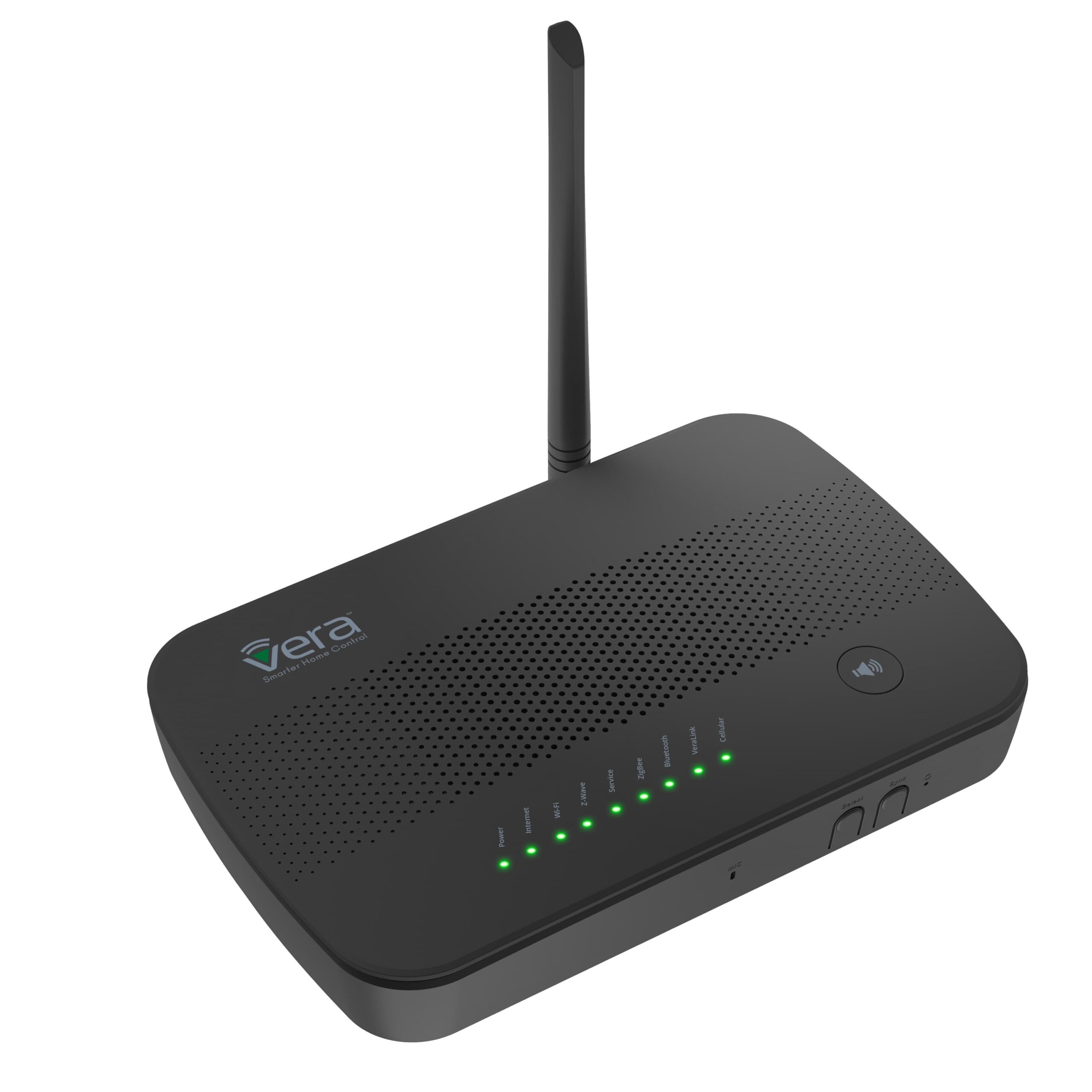

Name	Advanced Smart Home Security Controller
Short Description	Easily installed alarm system and home control hub. Add cameras, locks, sensors, thermostats and security devices. Built-in siren and battery/cellular backups. View and control anywhere.
Long Description	VeraSecure is an easy-to-install comprehensive home controller/alarm hub. It’s like an alarm security panel in a box. Just add sensors, cameras and locks – choosing from dozens of brands – and VeraSecure does the rest. VeraSecure does more than security – you can adjust thermostats, control lights, garage doors, and more. Operate everything from one easy app on your smartphone, tablet or computer. Get The Security & Peace Of Mind… • Of Never Arriving Home To A Dark House o Automatically schedule your lights to turn on before you enter your home with a VeraSecure System. • Of Being Sure When Your Kids Come Home o Receive notifications automatically with your motion sensor & security camera connected to your VeraSecure System. • Of Knowing Your Home Is Safe o Cameras, sensors and siren ensure your home is being monitored from anywhere on your mobile device. • Of Watching What Your Pet Is Up To o With your VeraSecure System and security camera you can always ensure your pet is safe. • Of Knowing You Are Saving Money o By never wasting energy in your home with control of lighting, heating and cooling. Get Maximum Compatibility & Performance • Comprehensive wireless connectivity with Z-Wave, ZigBee, Bluetooth LE, VeraLink (433/345 Mhz), 802.11a/b/g/n/ac Wi-Fi • 3G cellular connection keeps home protected even when Internet goes out • Built-in backup battery protects home during power outages (4-8 hours) • Built-in Siren for local alarm notification • 2-Way audio for optional VeraProtect 24/7 alarm monitoring service
Brand	Vera Control, Ltd.
Product Identifier	VeraSecure - US
OEM Version	HW: 4 FW: 4.05:03.07
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	CONTROLLER_STATIC
Device Type	Gateway
Role Type	ROLE_TYPE_CONTROLLER_CENTRAL_STATIC
Manufacturer ID	0x008C
Product Type ID	0x0001
Product ID	0x0025
User Icon	0x0500
Installer Icon	0x0500
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Controllers, Gateway Controller
Countries / Regions	United States of America
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_SENSOR_BINARY Sensor Binary 0x30 1 COMMAND_CLASS_SCENE_ACTUATOR_CONF Scene Actuator Conf 0x2C 1 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_CONTROLLER_REPLICATION Controller Replication 0x21 1 COMMAND_CLASS_APPLICATION_STATUS Application Status 0x22 1 COMMAND_CLASS_TIME_PARAMETERS Time Parameters 0x8B 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_SWITCH_MULTILEVEL_V3 Switch Multilevel V3 0x26 3 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_MANUFACTURER_SPECIFIC Manufacturer Specific 0x72 1 COMMAND_CLASS_SCENE_ACTIVATION Scene Activation 0x2B 1 COMMAND_CLASS_MULTI_CMD Multi-Command 0x8F 1
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_SENSOR_BINARY Sensor Binary 0x30 1 COMMAND_CLASS_CLIMATE_CONTROL_SCHEDULE Climate Control Schedule 0x46 1 COMMAND_CLASS_SENSOR_ALARM Sensor Alarm 0x9C 1 COMMAND_CLASS_SENSOR_MULTILEVEL_V5 Sensor Multilevel V5 0x31 5 COMMAND_CLASS_NODE_NAMING Node Naming 0x77 1 COMMAND_CLASS_THERMOSTAT_FAN_MODE Thermostat Fan Mode 0x44 1 COMMAND_CLASS_USER_CODE User Code 0x63 1 COMMAND_CLASS_DOOR_LOCK_V2 Door Lock V2 0x62 2 COMMAND_CLASS_ALARM_V2 Alarm V2 0x71 2 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi-Channel Association V3 0x8E 3 COMMAND_CLASS_CONTROLLER_REPLICATION Controller Replication 0x21 1 COMMAND_CLASS_CLOCK Clock 0x81 1 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_APPLICATION_STATUS Application Status 0x22 1 COMMAND_CLASS_TIME Time 0x8A 1 COMMAND_CLASS_THERMOSTAT_OPERATING_STATE Thermostat Operating State 0x42 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_HAIL Hail 0x82 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_CENTRAL_SCENE Central Scene 0x5B 1 COMMAND_CLASS_THERMOSTAT_MODE_V2 Thermostat Mode V2 0x40 2 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_WAKE_UP_V2 Wake Up V2 0x84 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_BARRIER_OPERATOR Barrier Operator 0x66 1 COMMAND_CLASS_SWITCH_MULTILEVEL_V3 Switch Multilevel V3 0x26 3 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_MULTI_CHANNEL_V4 Multi-Channel V4 0x60 4 COMMAND_CLASS_THERMOSTAT_SETPOINT Thermostat Setpoint 0x43 1 COMMAND_CLASS_METER_TBL_MONITOR Meter Table Monitor 0x3D 1 COMMAND_CLASS_MANUFACTURER_SPECIFIC Manufacturer Specific 0x72 1 COMMAND_CLASS_SWITCH_COLOR Switch Color 0x33 1 COMMAND_CLASS_METER_PULSE Meter Pulse 0x35 1 COMMAND_CLASS_CONFIGURATION_V2 Configuration V2 0x70 2 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 Firmware Update Meta-Data V2 0x7A 2 COMMAND_CLASS_METER_V2 Meter V2 0x32 2 COMMAND_CLASS_MULTI_CMD Multi-Command 0x8F 1 COMMAND_CLASS_SCHEDULE_ENTRY_LOCK_V3 Schedule Entry Lock V3 0x4E 3
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual VeraSecure_QSG_Z-Wave_Overview.pdf
Features	Feature Values Communications Connections Value Ethernet (Wired) Ethernet (Wireless/WiFi) Bluetooth USB (Universal Serial Bus) Color Value Black Communications Protocol Value Z-Wave Serial API Firmware Updatable Value Updatable by Manufacturer Battery Type Value Rechargable Li-on Sensors Value Air Temperature Luminance Humidity Power Current Seismic Intensity Carbon Dioxide
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 Z-Wave Plus Lifeline
Texts	ID Description Value 23 Controller Inclusion To include a Z-Wave device into the Z-Wave network using the VeraSecure Controller, use the Vera Custom or Generic Device Wizard on the Vera Dashboard on the Web UI/App and follow the on- screen instructions. During normal installation of Z-Wave devices you do NOT need to use the buttons on the Controller. The following are for manually starting Z-Wave Include Mode. Press the Select button 2 times and then press the Sync button on the Controller. To exit the inclusion mode on the Controller, press and hold the Select button for 6 seconds. 24 Controller Exclusion To exclude a Z-Wave device from the Z-Wave network using the VeraSecure Controller, use the Vera Custom or Generic Device Wizard on the Vera Dashboard on the Web UI/App and follow the on- screen instructions. During normal installation of Z-Wave devices you do NOT need to use the buttons on the Controller. The following are for manually starting Z-Wave Include Mode. Press the Select button 2 times and then press the Sync button for at least 3 seconds and release. 5 Factory Reset If this controller is the primary controller for your network, resetting it will result in the nodes in your network being orphaned and it will be necessary after the reset to exclude and re-include all of the nodes in the network. If this controller is being used as a secondary controller in the network, use this procedure to reset this controller only in the event that the network primary controller is missing or otherwise inoperable. Reset to Network defaults - Press the Reset button 3 times in 6 seconds. To reset the controller, press the Reset button 6 times in 6 seconds. This will reset it to factory default. 3 Learn Mode (adding another controller) To include the Controller into an existing Z-Wave network, use the UI and follow the steps below. Click on Settings -> Z-Wave Settings -> Advanced, select 'Copy Z-Wave network from a primary controller. This will shift the controller to have a secondary controller role and will receive data from the primary controller in the network.
Supports NWI	Yes
Supports Explorer Frames	Yes
