| Product Recognition | — |
|---|---|
| Certification Number | ZC08-11010004 |

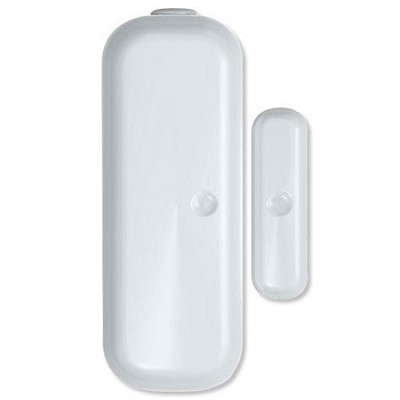

| Name | Aeon Labs Door/Window Sensor |
| Long Description | The Aeon Labs Door/Window Sensor is a battery-powered Z-Wave magnetic door/window sensor with an extremely small form factor. The D/W sensor will send radio signals up to 6 associated Z-Wave devices within its own Z-Wave network when the main unit separates from the smaller unit. Bidirectional mounting plate and push button allows for easy end-user installation. The Aeon Labs Door/Window Sensor also has tamper prevention capabilities and low-battery alerts. |
| Brand | Aeotec |
| Product Identifier | DSB04100-ZWUS |
| OEM Version | DSB04100-ZWUS v3.05 |
| Hardware Platform | ZM3102 |
| Z-Wave Version | 4.51 |
| Library Type | SLAVE_ROUTING |
| Device Type | Not Z-Wave Plus |
| Manufacturer ID | 0x0086 |
| Product Type ID | 0x0002 |
| Product ID | 0x0004 |
| Frequency Plans | US: 916.00MHz, 908.40MHz |
| Categories | Sensors |
| Countries / Regions | United States of America |
