Product Recognition | |
|---|
Certification Number | ZC10-20076945 |
|---|

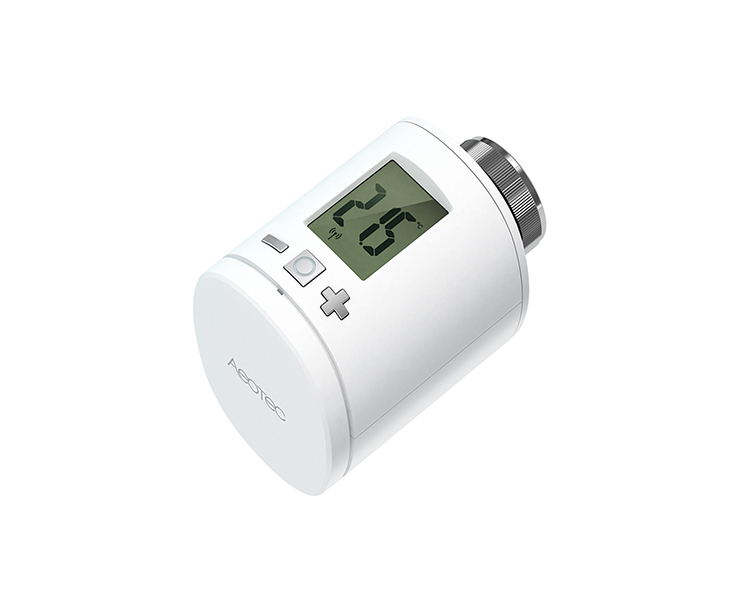

Name | Aeotec Radiator Thermostat |
|---|
Short Description | Smart Radiator Thermostat for the installation on heating panels. Measures the room temperature and regulates it to the desired temperature. |
|---|
Long Description | With the Aeotec Radiator Thermostat you get many functions. It regulates the room temperature to your comfort. For the best use it is equipped with FLiRS (Frequently Listening Receiver Slave) and reacts immediately to incoming commands of the Z-Wave controller. Furthermore the device is able to be connected to an external Z-Wave temperature sensor. Because of that the thermostat refers to the temperature of the external sensor, which can be placed in the middle of the room.
The display of the thermostat has a background light and has a big LCD screen. Besides you can also lock the local buttons as a child protection.
The multicolor LED of the central button allows a intuitive usability because the User is invited to follow the instruction based on the blinking LED of the middle butto.
The TRV can either be used as heating thermostat or as a actuator depending on the configuration of the device. The measured temperature or the position of the actuator of the thermostat are transfered to the Z-Wave gateway. |
|---|
Brand | Aeotec |
|---|
Product Identifier | 4251295701387 |
|---|
Product Line | Radiator Thermostat |
|---|
OEM Version | HW: 49 FW: 0.16:00.10 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.71.01 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Thermostat - HVAC |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
|---|
Manufacturer ID | 0x0371 |
|---|
Product Type ID | 0x0002 |
|---|
Product ID | 0x0016 |
|---|
User Icon | 0x1200 |
|---|
Installer Icon | 0x1200 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Thermostats |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SWITCH_MULTILEVEL | Switch Multilevel | 0x26 | 1 | COMMAND_CLASS_SENSOR_MULTILEVEL_V5 | Sensor Multilevel V5 | 0x31 | 5 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_THERMOSTAT_MODE_V3 | Thermostat Mode V3 | 0x40 | 3 | COMMAND_CLASS_THERMOSTAT_SETPOINT_V3 | Thermostat Setpoint V3 | 0x43 | 3 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC | Manufacturer Specific | 0x72 | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_PROTECTION | Protection | 0x75 | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V3 | Firmware Update Meta-Data V3 | 0x7A | 3 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | | Manual_English | Product Manual in English | |
|
|---|
Features | Feature | Values |
|---|
Battery Quantity | | Color | | Thermostat HVAC Systems Supported | | Thermostat Modes | Value |
|---|
Resume | Energy Save Heat |
| Battery Type | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
1 | 1 | 0 | Lifeline | Lifeline group to Gateway |
|
|---|
Configuration Parameters | Parameter Number | Name | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | LCD invert | 1 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | Normal orientation | 1 | 1 | LCD content inverted |
| 3 | Backlight | 1 | 1 | 0 | 1 | 1 | From | To | Description |
|---|
0 | 0 | Backlight disabled | 1 | 1 | Backlight enabled |
| 4 | Battery report | 1 | 1 | 0 | 1 | 1 | From | To | Description |
|---|
0 | 0 | Battery reporting disabled | 1 | 1 | Battery reporting enabled |
| 5 | Measured temperature report | 1 | 1 | 0 | 50 | 0 | From | To | Description |
|---|
0 | 0 | Reporting disabled | 1 | 50 | Reporting Delta in 1/10 Celcius |
| 6 | Valve percentage report | 1 | 1 | 0 | 100 | 0 | From | To | Description |
|---|
0 | 0 | Reporting disabled | 1 | 100 | Reporting Delta in percent |
| 7 | Window open detection | 1 | 1 | 0 | 3 | 0 | From | To | Description |
|---|
0 | 0 | Detection disabled | 1 | 3 | Sensitivity level |
| 8 | Measured temperature offset | 1 | 1 | -128 | 50 | 0 | From | To | Description |
|---|
-50 | 50 | Offset in 1/10 Celcius | -128 | -128 | Temperature is supplied externaly |
|
|
|---|
Texts | ID | Description | Value |
|---|
2 | Classic Exclusion | Set your Z-Wave primary Controller into exclusion mode. Press and hold the Boost button for 5 seconds. The LCD screen of the sensor will show "LEA". Leave the Radiator thermostat as it is until the multicolor LED will light up green and the LCD screen will show "0". If the exclusion failed, the screen will show the failed code "18". | 5 | Factory Reset Procedure | Remove batteries.
Press and hold boost button.
While still holding boost button insert batteries.
The LCD shows RES. Release boost button.
To perform the factory reset press boost button. | 1 | Classic Inclusion | Start the Inclusion mode of your primary Z-Wave Controller. Press the Boost-Button of the Thermoast. The Radiator thermostat will show the assigned NodeID. | 4 | Wake-Up Procedure | This device is a FLIRS device. There is no procedure to wake up the device, because it will receive commands immediately and is always listening. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Power Management | (Refer to parameters): State idle |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Air temperature |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Is Flirs | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
