Certification Number | ZC10-19096741 |
|---|

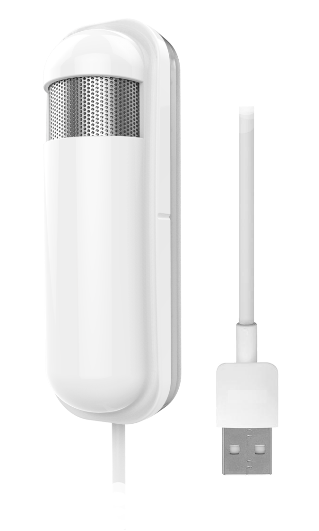

Name | Air Quality Multi Sensor |
|---|
Short Description | The PAT05 multi-sensor is a device that allows you to check the air quality in your home. |
|---|
Long Description | The PAT05 multi-sensor is a device that allows you to check the air quality in your home. The PAT05 Multi-sensor is easy to use and very convenient for your home. Just set the sensor on the wall of the rooms you would like to control, and you are ready to go. Moreover, the PAT05 can be integrated to other Z-Wave certified devices, and controlled with Philio app “Home Mate 2.” You can now protect your family and make sure there are no gas leaks that can harm those you love the most. Set up your PAT05 to send regular notifications and take control even when not at home.
This device is a security enabled Z-Wave Plus product that is able to use encrypted Z-Wave Plus messages to communicate to other security enabled Z-Wave Plus products. Z-WaveTM enabled devices displaying the Z-WaveTM logo can also be used with it regardless of the manufacturer, and ours can also be used in other manufacturer’s Z-WaveTM enabled networks.
The product supports Over The Air(OTA) feature for the products firmware upgrade.
This product can be included and operated in any Z-WaveTM network with other Z-WaveTM certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.
The device adopt the Z-WaveTM 500 series chip, when your Z-WaveTM network system is all made by Z-WaveTM 500 series devices. The network system will have the advantages as below. |
|---|
Brand | Philio Technology |
|---|
Product Identifier | PAT05 |
|---|
Product Line | Philio Z-Wave Products |
|---|
OEM Version | HW: 1 FW: 1.01:01.01 |
|---|
Hardware Platform | SD3502 |
|---|
Z-Wave Version | 6.81.03 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x013C |
|---|
Product Type ID | 0x0002 |
|---|
Product ID | 0x0052 |
|---|
User Icon | 0x0D00 |
|---|
Installer Icon | 0x0D00 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_SENSOR_MULTILEVEL_V11 | Sensor Multilevel V11 | 0x31 | 11 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_English | Product Manual in English | | Manual_Primary_Lang | Product Manual | |
|
|---|
Features | Feature | Values |
|---|
Firmware Updatable | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
1 | 1 | 0 | Lifeline | Group 1 command list COMMAND_CLASS_DEVICE_RESET_LOCALLY |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
4 | eCO2 Threshold line 2 | eCO2 difference return: The Unit is 100ppm. 0 means turn off eCO2 detected function. When there is a set value, it means that it will exceed or fall below the report. | 1 | 1 | 0 | 100 | 0 | | 6 | eCO2 Threshold line 4 | eCO2 difference return: The Unit is 100ppm. 0 means turn off eCO2 detected function. When there is a set value, it means that it will exceed or fall below the report. | 1 | 1 | 0 | 100 | 0 | | 7 | eCO2 Threshold line 5 | eCO2 difference return: The Unit is 100ppm. 0 means turn off eCO2 detected function. When there is a set value, it means that it will exceed or fall below the report. | 1 | 1 | 0 | 100 | 0 | | 8 | TVOC Threshold line 1 | TVOC difference return: The Unit is 100ppb. 0 means turn off TVOC detected function. When there is a set value, it means that it will exceed or fall below the report. | 1 | 1 | 0 | 100 | 0 | | 9 | TVOC Threshold line 2 | TVOC difference return: The Unit is 100ppb. 0 means turn off TVOC detected function. When there is a set value, it means that it will exceed or fall below the report. | 1 | 1 | 0 | 100 | 0 | | 10 | TVOC Threshold line 3 | TVOC difference return: The Unit is 100ppb. 0 means turn off TVOC detected function. When there is a set value, it means that it will exceed or fall below the report. | 1 | 1 | 0 | 100 | 0 | | 11 | TVOC Threshold line 4 | TVOC difference return: The Unit is 100ppb. 0 means turn off TVOC detected function. When there is a set value, it means that it will exceed or fall below the report. | 1 | 1 | 0 | 100 | 0 | | 3 | eCO2 Threshold line 1 | eCO2 difference return: The Unit is 100ppm. 0 means turn off eCO2 detected function. When there is a set value, it means that it will exceed or fall below the report. | 1 | 1 | 0 | 100 | 0 | | 5 | eCO2 Threshold line 3 | eCO2 difference return: The Unit is 100ppm. 0 means turn off eCO2 detected function. When there is a set value, it means that it will exceed or fall below the report. | 1 | 1 | 0 | 100 | 0 | | 17 | eCO2 Differential percent Report | The eCO2 Differential to report. 0 means turn off this function. The unit is percentage. Enable this function the device will detect every percentage. And when the lightSensor is over 10 percentage, it will continue report. | 1 | 1 | 0 | 100 | 10 | |
|
|---|
Texts | ID | Description | Value |
|---|
1 | Classic Inclusion | 1. Have Z-WaveTM Controller entered inclusion mode.
2. Pressing tamper key three times within 2 seconds to enter the inclusion mode. | 2 | Classic Exclusion | 1. Have Z-WaveTM Controller entered exclusion mode.
2. Pressing tamper key three times within 2 seconds to enter the exclusion mode.
3. Node ID has been excluded. | 5 | Factory Reset Procedure | 1. Pressing Include button of PAT05 three times within 2 seconds will enter inclusion mode.
2. Within 1 second, press Include button of PAT05 again for 5 seconds.
3. Node ID has been reset excluded.
Please use this procedure only when the network primary controller is missing or otherwise inoperable. | 8 | Where to find S2 DSK on product | The DSK can be found on the front of your product. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Home Security | Tampering, invalid code |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Carbon dioxide (CO2-level) | Volatile Organic Compound level |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
