Product Recognition | |
|---|
Certification Number | ZC12-21010171 |
|---|

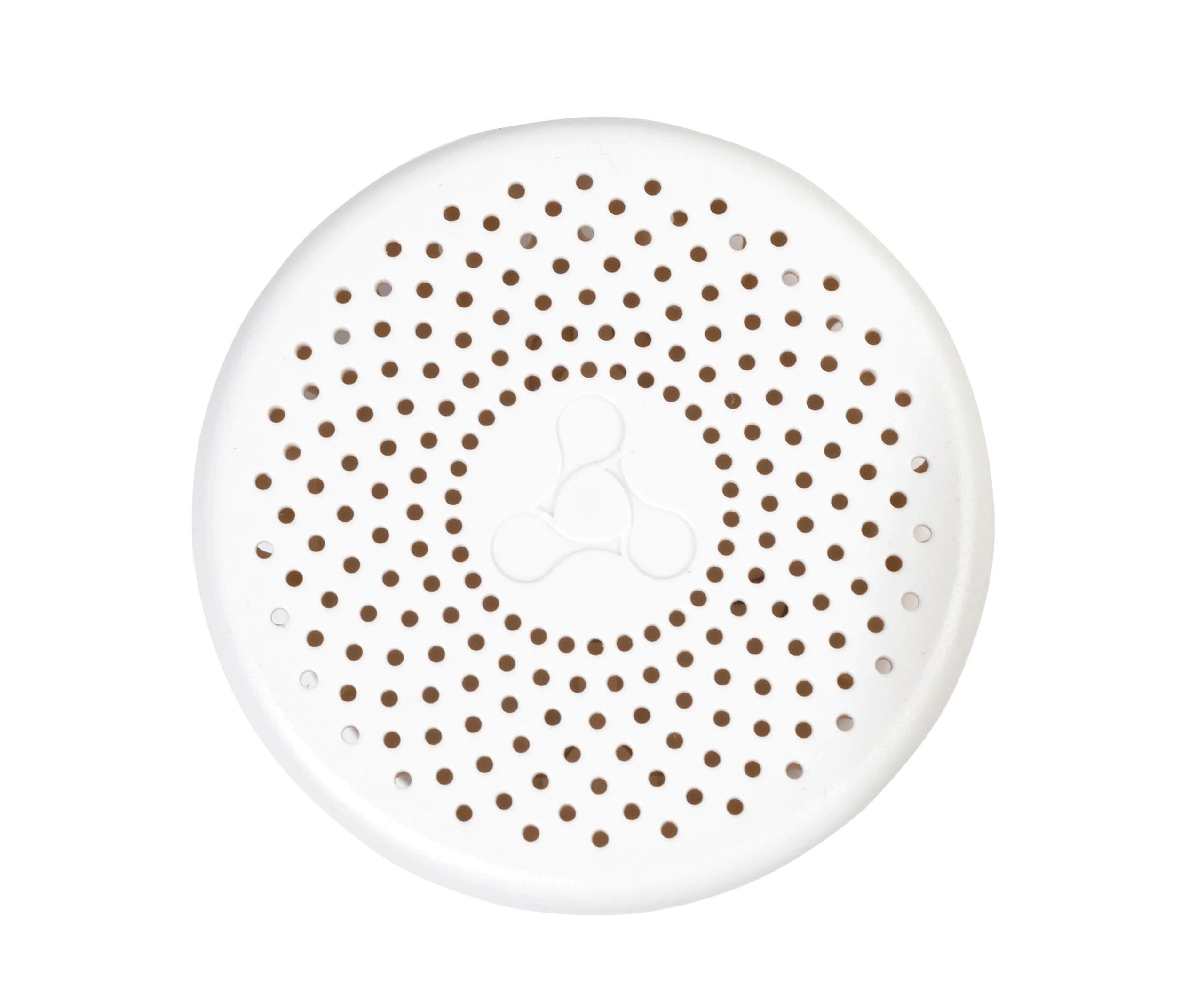

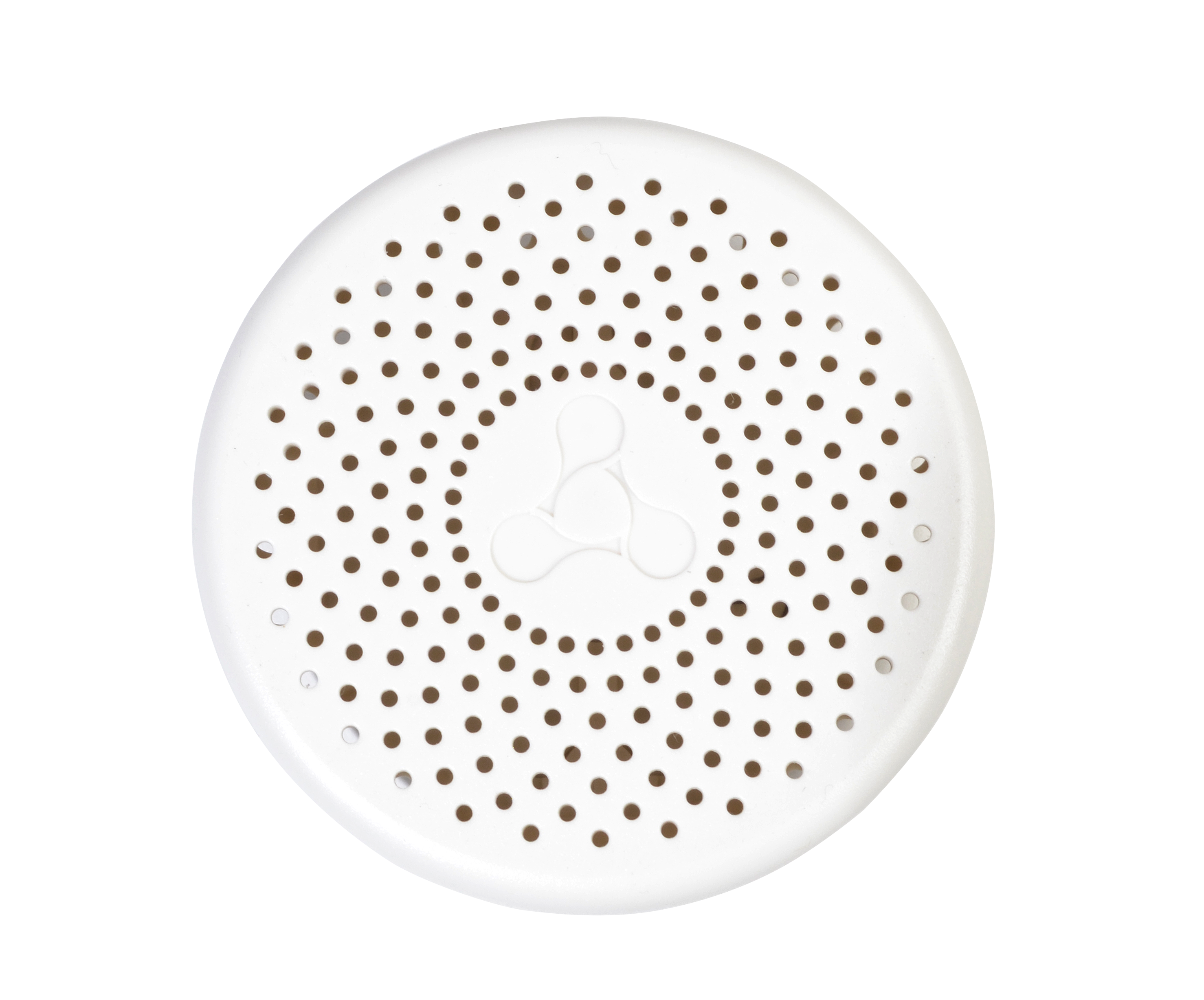

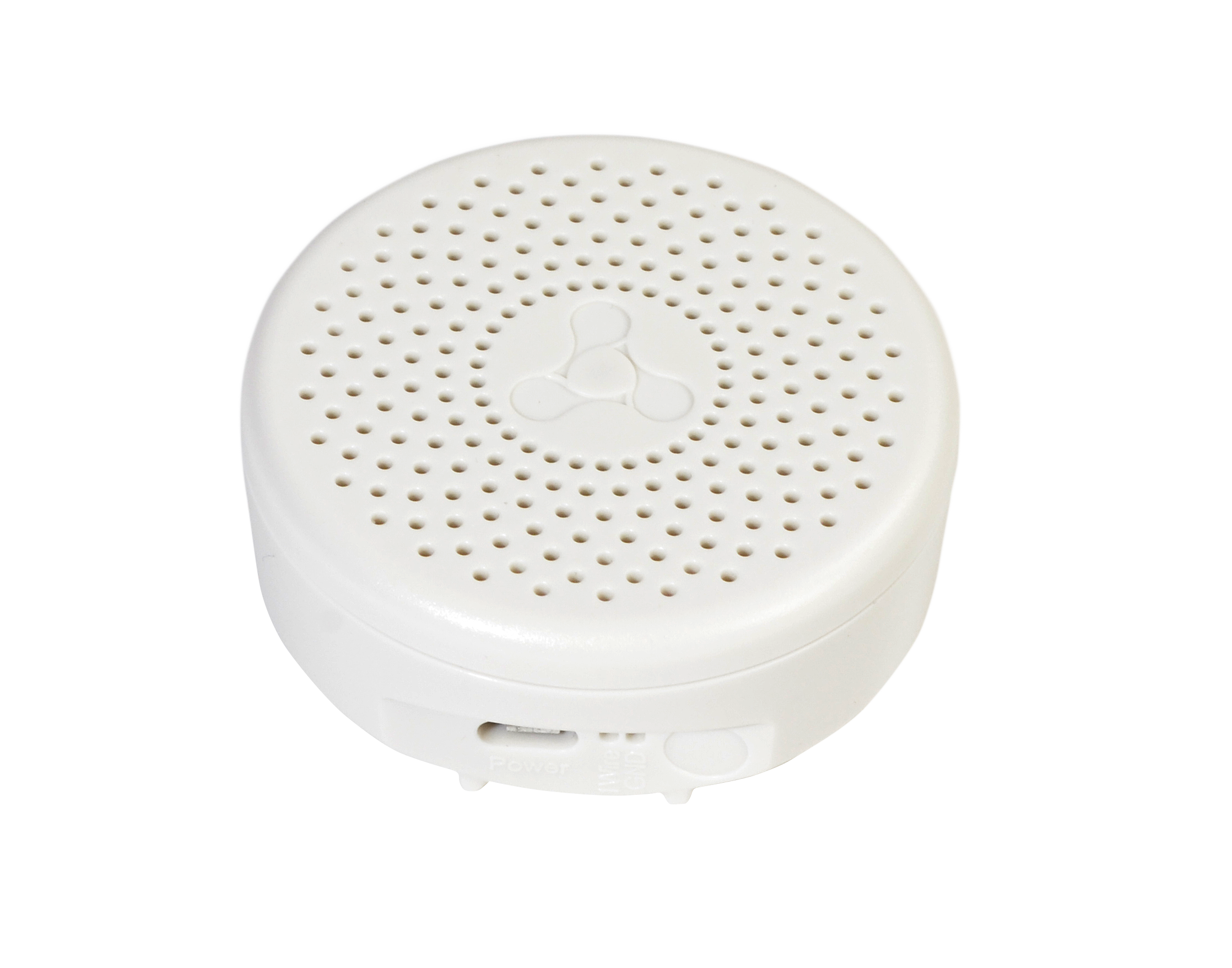

Name | Air quality sensor |
|---|
Short Description | SZ-AIR-HTQ01 is a multifunctional sensor that
measures the following parameters: temperature, relative humidity, CO2 and tVOC. |
|---|
Long Description | Air quality sensor SZ-AIR-HTQ01 is a multifunctional sensor that
measures the following parameters: temperature, relative humidity, CO2 and tVOC. The sensor supports the Z-Wave Plus v2 protocol, which means support for encryption and firmware updates «Over The Air» (OTA update). The device can operate in any Z-Wave network with certified devices from any other manufacturer. The device uses Z-Wave series 700 chip. |
|---|
Brand | Eltex |
|---|
Product Identifier | SZ-AIR-HTQ01 |
|---|
Product Line | Smart cloud |
|---|
OEM Version | HW: 1 FW: 1.01 |
|---|
Hardware Platform | ZGM130 |
|---|
Z-Wave Version | 7.13.6 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x039B |
|---|
Product Type ID | 0x0003 |
|---|
Product ID | 0x000A |
|---|
User Icon | 0x0D00 |
|---|
Installer Icon | 0x0DFF |
|---|
Frequency Plans | RU: 869.00MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | Russian Federation |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta-Data V5 | 0x7A | 5 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information V3 | 0x59 | 3 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_SENSOR_MULTILEVEL_V11 | Sensor Multilevel V11 | 0x31 | 11 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
1 | 5 | 0 | Lifeline | General messages: reset locally, indicator, notification and sensor multilevel. | 2 | 5 | 0 | Temperature | Temperature reports | 3 | 5 | 0 | Humidity | Humidity reports | 4 | 5 | 0 | CO2 level | Reports on the level of CO2 | 6 | 5 | 0 | Heat alarms | The group for heat alarms | 5 | 5 | 0 | tVOC level | Total volatile Organic Compaund level | 7 | 5 | 0 | CO2 alarms | The group for CO2 level changing alarms | 8 | 5 | 0 | Home health alarms | Home health alarms |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
7 | CC_TYPE_COMMAND_INDICATE_CONTROL | Set indicate control | 2 | 2 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 1 | Enable (1) or disable (0) air quality indication |
| 5 | CC_TYPE_COMMAND_MID_TVOC | Set middle level tVOC | 2 | 2 | 100 | 1000 | 550 | From | To | Description |
|---|
100 | 1000 | The average level of total volitile organic compound in ppb |
| 4 | CC_TYPE_COMMAND_MIN_TVOC | Set minimum level tVOC | 2 | 2 | 0 | 99 | 65 | From | To | Description |
|---|
0 | 99 | The minimum level of total volitile organic compound in ppb |
| 3 | CC_TYPE_COMMAND_MAX_CO2 | Set maximum level CO2 | 2 | 2 | 400 | 3000 | 750 | From | To | Description |
|---|
400 | 3000 | The maximum level of CO2 in ppm |
| 6 | CC_TYPE_COMMAND_MAX_TVOC | Set maximum level tVOC | 2 | 2 | 1001 | 5000 | 5000 | From | To | Description |
|---|
1001 | 5000 | The maximum level of total volitile organic compound in ppb |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Classic Inclusion | 1. Using service button
First, switch the controller to the device search and adding mode. Then power the device. After this, the device must be switched to the adding mode by pressing the service button for three times. Now you can enter first five digits of the Device Specific Key (DSK) in controller, after which the device will be added to a Z-Wave network. The DSK is printed on a sticker inside of the device packaging. | 2 | Classic Exclusion | Switch the controller to the device remove mode;
Press the service button 3 times within 1.5 seconds to enter the adding mode. The device is removed from Z-Wave network. | 8 | Where to find S2 DSK on product | The DSK is printed on a sticker inside of the device packaging. | 5 | Factory Reset Procedure | CAUTION: Use this procedure only if the central controller is lost or
unusable.
Press the service button 6 times in 1.5 seconds, the red LED should
light up;
In 3 seconds the red LED will go out;
The device erases its network ID (removes from Z-Wave network) and
resets all settings to the factory defaults. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
CO2 Alarm | Sensor status: Carbon dioxide detected | Heat Alarm | Heat sensor status: Overheat detected | Heat Alarm | Heat sensor status: Under heat detected | Home Health | VOC level status: Volatile Organic Compound level |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Air temperature | Humidity | Carbon dioxide (CO2-level) | Volatile Organic Compound level |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
