Certification Number	ZC10-17035502

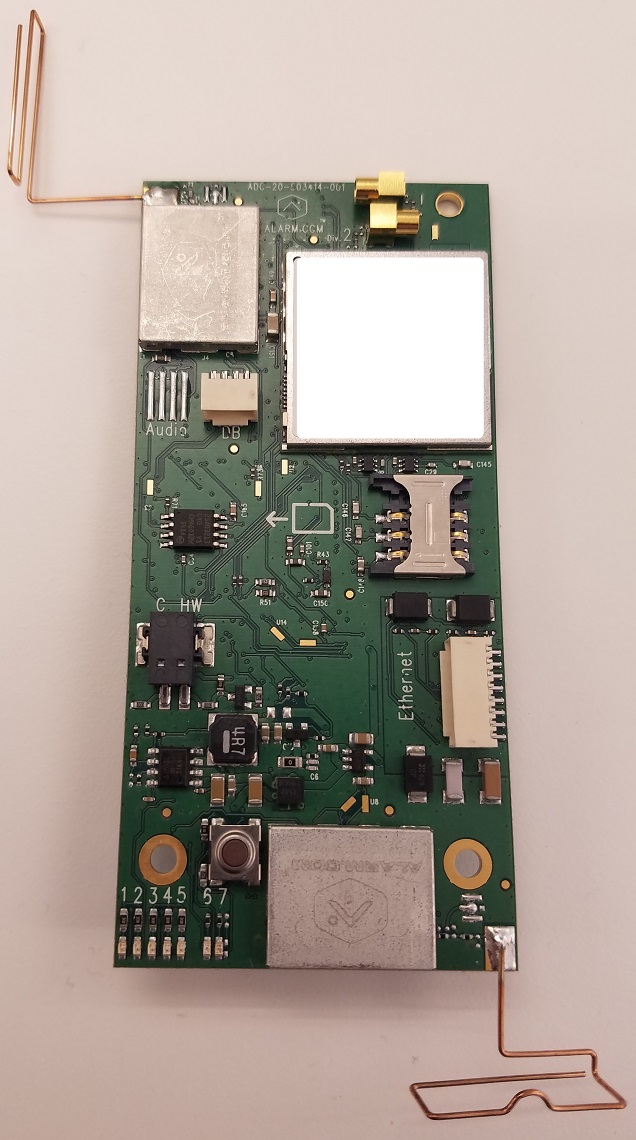

Name	Alarm.com Rev4.7 Radio Module
Short Description	The ADC-470L is an Alarm.com radio module that connects to Alarm.com Cloud Services and provides home automation features.
Long Description	The ADC-470L is an Alarm.com radio module that connects to Alarm.com Cloud Services and provides home automation features, such as lights, thermostats, and locks.
Brand	Alarm.com
Product Identifier	ADC-470L
OEM Version	HW: 141 FW: 4.32:03.10
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	CONTROLLER_STATIC
Device Type	Central Controller
Role Type	ROLE_TYPE_CONTROLLER_CENTRAL_STATIC
Manufacturer ID	0x0094
Product Type ID	0x000E
Product ID	0x010E
User Icon	0x0500
Installer Icon	0x0500
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Controllers, Gateway Controller, Security Systems
Countries / Regions	United States of America
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_CONTROLLER_REPLICATION Controller Replication 0x21 1 COMMAND_CLASS_APPLICATION_STATUS Application Status 0x22 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_MANUFACTURER_SPECIFIC Manufacturer Specific 0x72 1
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_SENSOR_BINARY Sensor Binary 0x30 1 COMMAND_CLASS_SWITCH_MULTILEVEL Switch Multilevel 0x26 1 COMMAND_CLASS_DOOR_LOCK Door Lock 0x62 1 COMMAND_CLASS_NO_OPERATION No Operation 0x00 1 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_THERMOSTAT_FAN_MODE Thermostat Fan Mode 0x44 1 COMMAND_CLASS_USER_CODE User Code 0x63 1 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi-Channel Association V3 0x8E 3 COMMAND_CLASS_ALARM Alarm 0x71 1 COMMAND_CLASS_CLOCK Clock 0x81 1 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_TIME_PARAMETERS Time Parameters 0x8B 1 COMMAND_CLASS_THERMOSTAT_SETBACK Thermostat Setback 0x47 1 COMMAND_CLASS_THERMOSTAT_OPERATING_STATE Thermostat Operating State 0x42 1 COMMAND_CLASS_THERMOSTAT_MODE Thermostat Mode 0x40 1 COMMAND_CLASS_THERMOSTAT_FAN_STATE Thermostat Fan State 0x45 1 COMMAND_CLASS_SENSOR_MULTILEVEL Sensor Multilevel 0x31 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_NOTIFICATION_V3 Notification V3 0x71 3 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_WAKE_UP_V2 Wake Up V2 0x84 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_MULTI_CHANNEL_V4 Multi-Channel V4 0x60 4 COMMAND_CLASS_THERMOSTAT_SETPOINT Thermostat Setpoint 0x43 1 COMMAND_CLASS_METER Meter 0x32 1 COMMAND_CLASS_FIRMWARE_UPDATE_MD Firmware Update Meta-Data 0x7A 1 COMMAND_CLASS_MANUFACTURER_SPECIFIC Manufacturer Specific 0x72 1 COMMAND_CLASS_SCHEDULE_ENTRY_LOCK_V3 Schedule Entry Lock V3 0x4E 3
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Alarm.com ADC-470L Z-Wave Documentation v1.docx
Features	Feature Values Firmware Updatable Value Updatable by Professional/Technician Sensors Value Air Temperature Supported Notification Types Value Access Control
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Z-Wave Plus Lifeline
Texts	ID Description Value 5 Factory Reset NOTE: This function will forcibly clear the Alarm.com ADC-470L’s Z-Wave node identification and will also remove all network information from the ADC-470L. Use this procedure only in the event that the network primary controller is missing or otherwise inoperable 1. A Z-Wave factory reset must be triggered from the Alarm.com dealer site 2. Navigate to the Equipment page. 3. Click the “emPower Devices” tab. 4. Open the “Advanced Z-Wave Commands” menu by clicking the button below the Equipment List. 5. Towards the bottom next to the “Equipment List Label” text click on the “Reset To Factory Default” button 6. Allow 3 minutes for the associated commands to go through and for the ADC-470L to act on them 4 Device Wake-Up • Support for the Wake Up command class is enabled using Alarm.com’s rules engine. This requires a series of rules pushed from the cloud when Alarm.com detects that a Wake Up device has been added to the Alarm.com ADC-470L. • For this reason Wake Up notifications will only be handled properly by the Alarm.com ADC-470L after any locally added Wake Up devices have been reported to the backend. This can take up to 15 minutes, but can be accelerated by using Remote Add or by requesting a Z-Wave Equipment List from the Alarm.com backend. 3 Learn Mode (adding another controller) 1. Learning in the Alarm.com ADC-470L using the Dealer Site a. Log in to the Alarm.com Dealer Site b. Select the customer whose node you wish to remove c. Navigate to the page to allow sending generic commands. This can be found in the AirFX Remote Toolkit or by navigating to https://alarmadmin.alarm.com/Support/Commands/GenericCommand.aspx d. Place a controller on the existing network into add mode e. Send the generic command 5B10030101 to the ADC-470L, once received it will cause the Alarm.com ADC-470L to learn into the existing Z-Wave network and will allow it to cause all relevant network information to be copied over from the controller that was put into add mode. 23 Controller Inclusion NOTE: This process leverages Network Wide Inclusion. In addition, any controllers added to the Alarm.com ADC-470L will have network information replicated over to them. 1. Using Mobiletech a. Install the MobileTech App (if not already done) and select the customer of interest. b. Move all Z-Wave devices to their final location on the property. c. Navigate to the Equipment List page. d. Select emPower Management. e. Select Add Z-Wave Devices f. Wait for the bolded message: Checking for new devices on the network g. Trigger a device to add it to the network. h. When a device is added successfully, it will show up on this screen following a 30 second delay. i. Continue triggering devices. You may add many devices to the network without reentering Add Mode. 2. Using the Dealer Website a. Navigate to the Equipment page. b. Click the emPower Devices tab. c. Open the Advanced Z-Wave Commands menu below the Equipment List. d. Click Add Z-Wave Devices. e. Wait for the bolded message: Checking for new devices on the network. f. Trigger a device to add it to the network. g. When a device is added successfully, it will show up on this screen following a 30 second delay. h. Continue triggering devices. You may add many devices to the network without reentering Add Mode. 3. Using the Panel a. Press [*] [8], then the installer code, to enter Installer Programming. b. Enter 851 for Interactive Services. c. Use the arrow keys to scroll to and select Z-Wave Setup. d. Use the arrow keys to scroll to and select Add Z-Wave Device. e. Trigger a device to add it to the network. f. When a device is added successfully, the panel will beep. g. You will need to re-enter Add Mode before triggering the next device. 24 Controller Exclusion 1. Using Mobiletech a. Install the MobileTech App (if not already done) and select the customer of interest. b. Move all Z-Wave devices you plan to delete close to the Alarm.com ADC-470L. c. Navigate to the Equipment List page. d. Select emPower Management. e. Select Delete Z-Wave Devices f. Wait for the bolded message: Checking for deleted devices on the network g. Trigger a device to remove it from the network. h. When a device is deleted successfully and its network information is erased, it will show up on this screen following a 30 second delay. i. Continue triggering devices. You may delete many devices to the network without reentering Delete Mode. 2. Using the Dealer Website a. Move all Z-Wave devices you plan to delete close to the Alarm.com ADC-470L. b. Navigate to the Equipment page. c. Click the emPower Devices tab. d. Open the Advanced Z-Wave Commands menu below the Equipment List. e. Click Delete Z-Wave Devices. f. Wait for the bolded message: Checking for deleted devices on the network. g. Trigger a device to remove it from the network. h. When a device is deleted successfully and its network information is erased, it will show up on this screen following a 30 second delay. i. Continue triggering devices. You may delete many devices to the network without reentering Delete Mode. 3. Using the Panel a. Press [*] [8], then the installer code, to enter Installer Programming. b. Enter 851 for Interactive Services. c. Use the arrow keys to scroll to and select Z-Wave Setup. d. Use the arrow keys to scroll to and select Remove Z-Wave Device. e. Trigger a device to clear its network data and remove it from the existing Z-Wave network. f. The panel will beep when a device has been deleted. g. You will need to re-enter Delete Mode to delete more devices.
Supports NWI	Yes
Supports Explorer Frames	Yes
