Product Recognition | |
|---|
Certification Number | ZC10-15070009 |
|---|
Name | Alfred |
|---|

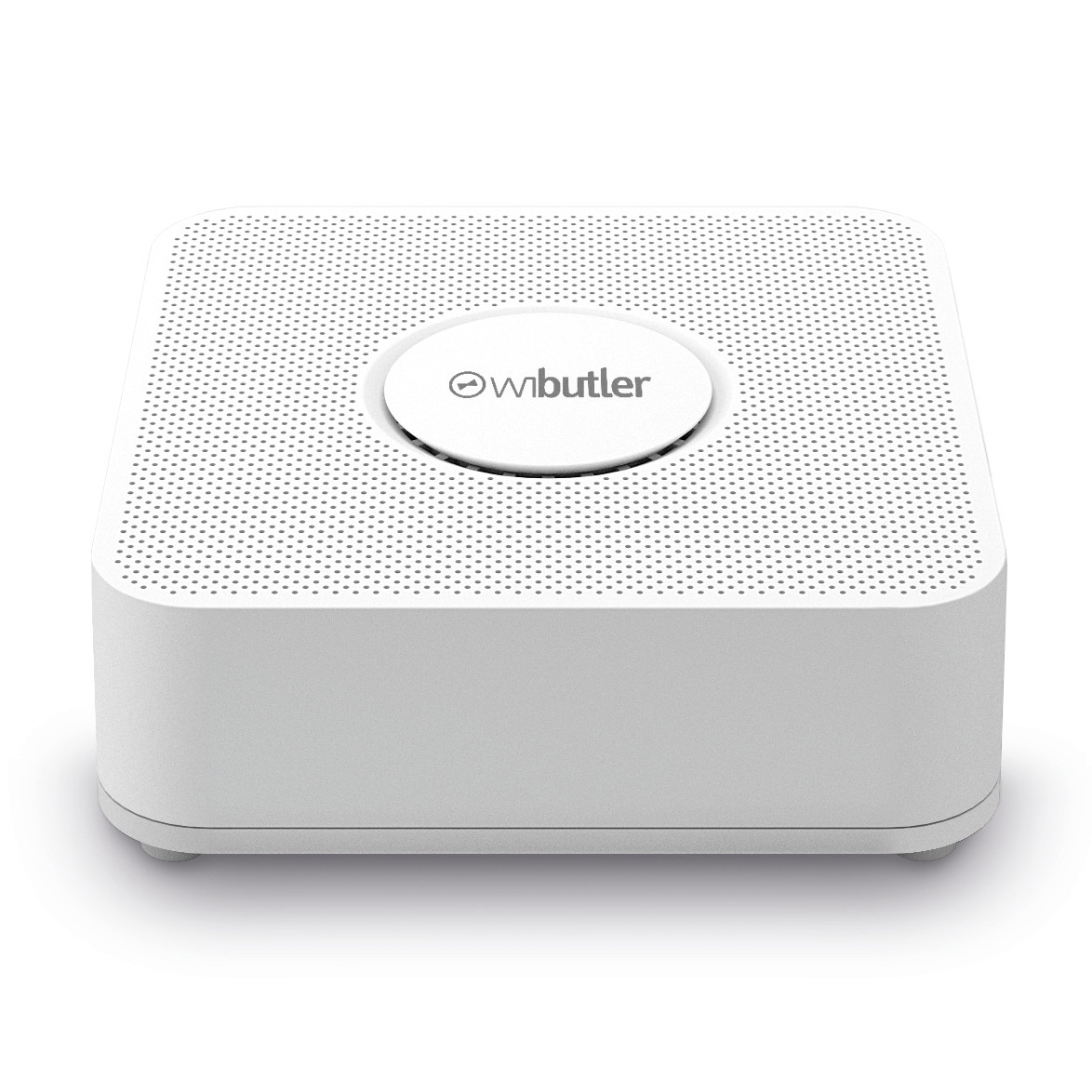

Short Description | The interoperable home server wibutler pro allows for the combination of smart products even if they are based on different radio protocols. Equipped with multiple established radio protocols (EnOcean, Z-Wave, ZigBee, Bluetooth Smart, Bluetooth, WLAN) it offers a unique connectivity and is able to build up its own access point. |
|---|
Long Description | The interoperable home server wibutler pro allows for the combination of smart products even if they are based on different radio protocols. Equipped with multiple established radio protocols (EnOcean, Z-Wave, ZigBee, Bluetooth Smart, Bluetooth, WLAN) it offers a unique connectivity and is able to build up its own access point. It serves as the core of the wibutler solution. In combination with the wibutler app (iOS and Android) and the online platform www.wibutler.com, users may connect, combine and automate devices of different manufacturers to convert their home into a smart home. |
|---|
Brand | wibutler |
|---|
Product Identifier | 1 |
|---|
OEM Version | 1 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.06 |
|---|
Library Type | CONTROLLER_STATIC |
|---|
Device Type | Central Controller |
|---|
Role Type | ROLE_TYPE_CONTROLLER_CENTRAL_STATIC |
|---|
Manufacturer ID | 0x019E |
|---|
Product Type ID | 0x0001 |
|---|
Product ID | 0x0001 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | All Controllers, Gateway Controller |
|---|
Countries / Regions | European Union |
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_ASSOCIATION | Association | 0x85 | 1 | COMMAND_CLASS_ASSOCIATION_GROUP_INFORMATION | Association Group Information V1 | 0x59 | 0 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION | Multi-Channel Association V1 | 0x8E | 0 | COMMAND_CLASS_MULTI_CHANNEL | Multi-Channel V1 | 0x60 | 0 | COMMAND_CLASS_SWITCH_ALL | Switch All | 0x27 | 1 | COMMAND_CLASS_WAKE_UP | Wake Up | 0x84 | 1 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CRC_16_ENCAP | CRC16 Encapsulation | 0x56 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO | Z-Wave Plus Info | 0x5E | 1 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC | Manufacturer Specific | 0x72 | 1 | COMMAND_CLASS_VERSION | Version | 0x86 | 1 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 3 | 0 | Z-Wave Plus Lifeline |
|
|---|
Texts | ID | Description | Value |
|---|
23 | Controller Inclusion | Start the mobile wibutler app and connect to your wibutler. Open the Z-Wave Controller device from the device list and select the menu entry “Add Device” on the “Control Page”. Now, the controller is in inclusion mode. | 24 | Controller Exclusion | Start the mobile wibutler app and connect to your wibutler. Open the Z-Wave Controller device from the device list and select the menu entry “Remove Device” on the “Control Page”. Now, the controller is in exclusion mode. | 3 | Learn Mode (adding another controller) | Start the mobile wibutler app and connect to your wibutler. Open the Z-Wave Controller device from the device list and select the menu entry “Learn Mode” on the “Control Page”. Now, the controller is in learn mode. | 5 | Factory Reset | Start the mobile wibutler app and connect to your wibutler. Open the Z-Wave Controller device from the device list and select the menu entry “Reset Controller” on the “Control Page”. | 6 | Additional Special Features | n/a | 4 | Device Wake-Up | n/a |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
