Product Recognition

Certification Number

ZC12-21040215

Name

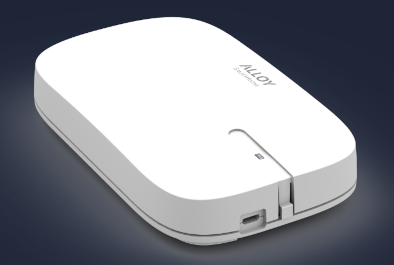

Alloy SmartHome Hub

Short Description

The Alloy SmartHome Hub is a Security Enabled Z-Wave Plus central static controller.

Long Description

The Alloy SmartHome Hub is a Security Enabled Z-Wave Plus central static controller.It is responsible for managing a network of Z-Wave-compliant devices from a fixed location.The Alloy SmartHome Hub provides extensive support for the following Z-Wave-compliant devices:ThermostatsSecure door locksNotification sensorsBinary and multilevel power switchesSirensCentral Scene ControllersAll Z-Wave-compliant devices from different manufacturers and product categories can be a part of the Z-Wave network controlled by the Alloy SmartHome Hub. At a minimum, the Alloy SmartHome Hub will control them via basic on/off commands.

Brand

Alloy SmartHome

Product Identifier

AH-HUB3

Product Line

Alloy Home

OEM Version

HW: 1 FW: 7.13:07.14:02.03

Hardware Platform

ZGM130

Z-Wave Version

7.14.3

Library Type

CONTROLLER_BRIDGE

Device Type

Gateway

Role Type

ROLE_TYPE_CONTROLLER_CENTRAL_STATIC

Manufacturer ID

0x0390

Product Type ID

0x0001

Product ID

0x0001

User Icon

0x0100

Installer Icon

0x0100

Frequency Plans

US: 916.00MHz, 908.40MHz

Categories

All Controllers, Gateway Controller

Countries / Regions

United States of America

Supported Command Classes

Controlled Command Classes

Identifier	Name	Key	Version
COMMAND_CLASS_NETWORK_MANAGEMENT_INSTALLATION_MAINTENANCE_V2	Network Management Installation and Maintenance V2	0x67	2
COMMAND_CLASS_CONFIGURATION_V4	Configuration V4	0x70	4
COMMAND_CLASS_SWITCH_BINARY_V2	Switch Binary V2	0x25	2
COMMAND_CLASS_NO_OPERATION	No Operation	0x00	1
COMMAND_CLASS_NODE_NAMING	Node Naming	0x77	1
COMMAND_CLASS_POWERLEVEL	Powerlevel	0x73	1
COMMAND_CLASS_THERMOSTAT_OPERATING_STATE_V2	Thermostat Operating State V2	0x42	2
COMMAND_CLASS_THERMOSTAT_FAN_MODE_V5	COMMAND_CLASS_THERMOSTAT_FAN_MODE_V5		0
COMMAND_CLASS_ALARM_V2	Alarm V2	0x71	2
COMMAND_CLASS_DOOR_LOCK_V4	Door Lock V4		0
COMMAND_CLASS_USER_CODE_V2	User Code V2		0
COMMAND_CLASS_ASSOCIATION_V3	Association V3		0
COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V4	Multi-Channel Association V4		0
COMMAND_CLASS_INDICATOR_V3	Indicator V3	0x87	3
COMMAND_CLASS_CLOCK	Clock	0x81	1
COMMAND_CLASS_TIME_PARAMETERS	Time Parameters	0x8B	1
COMMAND_CLASS_THERMOSTAT_SETBACK	Thermostat Setback	0x47	1
COMMAND_CLASS_CRC_16_ENCAP	CRC16 Encapsulation	0x56	1
COMMAND_CLASS_SECURITY	Security S0	0x98	1
COMMAND_CLASS_SENSOR_BINARY_V2	Sensor Binary V2	0x30	2
COMMAND_CLASS_THERMOSTAT_FAN_STATE_V2	Thermostat Fan State V2	0x45	2
COMMAND_CLASS_THERMOSTAT_MODE_V3	Thermostat Mode V3	0x40	3
COMMAND_CLASS_THERMOSTAT_SETPOINT_V3	Thermostat Setpoint V3	0x43	3
COMMAND_CLASS_WAKE_UP_V2	Wake Up V2	0x84	2
COMMAND_CLASS_DEVICE_RESET_LOCALLY	Device Reset Locally	0x5A	1
COMMAND_CLASS_ZWAVEPLUS_INFO_V2	Z-Wave Plus Info V2	0x5E	2
COMMAND_CLASS_ANTITHEFT_V3	Anti-Theft v3		0
COMMAND_CLASS_ANTITHEFT_UNLOCK	Anti-Theft Unlock		0
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V7	Firmware Update Metadata version 7		0
COMMAND_CLASS_MULTI_CHANNEL_V4	Multi-Channel V4	0x60	4
COMMAND_CLASS_SWITCH_MULTILEVEL_V4	Switch Multilevel V4	0x26	4
COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3	Association Group Information V3	0x59	3
COMMAND_CLASS_MAILBOX	Mailbox	0x69	1
COMMAND_CLASS_NOTIFICATION_V8	Notification V8	0x71	8
COMMAND_CLASS_BASIC_V2	Basic V2	0x20	2
COMMAND_CLASS_SECURITY_2	Security S2	0x9F	1
COMMAND_CLASS_METER_V5	Meter V5	0x32	5
COMMAND_CLASS_SENSOR_MULTILEVEL_V11	Sensor Multilevel V11	0x31	11
COMMAND_CLASS_VERSION_V3	Version V3	0x86	3
COMMAND_CLASS_CENTRAL_SCENE_V3	Central Scene V3	0x5B	3
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2	Manufacturer Specific V2	0x72	2
COMMAND_CLASS_MULTI_CMD	Multi-Command	0x8F	1

S2 Classes

S2_UNAUTHENTICATED, S2_AUTHENTICATED, S2_ACCESS_CONTROL

Documents

Features

Association Groups

Texts

ID	Description	Value
10	Controller Replication	The Alloy SmartHome Hub is a Z-Wave static central controller. It is responsible for managing anetwork of Z-Wave-compliant devices from a fixed location.It typically acts as the "primary" controller for the network, meaning that it is responsible for theaddition (inclusion) and removal (exclusion) of devices from the network. Only primarycontrollers can add or remove devices. A controller maintains "routing tables" and uses them toreach the devices in its network.A primary controller can add another, secondary, controller to the network. When it does, it"replicates" its routing tables on the secondary controller.
5	Factory Reset Procedure	To reset the Alloy SmartHome Hub to its factory settings, you will first need to remove alldevices. A Factory reset button will then become visible. Pressing the Factory reset button will immediately reset the Hub. The Hub will reboot.If this controller is the primary controller for your network, resetting it will result in the nodes inyour network being orphaned and it will be necessary after the reset to exclude and re-includeall of the nodes in the network. If this controller is being used as a secondary controller in thenetwork, use this procedure to reset this controller only in the event that the network primarycontroller is missing or otherwise inoperable.
8	Where to find S2 DSK on product	The DSK QR Code and PIN are printed on the label on the bottom of the device
23	Controller Classic Inclusion	When the Devices tab is selected, an Add a device button is displayed under the list of alreadyadded devices. To add a device that is not yet part of a Z-Wave network, press the Add a device button andput a device into "add mode" (follow the instructions in the documentation that came with thedevice).If the device is an S2 authenticated device, in order to securely include it, you will be asked toprovide its PIN.The hub should complete the process automatically and, after a few seconds, report successand add the device to the list.If the device was not added securely, the application reports the fact.The application also reports when adding a device fails or times out.
24	Controller Classic Exclusion	When the Devices tab is selected, a Remove a device button is displayed under the list ofalready added devices.To remove a device from the Z-Wave network controlled by the Hub, press the button and putone of the listed devices (other than the "Gateway") into "remove mode" (follow the instructionsin the documentation that came with the device).The Hub should complete the process automatically and, after a few seconds, report successand remove the device from the list.
3	Controller Learn Mode	The Alloy SmartHome Hub can be put in Learn Mode in order to add it to another controller'snetwork as a secondary controller. This is useful when performing tests on the Hub.Please note that the moment the Alloy SmartHome Hub becomes a secondary controller, it fallsunder the control of the primary controller. Until the Hub becomes primary again, the AlloySmartHome Hub Web application is no longer functional.You put the Hub in Learn Mode with the small button on the Hub itself (just above theLED light).Press it twice within one second and it will put the Alloy SmartHome Hub in Learn Mode for 30seconds. The LED flashes green while the Hub is in Learn Mode from pressing the button. TheHub restarts if it was successfully added as a secondary controller by another controller.
11	Controller SmartStart Inclusion	Z-Wave SmartStart automates the secure addition of devices to the Z-Wave network controlledby the Alloy SmartHome Hub.By giving the Hub a list of provisioned devices, you are instructing it to automatically addmatching devices to the Z-Wave network, if not already added, whenever they are detected bythe Hub. Only one device can possibly match a given SmartStart provisioning.
25	Controller Provisioning List	A device is provisioned first clicking on the "Add provisioning" button and then editing the detailsof its provisioning. This is done by entering its 40-digit secure device key (SDK), accompaniedby a meaningful name. Note that the SDK is composed of eight 5-digit numbers separated bydashes. When done, press on the "Set" button.
9	Capability Rediscovery	The Hub automatically discovers the capabilities of the devices added to its network when they are added and every time it starts up. Should the devices acquire new capabilities via firmware updates, these capabilities, to the extent that they are supported by the Hub, will be discovered the next time the Hub is restarted.

Supported / Controlled Meter Types

Supports NWI

Yes

Supports Explorer Frames

Yes

Supports SmartStart

Yes

Radio Range Z-Wave (m)
