Product Recognition | |
|---|
Certification Number | ZC10-18026009 |
|---|

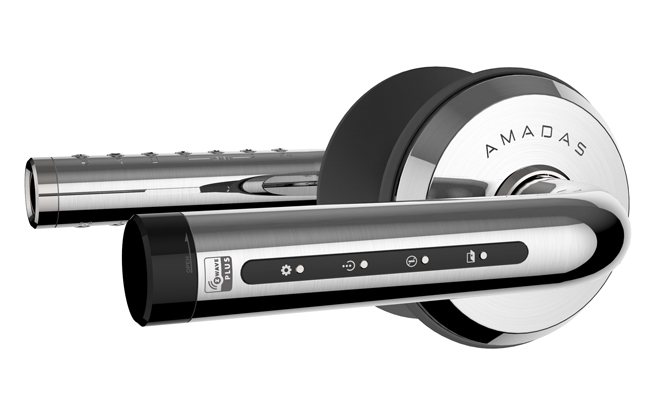

Name | AMADAS Smart Door Lock |
|---|
Short Description | AMADAS is the world's first fully integrated smart door lock solution including a dedicated app, left/right handed lever, PIN code, swipe-to-open, wire-free DIY installation and emergency recharging solar panel in a solid stainless steel casing. |
|---|
Long Description | AMADAS offers various smart functions via smartphone app including smart activity log/management, smart security detecting door open, smart temperature sensor, etc. AMADAS is a super simple DIY smart lock that can be installed on almost all types of doors in any thickness, in-door/outdoor, and any materials - wooden, chassis, steel doors. It is offered in tubular and mortise lock types with high adjustability compatible with various door backset length. With a low power motor structure, it only requires two AA batteries, unlike other locks which require four to eight batteries. Even when batteries run out, it works 100% thanks to an emergency recharge with a built-in solar cell via smartphone LED flashlight. The smart innovative lever design prevents water condensation caused by a temperature change that other electronic locks experience quite often. AMADAS lever direction can change easily to fit both right or left hand configured doors. |
|---|
Brand | AMADAS |
|---|
Product Identifier | ADSL-1001 |
|---|
OEM Version | HW: 1 FW: 1.18:01.02 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.51.10 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Door Lock - Keypad |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
|---|
Manufacturer ID | 0x029F |
|---|
Product Type ID | 0x0003 |
|---|
Product ID | 0x0001 |
|---|
User Icon | 0x0300 |
|---|
Installer Icon | 0x0300 |
|---|
Frequency Plans | KR: 920.90MHz, 921.70MHz, 923.10MHz |
|---|
Categories | Locks |
|---|
Countries / Regions | Republic of Korea |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_USER_CODE | User Code | 0x63 | 1 | COMMAND_CLASS_DOOR_LOCK_V2 | Door Lock V2 | 0x62 | 2 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 | Firmware Update Meta-Data V2 | 0x7A | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_NOTIFICATION_V4 | Notification V4 | 0x71 | 4 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Color | | Battery Type | | Sensors | Value |
|---|
Open/Closed (Binary) | Heat |
| Door Lock Type | | Battery Quantity | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Outdoor Use | | Supported Notification Types | Value |
|---|
Access Control | Power Management |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 1 | 0 | Supported Command Classes (13) : Z-Wave plus info (V2)
- Manufacturer specific (V2)
- Security (V1)
- Device reset Locally (V1)
- Battery (V1)
- Power level (V1)
- Version(V2)
- Door Lock (V2)
- User Code (V1)
- Association (V2)
- Association Group Info (V1)
- Notification (V4)
- Firmware update meta data (V2) |
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | - Z-Wave inclusion
i. Press “Z-Wave Settings” button in the inner side for 3 seconds. (toggle status)
ii. Then “Blue LED” will turn on.
iii. When the inclusion is complete, the led is turned off and the beep sounds. Please wait.
* Beep : Success (Beep), Fail (Beep~)
* The inclusion results can be found in the controller or in your app. | 2 | Exclusion | - Z-Wave exclusion
i. Press “Z-Wave Settings” button in the inner side for 3 seconds. (toggle status)
ii. Then “Blue LED” will turn on.
iii. When the exclusion is completed, the led is turned off and the beep sounds. Please wait.
* Beep : Success (Beep Beep), Fail (Beep~)
* The exclusion results can be found in the controller or in your app. | 5 | Factory Reset | - Factory default setting
i. Press “Settings, Input” button in the inner side for 3 seconds.
ii. Press “④ - Reset” button in the outer side.
iii. Enter “1004” and press the “*” button.
* All door lock setting information is initialized.
- Z-Wave device reset locally
i. Press “Z-Wave Settings” button in the inner side 3 times within 1.5 seconds.
ii. Then “White LED” will turn on.
iii. When the “network reset locally” is complete, the led is turned off. Please wait.
* Beep : Success (Ring), Fail (Beep~)
* Z-Wave network information is initialized.
* Please use this procedure only when the network primary controller is missing or otherwise inoperable. | 4 | Device Wake-Up | - Through the Z-Wave network generates an order, the product will receive the wakeup call and starts to operate
- The product will receive the wakeup call when the buttons on the outer lever are touched (pushed) to open the door.
- The product will receive the wakeup call when the buttons on the inner lever are pushed for doorlock setting. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Access Control | (Refer to parameters): State idle | Power Management | (Refer to parameters): State idle |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Air temperature | General purpose |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Is Flirs | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
