Product Recognition | |
|---|
Certification Number | ZC10-17075679 |
|---|

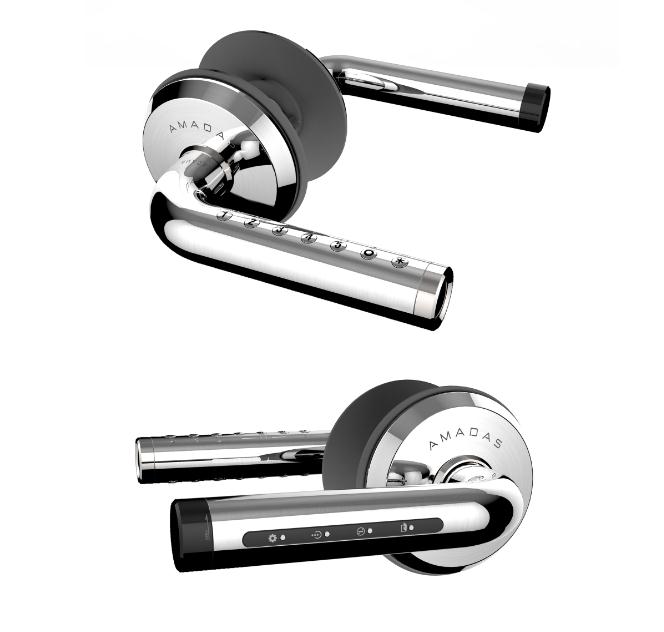

Name | AMADAS Smart Lock |
|---|
Short Description | AMADAS Smart Lock is a truly user-centric connected smart lever lock equipped with emergency battery recharge, keyless entry, do-it-yourself installation. Made of a stainless steel, AMADAS is a very sturdy and secure door lock. With its unique App, users can allow guests in safely, either remotely or by assigning unique pin codes. |
|---|
Long Description | AMADAS Smart Lock is a truly user-centric connected smart lever lock offering all-in-one solution including left/right handed lever, keypads, unique App, wire-free and a solar panel in a solid stainless steel casing.
● AMADAS Smart Lock offers D.I.Y. installation. There is no need to call a professional installer. Users can install it by themselves without any professional technique. Also, it works for 100% of the time even when the batteries run out. AMADAS can be powered by shining a smart phone flash light on the built-in solar panel for 20 seconds.
● AMADAS Smart Lock connects to user's smartphone. For better security, users can check door lock condition, access log, etc., via its unique app whenever or wherever they are.
● With its high compatibility, AMADAS Smart Lock can be installed on the most comprehensive standard doors regardless of a thickness, material and in/outdoor.
● Made for both tech-savvy and non tech-savvy users, they can easily enter their homes via Smartphone or the button (Touch/Push) configuration on AMADAS' lever, whichever way is most convenient. |
|---|
Brand | AMADAS |
|---|
Product Identifier | ADSL-1001 |
|---|
OEM Version | HW: 1 FW: 1.12 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.51.09 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Door Lock - Keypad |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
|---|
Manufacturer ID | 0x029F |
|---|
Product Type ID | 0x0003 |
|---|
Product ID | 0x0001 |
|---|
User Icon | 0x0300 |
|---|
Installer Icon | 0x0300 |
|---|
Frequency Plans | KR: 920.90MHz, 921.70MHz, 923.10MHz |
|---|
Categories | Locks |
|---|
Countries / Regions | Republic of Korea |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_USER_CODE | User Code | 0x63 | 1 | COMMAND_CLASS_DOOR_LOCK_V2 | Door Lock V2 | 0x62 | 2 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 | Firmware Update Meta-Data V2 | 0x7A | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_NOTIFICATION_V4 | Notification V4 | 0x71 | 4 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Door Lock Type | | Sensors | Value |
|---|
Open/Closed (Binary) | Heat |
| Battery Quantity | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Outdoor Use | | Battery Type | | Color | | Supported Notification Types | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 1 | 0 | Supported Command Classes (14):
- Z-Wave plus info (V2)
- Manufacturer specific (V2)
- Security (V1)
- Device reset Locally (V1)
- Battery (V1)
- Power level (V1)
- Version(V2)
- Door Lock (V2)
- User Code (V1)
- Association (V2)
- Association Group Info (V1)
- Notification (V4)
- Configuration (V1)
- Firmware update meta data (V2) |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | set door open notification On or Off | if configuration value is 0x01 then set door open notification on and configuration value is 0xFE then set door open notification off | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
254 | 254 | set door open notification off | 1 | 1 | set door open notification on |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | - Z-Wave inclusion:
i. Press “Z-Wave Settings” button in the inner side for 3 seconds. (toggle status)
ii. Then “Blue LED” will turn on.
iii. When the inclusion is complete, the led is turned off and the beep sounds. Please wait.
* Beep : Success (Beep), Fail (Beep~)
* The inclusion results can be found in the controller or in your app. | 2 | Exclusion | - Z-Wave exclusion
i. Press “Z-Wave Settings” button in the inner side for 3 seconds. (toggle status)
ii. Then “Blue LED” will turn on.
iii. When the exclusion is completed, the led is turned off and the beep sounds. Please wait.
* Beep : Success (Beep Beep), Fail (Beep~)
* The exclusion results can be found in the controller or in your app. | 5 | Factory Reset | 1. Factory default setting
i. Press “Settings, Input” button in the inner side for 3 seconds.
ii. Press “④ - Reset” button in the outer side.
iii. Enter “1004” and press the “*” button.
2. Z-Wave device reset locally
i. Press “Z-Wave Settings” button in the inner side 3 times within 1.5 seconds.
ii. Then “White LED” will turn on.
iii. When the “network reset locally” is complete, the led is turned off. Please wait.
* Beep : Success (Ring), Fail (Beep~)
* Z-Wave network information is initialized.
* Please use this procedure only when the network primary controller is missing or otherwise inoperable. | 4 | Device Wake-Up | - Through the Z-Wave network generates an order, the product
will receive the wakeup call and starts to operate.
- The product will receive the wakeup call when the buttons on
the outer lever are touched (pushed) to open the door.
- The product will receive the wakeup call when the buttons on
the inner lever are pushed. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Access Control | (Refer to parameters): State idle |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Air temperature | General purpose |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Is Flirs | Yes |
|---|
