Product Recognition | |
|---|
Certification Number | ZC10-17095770 |
|---|

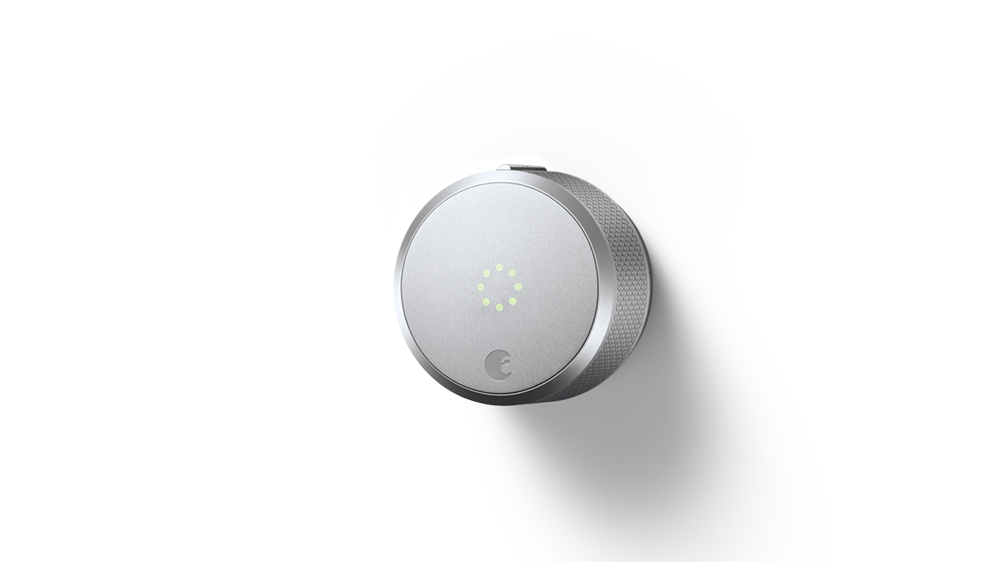

Name | August Smart Lock Rev 3 |
|---|
Short Description | Control and monitor your door from anywhere the August Smart Lock Pro. Lock and unlock your door and always know who's coming and going– all from your phone. |
|---|
Long Description | Give your customer total control over their front door, from anywhere. The August Smart Lock Pro is the leading Z-Wave Plus retrofit smart lock. You can lock and unlock your door, create virtual keys for guests, and keep track of who comes and goes with a 24/7 activity log, all from your iOS or Android smartphone. The August Smart Lock Pro features Z-Wave Plus and BLE and it is the only lock to support the three leading voice-assistants, Siri, Google Assistant, and Amazon Alexa. The lock quickly installs on the inside of your door with just a screwdriver. Keep your exterior door hardware exactly as it is and use your traditional key any time. |
|---|
Brand | August Home |
|---|
Product Identifier | ASL-03 |
|---|
OEM Version | HW: 255 FW: 0.45 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.71.01 |
|---|
Library Type | SLAVE_ROUTING |
|---|
Device Type | Door Lock Keypad |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
|---|
Manufacturer ID | 0x033F |
|---|
Product Type ID | 0x0001 |
|---|
Product ID | 0x0001 |
|---|
User Icon | 0x0300 |
|---|
Installer Icon | 0x0300 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Locks |
|---|
Countries / Regions | United States of America |
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 |
|
|---|
S2 Classes | S2_AUTHENTICATED, S2_ACCESS_CONTROL |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Battery Quantity | | Battery Type | | Color | | Communications Connections | | Door Lock Type | Value |
|---|
Deadbolt Motor Attachment |
| Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | The Lifeline group on this lock is used to report battery status, door lock operation status, and device reset locally notifications to nodes on the group list. | 2 | 5 | 0 | The Doorlock Op group on this lock is used to report door lock operation status to nodes on the group list. |
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | In the August mobile application, the user can do the following to include the product to a Z-Wave network:
1. Launch the August mobile application
2. Select the House with the August Smart Lock that supports Z-Wave
3. Select the Gear icon to go to the Settings screen
4. Select the Lock Settings option for the August Smart Lock
that supports Z-Wave
5. Select Z-Wave Settings
6. Select Add To A Z-Wave Network
7. Put the controller in Inclusion Mode and select My Hub Is In Inclusion Mode in the August Mobile Application | 2 | Exclusion | In the August mobile application, the user can do the following to exclude the product from a Z-Wave network:
1. Launch the August mobile application
2. Select the House with the August Smart Lock that supports Z-Wave
3. Select the Gear icon to go to the Settings screen
4. Select the Lock Settings option for the August Smart Lock
that supports Z-Wave
5. Select Z-Wave Settings
6. Select Remove Z-Wave Device
7. Put the controller in Exclusion Mode and select My Hub Is In Exclusion Mode in the August Mobile Application | 5 | Factory Reset | In the August mobile application, the user can do the following to reset the product:
1. Launch the August mobile application
2. Select the House with the August Smart Lock that supports Z-Wave
3. Select the Gear icon to go to the Settings screen
4. Select the Lock Settings option for the August Smart Lock
that supports Z-Wave
5. Select Z-Wave Settings
6. Select Remove Z-Wave Device
7. Select My Hub Is No Longer Working
8. Caution: Resetting a Z-Wave device without telling the hub can cause performance problems. Use this procedure only when the Z-Wave hub is missing or otherwise inoperable.
9. Select Reset Z-Wave Device | 4 | Device Wake-Up | Any lock movement (e.g. manual operation) or communication from the controller will wake up the device. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Is Flirs | Yes |
|---|
