Product Recognition
Certification Number	ZC10-16020011
Name	Auto Valve
Short Description	Water shut off controller, no plumbing required

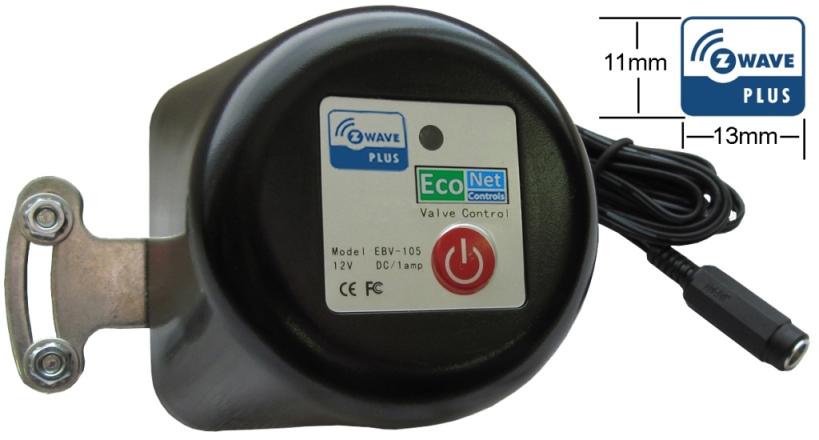

Long Description	Automatic Water shut off controller, fits over standard 1/2”, 3/4” and 1” ball valves, no plumbing required, 12V DC power, Blue LED status indicator, 500 Series Z-Wave. Includes mounting kit and and AC Adapter and quick start guide, Z-Wave and FCC certified. Prevents water damage when combined with standard smart home automation solutions.
Brand	EcoNet Controls
Product Identifier	EBV105
OEM Version	02
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ROUTING
Device Type	Valve - Open/Close
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0157
Product Type ID	0x0003
Product ID	0x0512
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	Water Valves & Irrigation
Countries / Regions	United States of America
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual EBV105-Z-Valve-Quick-Start-Guide-M2-ZWP.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Z-Wave Plus Lifeline
Texts	ID Description Value 1 Inclusion 1. Follow the instructions for your Z-Wave certified controller to include a device to the Z-Wave network. 2.Once the controller is ready to include your device, press the red button 3 times to include it in the Z-Wave network. 2 Exclusion 1. Follow the instructions for your Z-Wave certified controller to exclude a device to the Z-Wave network. 2.Once the controller is ready to exclude your device, press the red button 3 times to exclude it from the Z-Wave network. 5 Factory Reset Press and hold the button 10 seconds and release the button. The device will send the reset notification to the list node in the group1 and erases the device memory , when the light flash it is resetting success. Note: This should only be used in the event your networks primary controller is missing or otherwise inoperable.
Supports NWI	Yes
Supports Explorer Frames	Yes
