Product Recognition

Certification Number

ZC12-20020032

Name

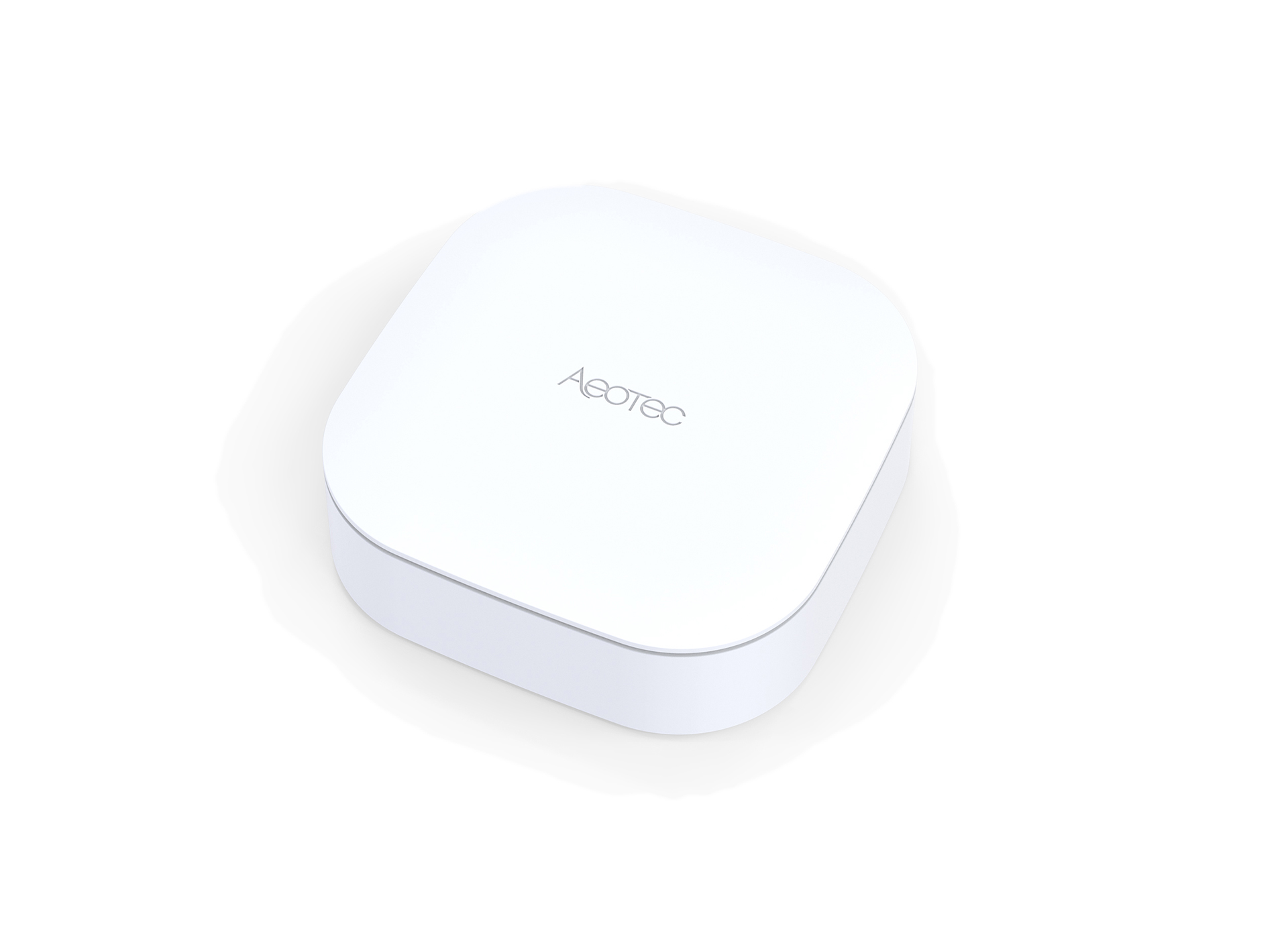

AutoPilot

Short Description

Z-Wave Smart Home gateway to automate your home and put in autopilot.

Long Description

• Z-Wave gateway to put your home on autopilot • Set rooms, scenes, rules and automations with no limits except your imagination • Based on the official Z/IP Framework from SiLabs • SmartStart and latest S2 Security Standard • Web based Installer user interface for complex setups and better costumer care • All settings and automations can run locally without internet connection to provide max. speed

Brand

Aeotec

Product Identifier

ZWA020

Product Line

Z-Wave Gateway

OEM Version

HW: 1 FW: 7.11:07.11:02.03

Hardware Platform

ZGM130

Z-Wave Version

7.11.0

Library Type

CONTROLLER_BRIDGE

Device Type

Gateway

Role Type

ROLE_TYPE_CONTROLLER_CENTRAL_STATIC

Manufacturer ID

0x0371

Product Type ID

0x0001

Product ID

0x0014

User Icon

0x0500

Installer Icon

0x0500

Frequency Plans

EU: 869.85MHz, 868.40MHz

Categories

All Controllers, Gateway Controller

Countries / Regions

European Union

Supported Command Classes

Controlled Command Classes

Identifier	Name	Key	Version
COMMAND_CLASS_CLIMATE_CONTROL_SCHEDULE	Climate Control Schedule	0x46	1
COMMAND_CLASS_CONFIGURATION_V4	Configuration V4	0x70	4
COMMAND_CLASS_SCENE_ACTUATOR_CONF	Scene Actuator Conf	0x2C	1
COMMAND_CLASS_SENSOR_ALARM	Sensor Alarm	0x9C	1
COMMAND_CLASS_SWITCH_BINARY_V2	Switch Binary V2	0x25	2
COMMAND_CLASS_THERMOSTAT_FAN_MODE_V4	Thermostat Fan Mode V4	0x44	4
COMMAND_CLASS_THERMOSTAT_OPERATING_STATE_V2	Thermostat Operating State V2	0x42	2
COMMAND_CLASS_SIMPLE_AV_CONTROL_V4	Simple AV Control V4	0x94	0
COMMAND_CLASS_DOOR_LOCK_V4	Door Lock V4		0
COMMAND_CLASS_SWITCH_COLOR_V4	Color Switch V4		0
COMMAND_CLASS_METER_TBL_MONITOR_V3	Meter Table Monitor V3		0
COMMAND_CLASS_USER_CODE_V2	User Code V2		0
COMMAND_CLASS_ASSOCIATION_V3	Association V3		0
COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V4	Multi-Channel Association V4		0
COMMAND_CLASS_INDICATOR_V3	Indicator V3	0x87	3
COMMAND_CLASS_CLOCK	Clock	0x81	1
COMMAND_CLASS_SILENCE_ALARM	Silence Alarm	0x9D	1
COMMAND_CLASS_SECURITY	Security S0	0x98	1
COMMAND_CLASS_APPLICATION_STATUS	Application Status	0x22	1
COMMAND_CLASS_THERMOSTAT_SETBACK	Thermostat Setback	0x47	1
COMMAND_CLASS_CRC_16_ENCAP	CRC16 Encapsulation	0x56	1
COMMAND_CLASS_SENSOR_BINARY_V2	Sensor Binary V2	0x30	2
COMMAND_CLASS_THERMOSTAT_FAN_STATE_V2	Thermostat Fan State V2	0x45	2
COMMAND_CLASS_THERMOSTAT_MODE_V3	Thermostat Mode V3	0x40	3
COMMAND_CLASS_THERMOSTAT_SETPOINT_V3	Thermostat Setpoint V3	0x43	3
COMMAND_CLASS_WAKE_UP_V2	Wake Up V2	0x84	2
COMMAND_CLASS_ZWAVEPLUS_INFO_V2	Z-Wave Plus Info V2	0x5E	2
COMMAND_CLASS_BARRIER_OPERATOR	Barrier Operator	0x66	1
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5	Firmware Update Meta-Data V5	0x7A	5
COMMAND_CLASS_MULTI_CHANNEL_V4	Multi-Channel V4	0x60	4
COMMAND_CLASS_SWITCH_MULTILEVEL_V4	Switch Multilevel V4	0x26	4
COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3	Association Group Information V3	0x59	3
COMMAND_CLASS_NOTIFICATION_V8	Notification V8	0x71	8
COMMAND_CLASS_BASIC_V2	Basic V2	0x20	2
COMMAND_CLASS_DOOR_LOCK_LOGGING	Door Lock Logging	0x4C	1
COMMAND_CLASS_METER_V5	Meter V5	0x32	5
COMMAND_CLASS_SENSOR_MULTILEVEL_V11	Sensor Multilevel V11	0x31	11
COMMAND_CLASS_VERSION_V3	Version V3	0x86	3
COMMAND_CLASS_CENTRAL_SCENE_V3	Central Scene V3	0x5B	3
COMMAND_CLASS_WINDOW_COVERING	Window Covering	0x6A	1
COMMAND_CLASS_SECURITY_2	Security S2	0x9F	1
COMMAND_CLASS_METER_PULSE	Meter Pulse	0x35	1
COMMAND_CLASS_SCENE_ACTIVATION	Scene Activation	0x2B	1
COMMAND_CLASS_SCENE_CONTROLLER_CONF	Scene Controller Conf	0x2D	1
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2	Manufacturer Specific V2	0x72	2
COMMAND_CLASS_SCHEDULE_ENTRY_LOCK_V3	Schedule Entry Lock V3	0x4E	3

S2 Classes

S2_UNAUTHENTICATED, S2_AUTHENTICATED, S2_ACCESS_CONTROL

Documents

Features

Association Groups

Texts

ID	Description	Value
8	Where to find S2 DSK on product	To be conform with the Z-Wave Security S2 standard, the AutoPilot™ has a label with DSK code, DSK pin and QR code printed on the rear side.
11	Controller SmartStart Inclusion	SmartStart is a new way to add devices into Z-Wave using a QR Code provided with S2 authentication. The user scans the QR code whose information goes directly in a provisioning list. When powered up, the SmartStart Device will announce to be ready to be added. In case the S2 key is in the provisioning list the controller will automatically add this new device without any further user interaction. Clicking on the tab Scan QR code will open a form (Figure 4.5.3) where you can manually add a 40-digit Z-Wave device DSK or download the mobile APP instead to Scan Z-Wave SmartStart QR-Codes directly.
24	Controller Classic Exclusion	Remove Mode This function is used to remove an available and functioning device from the network. After removing the device, it can be added in another Z-Wave network again. To remove a device, it is not necessary that the device is part of the network. Start Remove process It doesn’t matter if you navigate through the tab Add new Z-Wave Device and identify it automatically Menu (Figure 4.5.2) or the vendor-device-specific way (Figure 4.5.6), in both cases a press on the button Remove Device will start the remove process (Figure 4.5.17)
10	Controller Replication	Copy Network Information: In order to initiate a Z-Wave controller replication (copy Z-Wave network information and transfer them from the main controller to a secondary controller), start the Add Mode on your main controller and then initiate the Learn Mode of the already included secondary controller. This will transfer the network relevant information manually.
3	Controller Learn Mode	Role in Network Gives you information about the role of the controller, its Home ID and the assigned node ID. Usually a controller has the Primary role as master device in the Z-Wave network. But it is possible to add it to another Z-Wave network by activating the Learn Mode button Start Network Learn Mode. After the controller was successfully added to the other network, the controller role will become Secondary. Note a controller with secondary role has limited configuration possibilities in the network.
25	Controller Provisioning List	If a device was registered by the SmartStart functionality e.g. Scan QR Code (Section 4.5.1), it is listed in this view. The Reload button can be used to refresh the list manually. Figure 4.5.31 for example shows the list of device keys which are already registered in the system. One of them is only registered and the other one is registered and in use ( added). Used means in this context that the corresponding device was added by scanning its QR Code or entering its DSK and then powered up in proximity of the controller and got added automatically. Or in other words: It was added via Z-Wave SmartStart. A click on opens a popup (Figure 4.5.32) that gives you more information about the device. Furthermore, you can change the device name and assign it to a room although it is not added to the network yet. Some information will only be available after the device was successfully added. will forward you to the manual node configuration (Section 4.5.1). Clicking on will remove the Figure 4.5.29: Network status Figure 4.5.30: Learn mode progress • AIP-CDS-007-ZIP_GWA.docx CONFIDENTIAL AIP-CDS-007-ZIP_GWA.docx Page 46 of 60 registration entry of the device but will not automatically remove it from the network. Therefore, the device also needs to be removed from the network directly via the Devices menu (Section 4.5.1).
5	Factory Reset Procedure	This menu under Menu > Management > Factory Default offers you two different ways to reset your AutoPilotTM: • Controller Factory Default This turns just the controller back into factory reset. All connections to added devices, their configurations and all Z-Wave specific settings are lost. This function must be handled with extreme care. An additional dialog requires to explicitly confirm the function. All other settings which are not depending on the Controller or its Z-Wave configuration are not influenced. If this controller is the primary controller for your network, resetting it will result in the nodes in your network being orphaned and it will be necessary after the reset to exclude and re- include all of the nodes in the network. If this controller is being used as a secondary controller in the network, use this procedure to reset this controller only in the event that the network primary controller is missing or otherwise inoperable. • Reset to Factory Default This function resets the AutoPilotTM back to its factory state, which means: o Controllerwillberesettoitsfactorydefault→Allconnectionstoaddeddevices, their configurations and all Z-Wave specific settings are lost. o Alluploadedimages/iconswillbedeleted o Allcustominstalledappsandallotherappconfigurationswillberemoved o Allothersettingswillbesetbacktodefault Note: After the controller of the AutoPilotTM was reset in both cases the Z-Wave devices which were added to this controller before will NOT be removed automatically. They still try to communicate with the known controller. To make them ready for a new network insertion just remove them before the add process first or do a manually factory reset of the device (please refer to its manual). influenced. • Reset to Factory Default This function resets the AutoPilot™ back to its factory state, which means: o Controller will be reset to its factory default → All connections to added devices, their configurations and all Z-Wave specific settings are lost. o All uploaded images/icons will be deleted o All custom installed apps and all other app configurations will be removed o All other settings will be set back to default
9	Capability Rediscovery	The Force Interview button below allows you to reset incomplete device interviews. The controller will then try to repeat the whole interview. This action only makes sense if the device was already added with successful interviewed security command class (it doesn’t matter if S0 or S2). If not, it is recommended to remove and add the device again. The Call for NIF button gives you the possibility to send a Note Information Frame to the device which is similar to a simple status request. Note that battery driven devices need to be woken up manually if a quick response is desired. Otherwise the device will react on this NIF on its next wakeup (depending on the controller configuration 1h - 24h).
23	Controller Classic Inclusion	Clicking on the tab: Add new Z-Wave Device and identify automatically (Figure 4.5.2) will directly guide you to the Z-Wave Add / Remove section (Figure 4.5.4) but offers you no user guidance how to add or remove the device. For that way it is recommended to have a look at the device manual too. Since most Z-Wave devices have one Z-Wave action button where a single or triple click will do the add process, the additional information shown in the Z-Wave device specific Add / Remove view (Figure 4.5.6) is only needed for some devices with exotic add mode options. Whether you decide to choose this way or to add a device by automatically identification (Figure 4.5.4), the procedure will be the same. Please refer to the devices manual on how to do an add process. In the case the device cannot be added as expected, please remove the device first. More than 90 % of all add process problems are caused by devices which still belong to a network. In that case they cannot being added again. Skip this step, if you are sure that the device is new and in factory default state. To start the Add process click on the green Start button (Figure 4.5.7).

Supported / Controlled Meter Types

Supports NWI

Yes

Supports Explorer Frames

Yes

Supports SmartStart

Yes

Radio Range Z-Wave (m)
