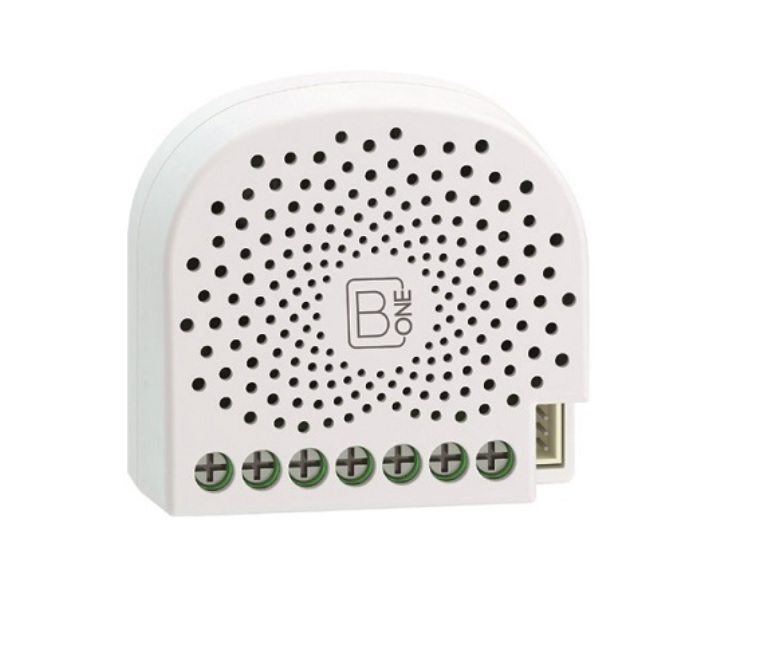

B.One Dual Relay

Short Description

Z-Wave Dual Relay Switch

Long Description

Dual Relay is a Z-Wave power binary switch device based on Z-Wave enhanced 232 slave library V6.51.10. You can use it to control your home light or bulbs on/off. It can connect to 2 external manual switches to control the load ON/OFF independently. Its surface has a pin socket, which can be used for connecting to the touch panel, so you can also use the touch panel to control the Dual Relay Switch. It can also be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. It is a security Z-Wave plus device, so a security enabled controller is needed for take full advantage of all functionally for the Relay Switch. It also supports the Over The Air (OTA) feature for the product’s firmware upgrade. As soon as Dual Relay is removed from a Z-Wave network it will be restored into default factory setting.

Brand

B.One

Product Identifier

B1DR01-ZW-IN

Product Line

Z-Wave Product Line

OEM Version

HW: 140 FW: 12.00:01.02

Hardware Platform

ZM5101

Z-Wave Version

6.51.09

Library Type

SLAVE_ENHANCED_232

Device Type

On/Off Power Switch

Role Type

ROLE_TYPE_SLAVE_ALWAYS_ON

Manufacturer ID

0x0311

Product Type ID

0x0903

Product ID

0x008C

User Icon

0x0700

Installer Icon

0x0700

Frequency Plans

IN: 865.20MHz

Categories

All Lighting Devices, On/Off Switches/Devices

Countries / Regions

India

Supported Command Classes

Controlled Command Classes

Documents

Features

Association Groups

Configuration Parameters

Parameter Number

Name

Description

Format

Size

Min Value

Max Value

Default Value

Parameter Values

To set which notification would be sent to the associated devices (Group 1)

To set which notification would be sent to the associated devices (Group 1) when the state of Nano Dimmer’s load is changed.

From	To	Description
0	0	Send Nothing
1	1	Send Hail CC
2	2	Send Basic CC report
3	3	Send Hail CC when using the manual switch to change the load state.

To set which notification would be sent to the associated nodes in association group 3

To set which notification would be sent to the associated nodes in association Group 3 when using the external switch 1 to switch the loads.

From	To	Description
0	0	Send Nothing
1	1	Send Basic Set CC

To set which notification would be sent to the associated nodes in association group 4

To set which notification would be sent to the associated nodes in association Group 4 when using the external switch 2 to switch the loads.

From	To	Description
0	0	Send Nothing
1	1	Send Basic Set CC

Configure the state of LED when it is in 3 modes

Configure the state of LED when it is in 3 modes (Energy mode, Momentary indicate mode, Night light mode)

From	To	Description
0	0	Energy mode. The LED will follow the status (on/off).
1	1	Momentary indicate mode. When the state of Switch’s load changed, the LED will follow the status (on/off) of its load, but the LED will turn off after 5 seconds if there is no any switch action.
2	2	Night light mode. The LED will remain ON state.

Set the ON/OFF time of the LED when it is in Night light mode.

301991936

From	To	Description
16777216	16777276	The hour time of ON
0	60	The minute time of OFF
256	316	The hour time of OFF
65536	65596	The minute time of ON

Set appointment 1

Set the ON time of output load.

8327680

From	To	Description
0	60	The minute value of ON time
256	316	The hour value of ON time
65536	65543	The day value (Mon to Sun)
16777215	16777215	Disable the setting.
16777216	16777216	Enable the setting.

Set appointment 2

Set the OFF time of output load.

8327680

From	To	Description
0	60	The minute value of ON time
256	316	The hour value of ON time
65536	65543	The day value (Mon to Sun)
16777215	16777215	Disable the setting.
16777216	16777216	Enable the setting.

120

Configure the external switch mode for S1.

From	To	Description
0	0	Enter automatic identification mode
1	1	2-state switch mode
2	2	3 way switch mode
3	3	Momentary push button mode

121

Configure the external switch mode for S2.

From	To	Description
0	0	Enter automatic identification mode
1	1	2-state switch mode
2	2	3 way switch mode
3	3	Momentary push button mode

Overheat protection.

Output Load will be turned off automatically after 30 seconds and if the temperature of product inside exceeds 100 ℃.

From	To	Description
0	0	Disable
1	1	Enable

252

Lock/unlock configuration parameters

Lock/unlock configuration parameters.

From	To	Description
0	0	Unlock
1	1	Lock

122

Set the control destination for external switch S1

From	To	Description
1	1	control the output loads of itself.
2	2	control the other nodes
3	3	control the output loads of itself and other nodes.

123

Set the control destination for external switch S2

From	To	Description
1	1	control the output loads of itself.
2	2	control the other nodes.
3	3	control the output loads of itself and other nodes.

255

Reset the Dual Relay Switch

Reset the Dual Relay Switch to factory default.

From	To	Description
1431655765	1431655765	Reset to factory default setting and removed from the Z-Wave network
0	0	Reset all configuration parameters to factory default setting
