Product Recognition | |
|---|
Certification Number | ZC10-18025994 |
|---|

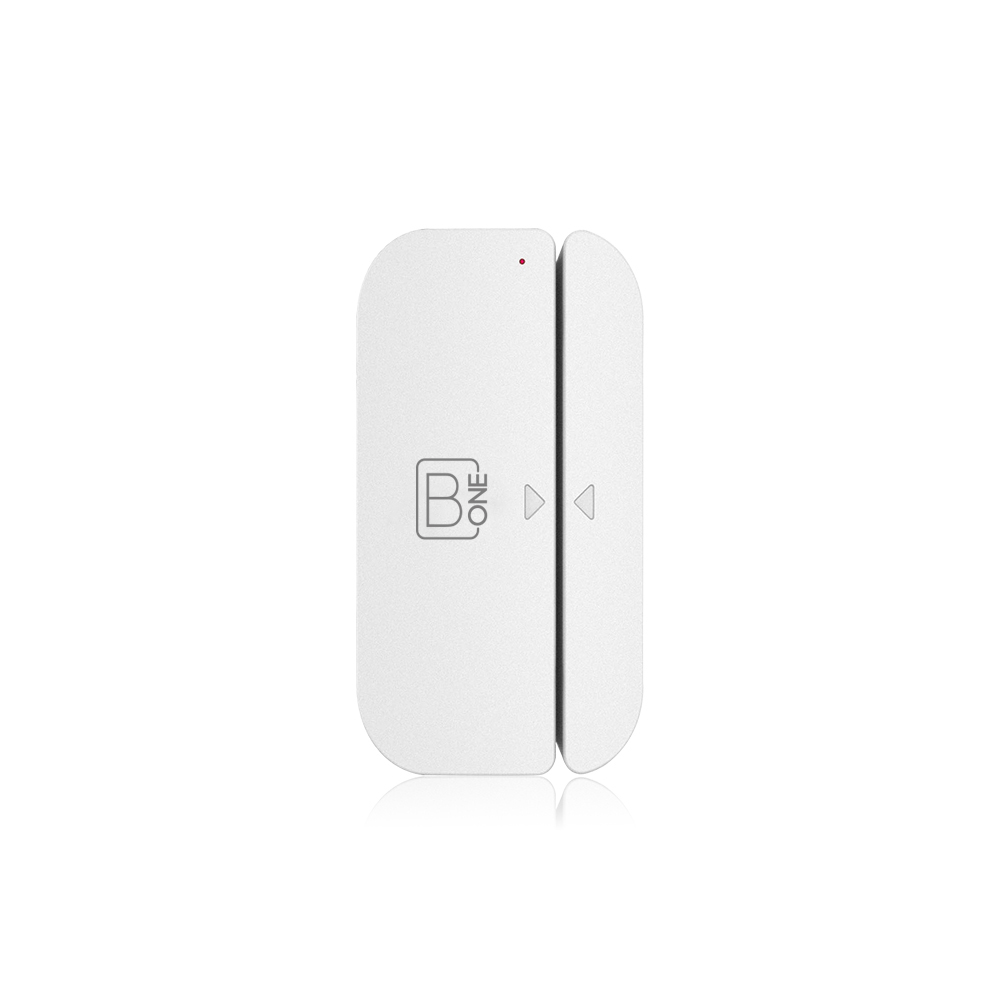

Name | B.One Smart Sensor |
|---|
Short Description | B.One Smart Sensor is a wireless reed sensor powered by AAA battery. It is used for detecting the opening or closing of doors, windows. |
|---|
Long Description | B.One Smart Sensor is a wireless reed sensor powered by AAA battery. It is used for detecting the opening or closing of doors, windows. It can communicate with an associated Z-Wave device, such as Siren, Smart Switch, etc. |
|---|
Brand | B.One |
|---|
Product Identifier | B1SS02-ZW-AU |
|---|
OEM Version | HW: 1 FW: 1.04 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.08 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x0311 |
|---|
Product Type ID | 0x0001 |
|---|
Product ID | 0x0201 |
|---|
User Icon | 0x0C00 |
|---|
Installer Icon | 0x0C00 |
|---|
Frequency Plans | ANZ: 919.80MHz, 921.40MHz |
|---|
Categories | Sensors, Security Add-Ons |
|---|
Countries / Regions | Australia |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_NOTIFICATION_V5 | Notification V5 | 0x71 | 5 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 | Firmware Update Meta-Data V2 | 0x7A | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Battery Quantity | | Supported Notification Types | Value |
|---|
Access Control | Home Security |
| Battery Type | | Sensors | Value |
|---|
Open/Closed (Binary) |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Door/Window Sensor will send notification report and battery report to the associated nodes. | 2 | 5 | 0 | Sensor will send Basic Set to the associated nodes when the sensor body and magnet removed or combined. |
|
|---|
Configuration Parameters | |
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | 1. Insert the AAA battery.
2. Set the Z-Wave network main controller into learning mode.
3. Triple or single short press the Z-button.
4. If the add for inclusion is successful, the LED will blink less than 5 seconds and then keep on 3 seconds. Otherwise, the LED will blink 5 seconds and then turn off, in which case you need to repeat the process from step 2. | 2 | Exclusion | 1. Insert the AAA battery.
2. Set the Z-Wave network main controller into learning mode.
3. Triple clicking the Z-button.
4. If the remove for exclusion, the LED will turn off within 1 second. Otherwise, the LED will blink 5 seconds and then turn off, in which case you need to repeat the process from step 2. | 5 | Factory Reset | 1. Insert the AAA battery.
2. Pressing and holding the Z button for more than 20 seconds,
3. Led will keep on until the Z-Button is released, and it will reset to factory default when the button is released.
Using this procedure only in the event that the network primary controller is missing or otherwise inoperable. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Access Control | (Refer to parameters): State idle | Home Security | (Refer to parameters): State idle |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
General purpose |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
