Base – Z-Wave Alliance Product Catalog

Back to Listing

Product Recognition

Certification Number

ZC14-23030209

Name

Base

Short Description

The ADT Base is the brains of the security system, providing connectivity for sensors, detectors and Z-Wave™ devices with ADT cloud interface via Wi-Fi and cellular network.

Long Description

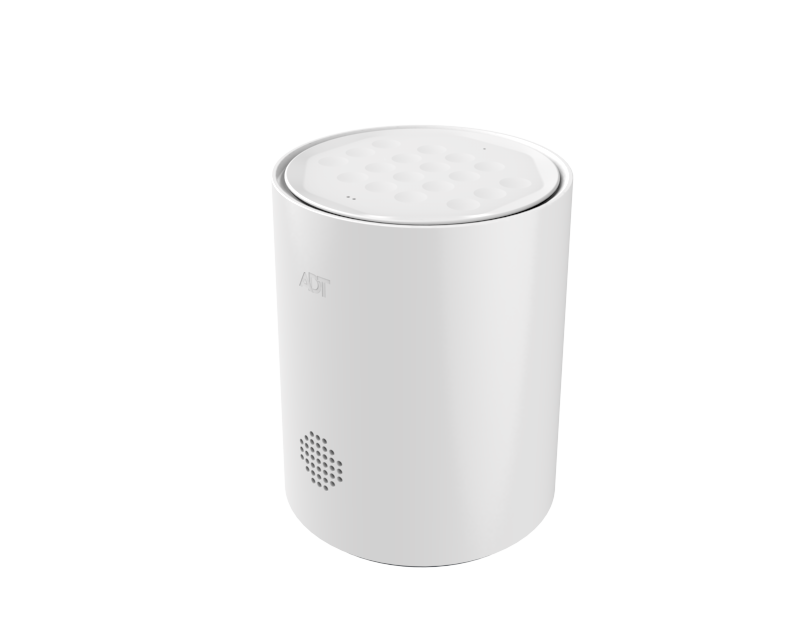

The ADT Base is the brains of the security system, providing connectivity for sensors, detectors and Z-Wave™ devices with ADT cloud interface via Wi-Fi and cellular network. It is intelligent and responsive. It features an integrated keypad that can be used control your system and an LED halo that lets you quickly see the system's status by using different colors, brightness and blink rate. The built-in proximity sensor senses users within a 3ft range and turns on automatically. It is equipped with 24-hour battery backup to help you stay protected 24/7. You can also control your system via the ADT+ app. Use the app to arm or disarm your system, trigger the panic button, and control your Z-Wave™ devices at any time.

Brand

ADT

Product Identifier

S501R0-01

Product Line

ADT +

OEM Version

HW: 01 FW: 07.18:07.18

Hardware Platform

EFR32ZG23A

Z-Wave Version

7.18.2

Library Type

CONTROLLER_BRIDGE

Device Type

Gateway DT

Role Type

ROLE_TYPE_CONTROLLER_CENTRAL_STATIC

Manufacturer ID

0x0224

Product Type ID

0x0001

Product ID

0x0005

User Icon

0x0500

Installer Icon

0x0500

Frequency Plans

US_LR: 912.00MHz, 920.00MHz, US: 916.00MHz, 908.40MHz

Categories

Security Systems

Countries / Regions

United States of America

Supported Command Classes

Controlled Command Classes

S2 Classes

S2_ACCESS_CONTROL, S2_AUTHENTICATED, S2_UNAUTHENTICATED

Documents

Features

Association Groups

Texts

ID	Description	Value
8	Where to find S2 DSK on product	Page 22 of the product manual: "The DSK (Device Specific Key) of your base can be accessed by going to Settings > Devices > Going to your ADT Base > Product Information. The full DSK will be displayed."
23	Controller Classic Inclusion	Adding a device: To add a Z-Wave device, go to Settings > Devices > Click on the add button and then select Zwave device. You may then select if you would like to add a device using General Inclusion or Smart Start. Not all Z-Wave devices support SmartStart; however, all Z-Wave devices can still be added using General Inclusion. To continue, select “General Inclusion.” The ADT Base will then go into inclusion mode and, you will be prompted to follow your manufacturer’s instructions to put the device into inclusion mode. Once the device is added you will hear a confirmation beep from your ADT Base, and you will be presented with a screen to name the device and to choose an icon.
11	Controller SmartStart Inclusion	Adding a device: To add a Z-Wave device, go to Settings > Devices > Click on the add button and then select Zwave device. You may then select if you would like to add a device using General Inclusion or Smart Start. Z-Wave SmartStart enabled products can be added into a Z-Wave network by scanning the Z-Wave QR Code present on the product with a controller providing SmartStart inclusion. No further action is required and the SmartStart product will be added automatically within 10 minutes of being switched on in the network vicinity. To access the SmartStart Provisioning list, continue by selecting “Smart Start.” From there you can add a device by selecting “+” and then either selecting Manually or Scan QR Code and follow the prompts. When manually entering the DSK, you may also select a bootstrapping mode. For devices that support Z-Wave Long Range, you can use the long-range option to ensure the device is included using Z-Wave Long Range. Once a SmartStart device has been successfully added its DSK (Device Specific Key) and status will show up on the SmartStart Provisioning screen. To remove a SmartStart provisioned device from the screen, swipe it left and you will be asked to Confirm or Cancel the request for SmartStart.
25	Controller Provisioning List	Z-Wave SmartStart enabled products can be added into a Z-Wave network by scanning the Z-Wave QR Code present on the product with a controller providing SmartStart inclusion. No further action is required and the SmartStart product will be added automatically within 10 minutes of being switched on in the network vicinity. To access the SmartStart Provisioning list, continue by selecting “Smart Start.” From there you can add a device by selecting “+” and then either selecting Manually or Scan QR Code and follow the prompts. When manually entering the DSK, you may also select a bootstrapping mode. For devices that support Z-Wave Long Range, you can use the long-range option to ensure the device is included using Z-Wave Long Range. Once a SmartStart device has been successfully added its DSK (Device Specific Key) and status will show up on the SmartStart Provisioning screen. To remove a SmartStart provisioned device from the screen, swipe it left and you will be asked to Confirm or Cancel the request for SmartStart.
3	Controller Learn Mode	Adding your ADT Base to another network: If you would like to add the ADT Base into another Z-Wave network, you must first delete all Z-Wave devices from the ADT Base before proceeding. Once all devices have been deleted, follow the instructions on the other controller to put it into add mode. Once the other Z-Wave controller is in add mode, you can place the ADT Base into learn mode by navigating to Settings > Devices > Choosing your ADT Base > Opening Advanced Options. From this menu, select Z-Wave Learn Mode to put the ADT Base into learn mode. Follow the instructions on the other controller to complete the add process. Once the add is complete, the ADT Base will request a copy of the other Z-Wave network configuration, and the network devices will appear on the ADT+ iOS, Android, and web applications.
24	Controller Classic Exclusion	Removing a device: To remove a device, go to Settings > Devices and choose your device. You can then remove it by clicking remove and following your manufacturer’s directions to put the device into exclusion mode. If a device is not responding, you may fail the remove and then be prompted to remove the failed device. This will remove the device from the network without it being present. If you would like to add your device to another system, then you will need to reset the device per the manufacturer’s instructions. You can use the general exclusion for resetting devices as well under Settings > Devices > Go to your ADT Base > Select advanced settings, and then click General Exclusion.
10	Controller Replication	Copying your Z-Wave network information to another controller: If you would like to copy your network information to another controller, you must add the controller to the Z-Wave network using the normal device add process. Once the controller has been successfully added to the Z-Wave network, all network configurations will be automatically transferred to the new controller.
5	Factory Reset Procedure	Resetting your Z-Wave network: If this controller is the primary controller for your network, resetting it will result in the nodes in your network being orphaned and it will be necessary after the reset to exclude and re-include all of the nodes in the network. If this controller is being used as a secondary controller in the network, use this procedure to reset this controller only in the event that the network primary controller is missing or otherwise inoperable. In order to factory reset your Z-Wave network, go to Settings > Devices > Choose your ADT Base > Open Advanced Settings and then select Z-Wave Reset Controller. After a few seconds, the ADT Base will beep to indicate that your Z-Wave network has been reset. Any devices which were part of your Z-Wave network will need to be reset before they can be re-added. Use the Z-Wave General Exclusion menu under Settings > Devices > Choose your ADT Base > Open Advanced Settings to do this.

Supports NWI

Yes

Supports Explorer Frames

Yes

Supports SmartStart

Yes

Radio Range Z-Wave (m)

Radio Range Z-Wave LR (m)

400
