Name | Bellbox |
|---|

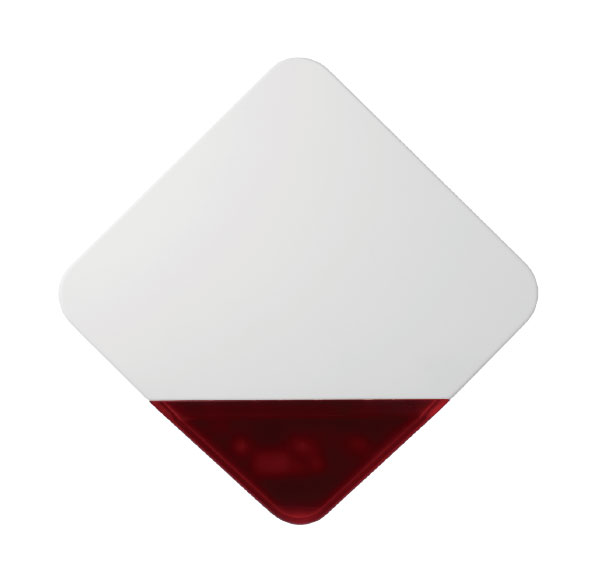

Short Description | BX-35ZW bell box is a battery-operated wireless outdoor siren generating a loud 105 decibel siren sound and strobe lights during an alarm to provide visible and audible alerts. Encased in a durable, IPX5 waterproof elegant design, easy-to-install BX-35ZW is a premium choice for the modern smart home. |
|---|
Long Description | BX-35ZW bell box is a battery-operated wireless outdoor siren generating a loud 105 decibel siren sound and strobe lights during an alarm to provide visible and audible alerts. Encased in a durable, IPX5 waterproof elegant design, easy-to-install BX-35ZW is a premium choice for the modern smart home.
The BX-35ZW is energy saving and environmentally conscious, requiring only two Alkaline batteries, yet still has a long battery life of up to 3.5 years. The BX-35ZW generates unique alarm sounds for fire and burglary to inform users of the type of danger at hand. It provides programmable siren duration of 3, 5, and 10 minutes.
In addition to producing audible and visible warnings in the case of emergency, the BX-35ZW emits beep notifications for arming and disarming of a security system, and of its low battery status. It’s tamper-deterrent feature protects against unauthorized removal and sabotage. The BX-35ZW is compatible with others’ Z-Wave systems. |
|---|
Brand | Climax Technology |
|---|
Product Identifier | BX-35ZW |
|---|
OEM Version | HW: 255 FW: 1.04 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.61.00 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Siren |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
|---|
Manufacturer ID | 0x018E |
|---|
Product Type ID | 0x0002 |
|---|
Product ID | 0x0011 |
|---|
User Icon | 0x0F00 |
|---|
Installer Icon | 0x0F00 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Security Systems |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_SCENE_ACTIVATION | Scene Activation | 0x2B | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 | Firmware Update Meta-Data V2 | 0x7A | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_NOTIFICATION_V4 | Notification V4 | 0x71 | 4 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Outdoor Use | | Communications Protocol | | Battery Quantity | | Battery Type | | Color | | Firmware Updatable | Value |
|---|
Updatable by Professional/Technician |
| Supported Notification Types | Value |
|---|
Home Security | Power Management |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
2 | 5 | 0 | Group 2 for “Tamp rep” (maximum node: 5):
Notification CC,V4 (COMMAND_CLASS_NOTIFICATION)
When Tamper Open, Group 2 send Notification
(Type:07,Event:03), Tamper Close send Notification
(Type:07,Event:00,Parameter:03)
| 1 | 1 | 0 | Group 1 for “LifeLine” (maximum node:1):
Battery CC (COMMAND_CLASS_BATTERY)
Notification CC,V4 (COMMAND_CLASS_NOTIFICATION)
SwitchBinary CC, V1 (COMMAND_CLASS_SWITCH_BINARY)
Device Reset Locally CC
| 3 | 5 | 0 | Group 3 for “AC rep” (maximum node: 5):
Notification CC,V4 (COMMAND_CLASS_NOTIFICATION)
When AC Fail send Notification (Type:08,Event:02),
When AC Restore send Notification (Type:08, Event:03)
|
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
3 | Comfort LED | Comfort LED flash every sec, 0~250sec, each unit is 10 sec. 0x00~0x19 (disable, 10sec,…,250sec) default:0x00 | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 25 | 0 sec to 250 sec, the unit is 10 sec |
| 4 | Tamper | Tamper Enable/Disable 0x00:disable, 0x01: enable default 0x01 | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 1 | 0:disable, 1: enable |
| 1 | Alarm Length | Maximum siren length. 0x01~0x0A (1~10 min), default 0x0A. | 0 | 1 | 0 | 0 | 10 | From | To | Description |
|---|
1 | 10 | 1 minute to 10 minutes |
| 2 | Alarm LED Flash | Upon siren trigger, LED flash enable/disable. 0x00: disable, 0x01: enable; default 0x01 | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 1 | 0:disable, 1: enable |
|
|
|---|
Texts | ID | Description | Value |
|---|
2 | Exclusion | The Bellbox must be removed from existing Z-Wave network before being included into another. There are two methods available to exclude a device.
-Put the Z-Wave gateway or control panel into Exclusion mode (please
refer to the Z-Wave gateway or control panel manual).
-Within 1.5 seconds, press the Function Button 3 times and the Bellbox
will be removed from the Z-Wave network. | 1 | Inclusion | This product can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufactures and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.
-Insert the two 1.5V D-Cell alkaline batteries into the battery
compartment connecting the correct polarity as shown on the
battery compartment lid.The Bellbox will emit a 2-tone beep.
-Put the Z-Wave gateway or control panel into Inclusion mode (please
refer to the Z-Wave gateway or control panel manual).
-Within 1.5 seconds, press the Function Button 3 times.
-Refer to the operation manual of the Z-Wave Gateway or Control
Panel to complete the adding process.
-If the sensor has already been added (included) into another Z-Wave
Gateway/Control Panel, or if the sensor is unable to be added into the
current Z-Wave Gateway/Control Panel, please exclude it first (see
Removing Device) before attempting to include it into the current Z-
Wave Gateway/Control Panel. | 5 | Factory Reset | (Only use factory reset when network Control Panel/Gateway is missing or inoperable).
-Press and hold the Function button of the Bellbox for 10 seconds to
factory reset with all LED flashes once.
-Factory resetting the Bellbox will restore it to factory default
settings (excluded from the Z-Wave network). The Z-Wave gateway or
control panel will still keep its Z-Wave settings. Please refer to the
gateway or control panel manual on how to remove the Bellbox’s Z-
Wave settings. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Home Security | (Refer to parameters): State idle | Power Management | (Refer to parameters): State idle |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Is Flirs | Yes |
|---|
