Product Recognition
Certification Number	ZC10-15120006
Name	Bulb

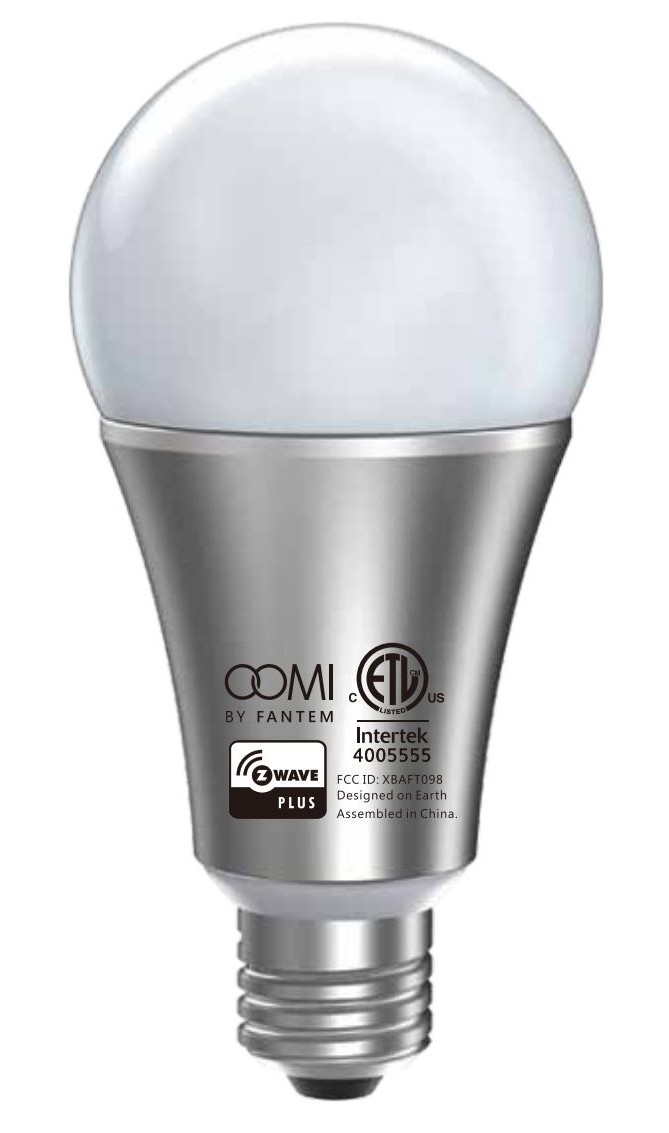

Short Description	Oomi Bulb is a low-cost Z-Wave LED module which allows control (on/off/dim) with the use of Z-Wave.
Long Description	Oomi Bulb is a low-cost Z-Wave LED module which allows control (on/off/dim) with the use of Z-Wave. It’s a bulb has a Smart RGB LED, which can be used to add colour to your home. The bulb has 5 main colour channels available for you to adjust: Red, Green, Blue, Warm White and Cold White. You can configure its colour according to your favour. The Bulb is also a security Z-wave device and supports the Over The Air (OTA) feature for the product’s firmware upgrade.
Brand	Oomi
Product Identifier	FT098-A52
OEM Version	HW: 62 FW: 1.03
Hardware Platform	ZM5101
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	Light Dimmer Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0086
Product Type ID	0x0103
Product ID	0x0062
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Lighting Devices, Dimming Lighting Devices
Countries / Regions	United States of America
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_HAIL Hail 0x82 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Oomi Bulb manual.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 The association group 1 is the Z-Wave Lifeline group. The Hail CC and Basic Report CC (configurable) can be sent to the associated nodes in association group 1. 2 5 0 In this group, the Basic Set, Switch Binary Set, Switch Multilevel Start Level Change, Switch Multilevel Stop Level Change, Switch Multilevel Set, Scene Activation Set commands would be sent to the associated nodes in association group 2 when the Bulb receives the Basic Set, Switch Binary Set, Switch Multilevel Start Level Change, Switch Multilevel Stop Level Change, Switch Multilevel Set, Scene Activation Set commands from the main controller.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 80 Configure which notification report would be sent when the state of Bulb is changed. To configure which notification report would be sent in association group 1 when the state of Bulb is changed. 0 1 0 0 1 From To Description 0 0 Send Nothing. 1 1 Send Hail CC. 2 2 Send Basic Report CC. 252 Enable/disable to lock the configuration parameters. Enable/disable to lock the configuration parameters. 0 1 0 0 0 From To Description 0 0 Disable. 1 1 Enable. 255 Reset your Bulb Reset your Bulb. 0 4 0 0 0 From To Description 1431655765 1431655765 Reset the Bulb to factory default settings. 1 1 Reset all configuration parameters to default settings.
Texts	ID Description Value 1 Inclusion Turn the primary controller of Z-Wave network into inclusion mode, press the external switch of the Bulb to turn it off and then press the external switch again to turn it on. 2 Exclusion Turn the primary controller of Z-Wave network into exclusion mode, press the external switch of the Bulb to turn off and then press the external switch again to turn on it, repeat the operation 3 times. 5 Factory Reset Turn the controller of Z-Wave network into exclusion mode, press the external switch of the Bulb to turn off and then press the external switch again to turn on it, repeat the operation 3 times. After the Bulb is excluded from network, it will be reset to factory default state. Use this procedure only in the event that your primary network controller is missing or inoperable. 6 Additional Special Features Support ""Over the Air Firmware Updating"" and “Z-Wave Security”. Contain NFC function.
Supports NWI	Yes
Supports Explorer Frames	Yes
